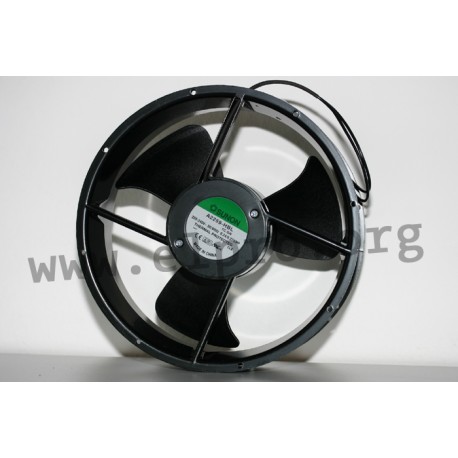

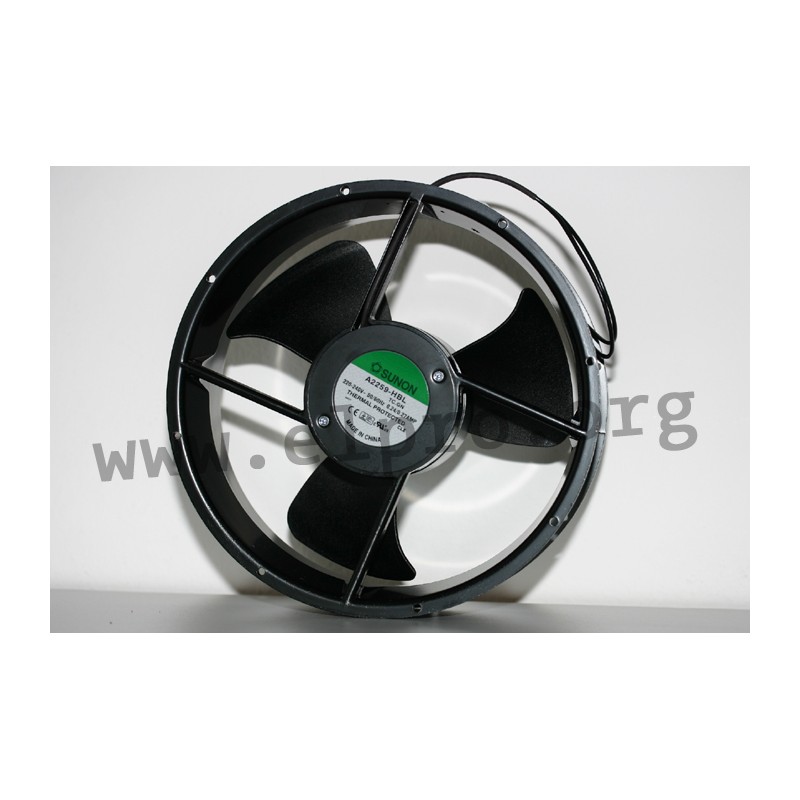

A 2259 HBL-TC

fan 230V AC, series A by Sunon

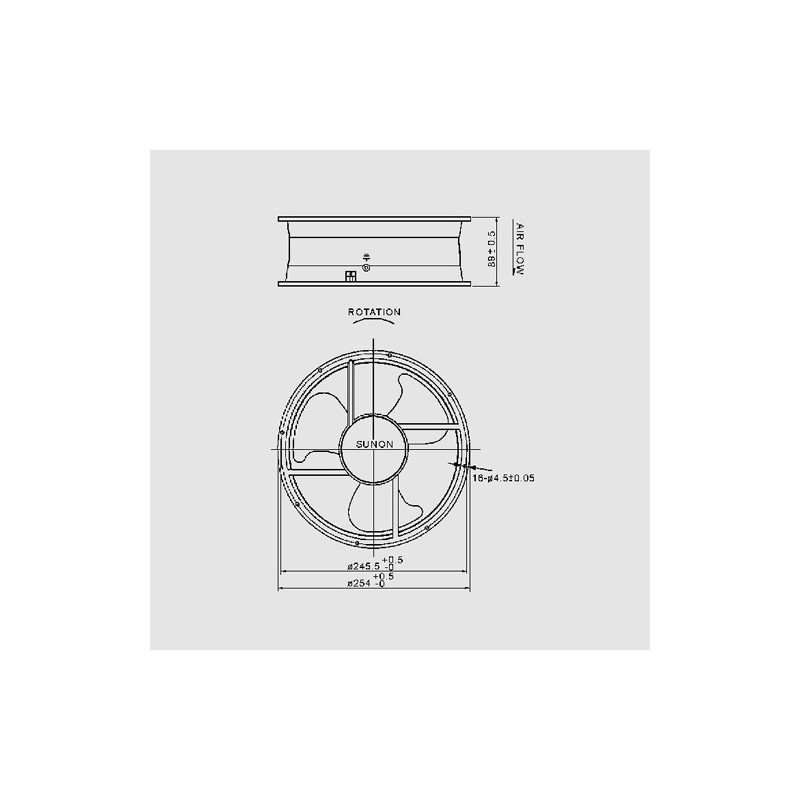

AC fans with a ball bearing system and dimensions of Ø254x89mm by Sunon are designed for efficient cooling in various applications. These fans feature an alveolate motor that is thermal protected, ensuring safe operation even under high temperatures. The frame is made of aluminium spray cast material, providing durability and resistance to corrosion. The impeller is made of filled thermoplastic PBT (UL94V-0), which makes it resistant to heat and flame. The connection type varies depending on the model: A2259HBL-TC has an integrated terminal plug (2.8x0.3mm) while A2259HBT-TC uses AWG20 UL 1015 stripped tinned wires for easy installation. These AC fans have a rated voltage of 220 to 240V AC at 50/60Hz, but can operate within a range of 150 to 250V AC without any issues due to their dielectric strength of up to 1800V AC for one minute at a relative humidity of 65%.

A 2259 HBL-TC

A 2259 HBL-TC

29666 A 2259 HBL-TC A2259-HBL.TC.GN A2259-HBL.TC.GN fan 230V AC, series A by Sunon. AC fans with a ball bearing system and dimensions of Ø254x89mm by Sunon are designed for efficient cooling in various applications. These fans feature an alveolate motor that is thermal protected, ensuring safe operation even under high temperatures. The frame is made of aluminium spray cast material, providing durability and resistance to corrosion. The impeller is made of filled thermoplastic PBT (UL94V-0), which makes it resistant to heat and flame. The connection type varies depending on the model: A2259HBL-TC has an integrated terminal plug (2.8x0.3mm) while A2259HBT-TC uses AWG20 UL 1015 stripped tinned wires for easy installation. These AC fans have a rated voltage of 220 to 240V AC at 50/60Hz, but can operate within a range of 150 to 250V AC without any issues due to their dielectric strength of up to 1800V AC for one minute at a relative humidity of 65%.

Specifications

manufacturer
Manufacturer's name A2259-HBL.TC.GN
Current [A] 0,24
Electric power [W] 56
Noise [dBA] 57

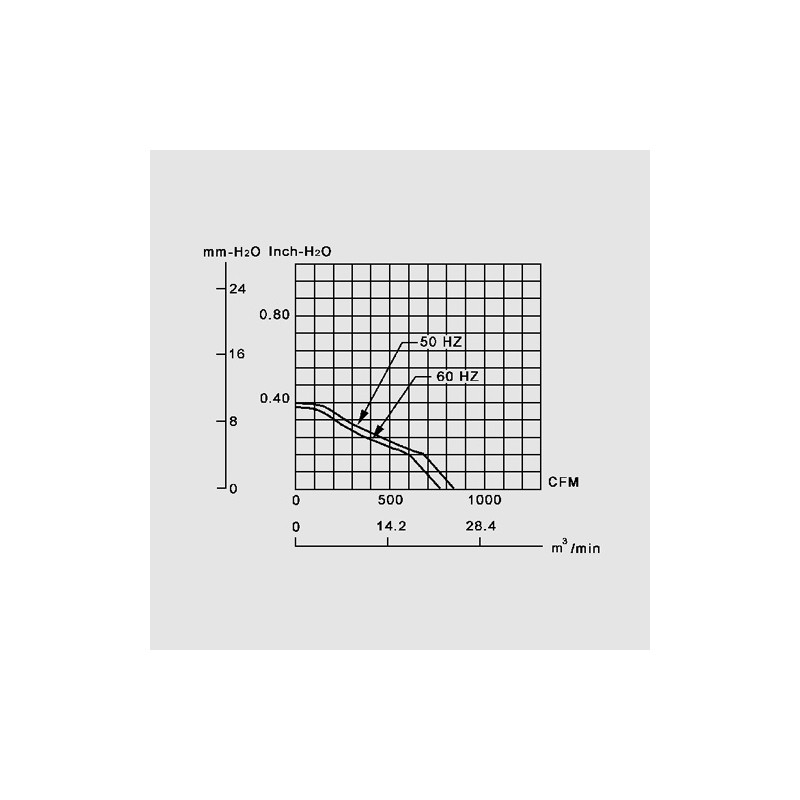

Air performance [m3/h] 1443,81
Number of revolutions [U/min] 2100
Data Sheet

Unit price

107,29 €

Stock: 137
Further delivery:
CW 18/2025
