> Passive elements>Enclosures>Plastic enclosures>Streitbürger plastic encslosures, IP44, ST series>202.00.0-1

Manufacturers

202.00.0-1

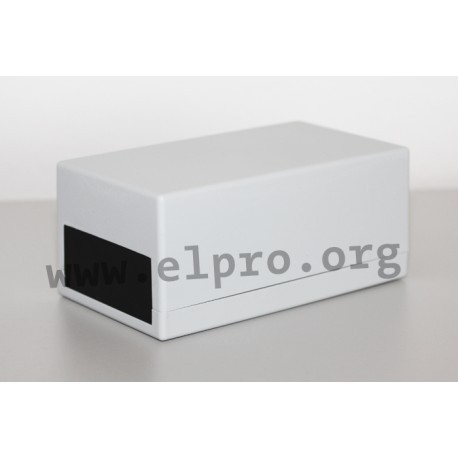

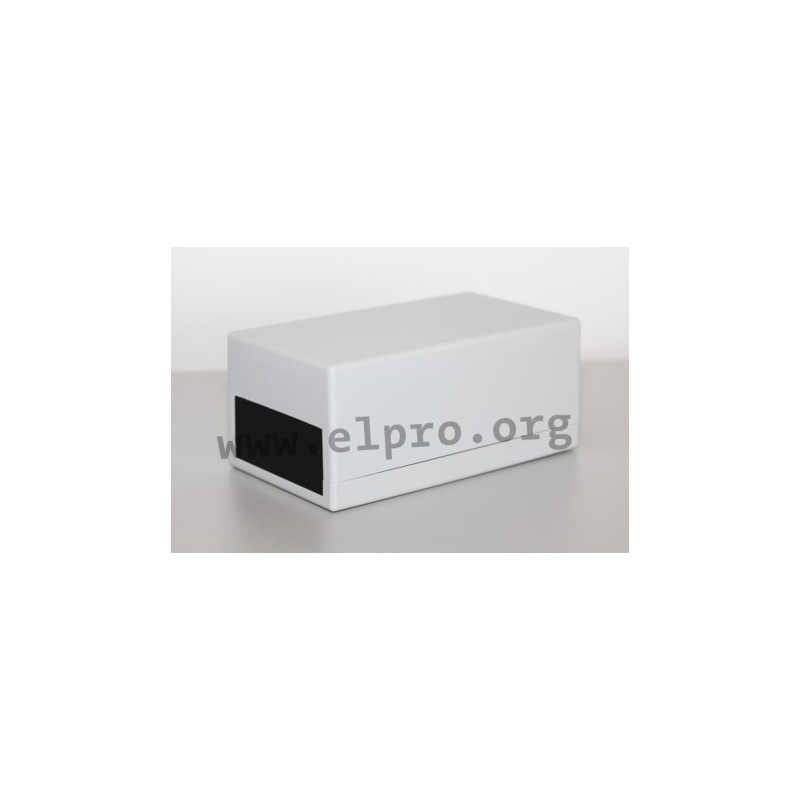

polystyrene enclosures ST by Streibürger

* with removable front panel
* polystyrene enclosure, high-impact proof
* applicable up to 65°C ambient temperature
* suitable for eurocards
* upper and lower part light-grey (similar to RAL 7035), front panel dark grey (similar to RAL 7021), smooth surfaces
* dustproof and waterproof according to IP44
* upper and lower part and front panel with nut and spring sprockets all around
* upper part with brass nut insert for PCB assembly and screw connection of the enclosure
* lower part with brass nut insert for PCB assembly
* easy to assemble version due to removable front plates which can be worked on separately
* high fitting accuracy by built-in stabilisers
* _-1: These enclosures have a differently PCB assembly than the standard enclosures
* by Streitbürger

202.00.0-1

202.00.0-1

43715 202.00.0-1 202.00.0-1 polystyrene enclosures ST by Streibürger. * with removable front panel* polystyrene enclosure, high-impact proof* applicable up to 65°C ambient temperature* suitable for eurocards* upper and lower part light-grey (similar to RAL 7035), front panel dark grey (similar to RAL 7021), smooth surfaces* dustproof and waterproof according to IP44* upper and lower part and front panel with nut and spring sprockets all around* upper part with brass nut insert for PCB assembly and screw connection of the enclosure* lower part with brass nut insert for PCB assembly* easy to assemble version due to removable front plates which can be worked on separately* high fitting accuracy by built-in stabilisers* _-1: These enclosures have a differently PCB assembly than the standard enclosures* by Streitbürger

Specifications

manufacturer
Manufacturer's name 202.00.0-1
External height [mm] 76
Width [mm] 112,4
Length [mm] 198,2
Height [mm] 64,8
Data Sheet

Unit price

13,39 €

Stock: 0
Further delivery:
CW 50/2024
