131.00.0

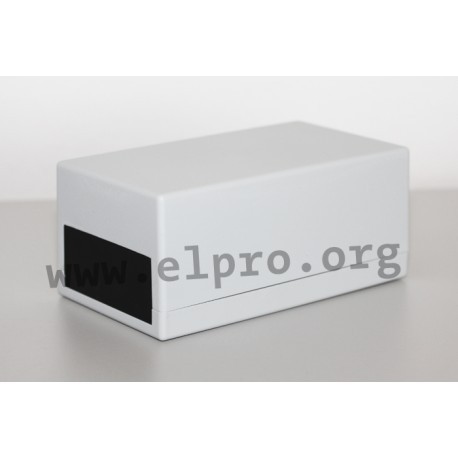

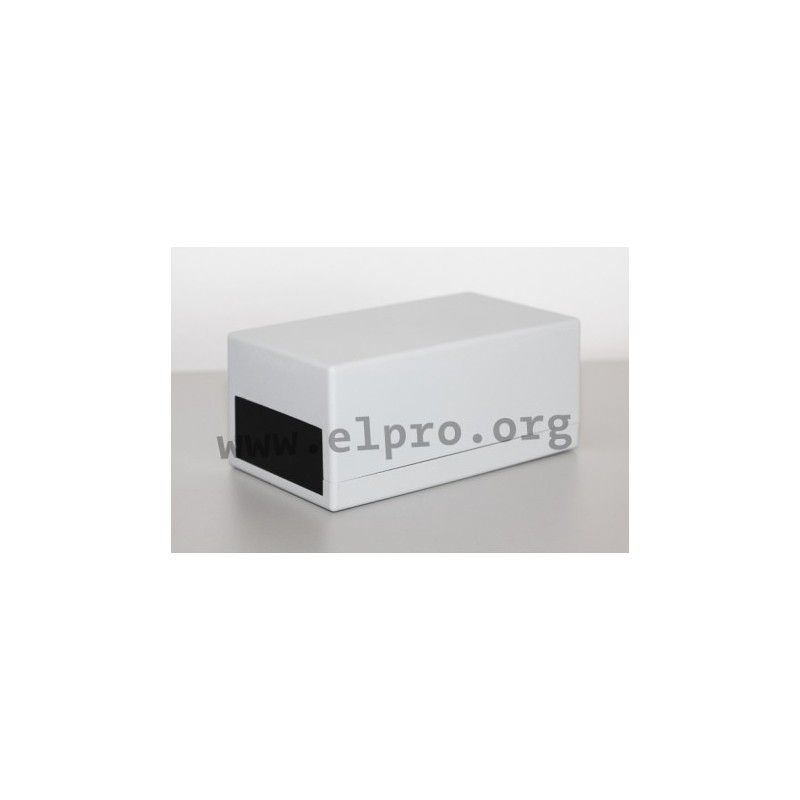

polystyrene enclosures ST by Streitbürger

• with removable front panel
• polystyrene enclosure, high-impact proof
• applicable up to 65°C ambient temperature
• suitable for eurocards
• upper and lower part light-grey (similar to RAL 7035), front panel dark grey (similar to RAL 7021), smooth surfaces
• dustproof and waterproof according to IP44
• upper and lower part and front panel with nut and spring sprockets all around
• upper part with brass nut insert for PCB assembly and screw connection of the enclosure
• lower part with brass nut insert for PCB assembly
• easy to assemble version due to removable front plates which can be worked on separately
• high fitting accuracy by built-in stabilisers
• by Streitbürger


131.00.0

131.00.0

43696 131.00.0 131.00.0 polystyrene enclosures ST by Streitbürger. • with removable front panel• polystyrene enclosure, high-impact proof• applicable up to 65°C ambient temperature• suitable for eurocards• upper and lower part light-grey (similar to RAL 7035), front panel dark grey (similar to RAL 7021), smooth surfaces• dustproof and waterproof according to IP44• upper and lower part and front panel with nut and spring sprockets all around• upper part with brass nut insert for PCB assembly and screw connection of the enclosure• lower part with brass nut insert for PCB assembly• easy to assemble version due to removable front plates which can be worked on separately• high fitting accuracy by built-in stabilisers• by Streitbürger

Specifications

manufacturer
Manufacturer's name 131.00.0
External height [mm] 34,2
Width [mm] 67,5
Length [mm] 131
Height [mm] 22,6
Data Sheet

Unit price

12,59 €

Stock: 12
Further delivery:
CW 50/2024
