SGSDL

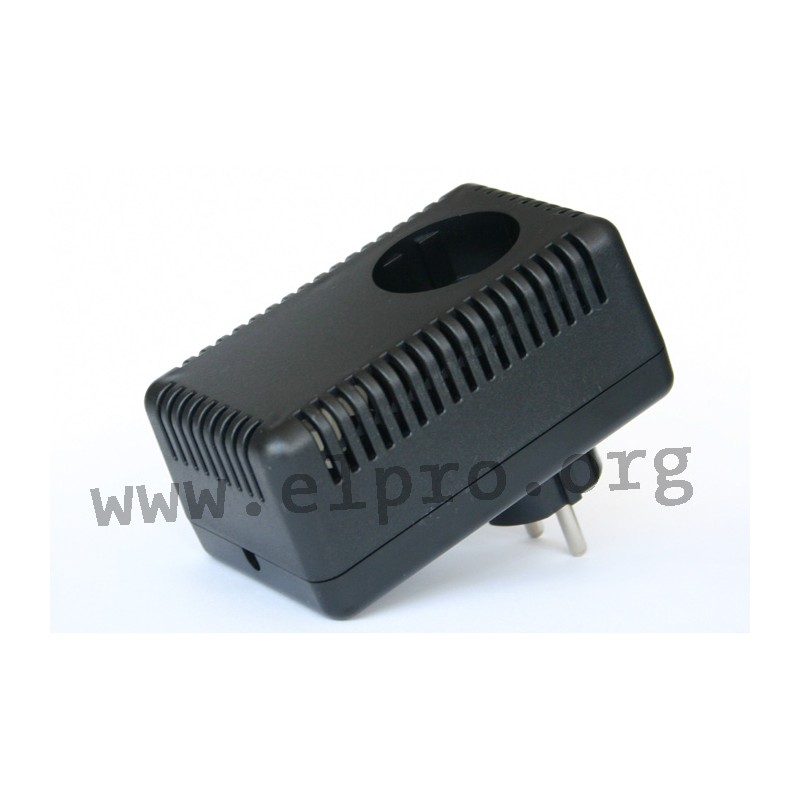

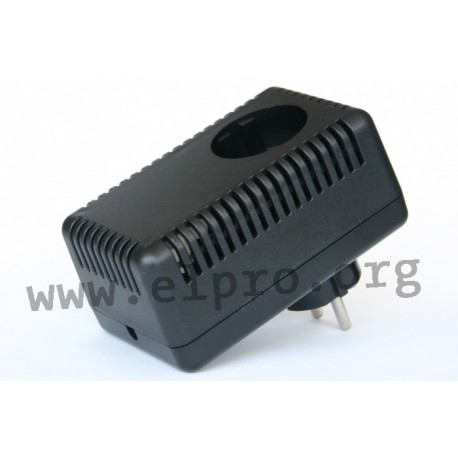

• black enclosures for power supplies
• plastic (UL94V1)
• lower part with molded on Schuko plug, center earthing contact and grounding clamp, plug contacts made of brass, nickel-plated, soldered connection
• suitable for protection class 1 (CEE7) devices
• upper part with louvred cover
• cams available for attaching a PCB
• opening for cable (Ø 6mm max.), with cams for screwing a strain relief clip with 16mm screw distance (You will find suitable cable clamps for strain relief, part KZ0441 in product group G8485. Suitable screws are available in product group G8191.)
• screw connection to both enclosure halves in lower part using four self-tapping screws
• with a schuko plug connector set in upper part

SGSDL

SGSDL

17127 SGSDL SG 422 SG 422 • black enclosures for power supplies• plastic (UL94V1)• lower part with molded on Schuko plug, center earthing contact and grounding clamp, plug contacts made of brass, nickel-plated, soldered connection• suitable for protection class 1 (CEE7) devices• upper part with louvred cover• cams available for attaching a PCB• opening for cable (Ø 6mm max.), with cams for screwing a strain relief clip with 16mm screw distance (You will find suitable cable clamps for strain relief, part KZ0441 in product group G8485. Suitable screws are available in product group G8191.)• screw connection to both enclosure halves in lower part using four self-tapping screws• with a schuko plug connector set in upper part

Specifications

Manufacturer's name SG 422

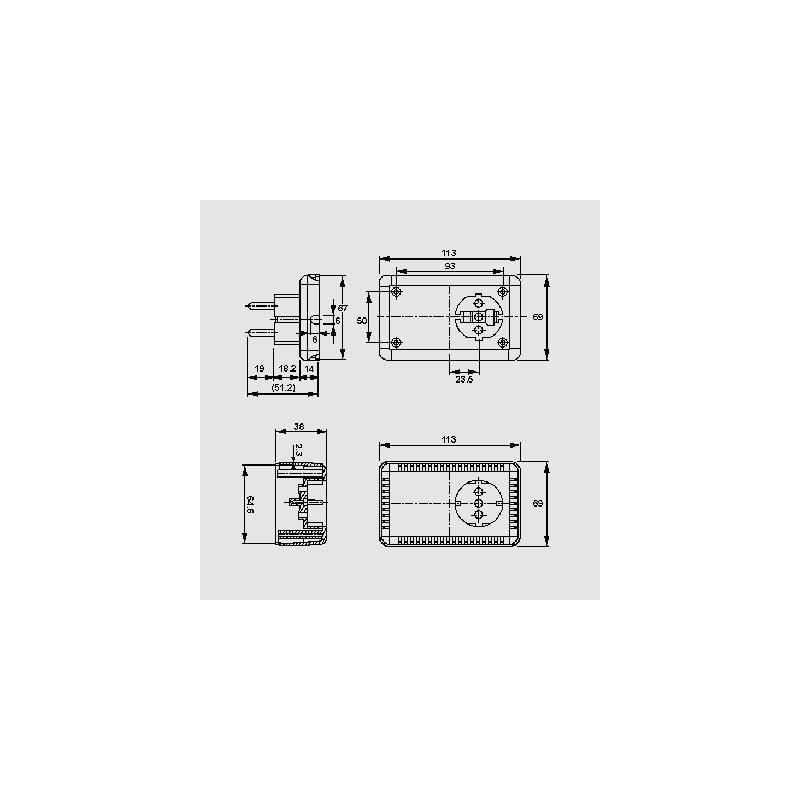

Outside dimensions [mm] 113x69x52
Inside dimensions [mm] 105x62x40
Data Sheet

Unit price

9,29 €

Stock: 6
Further delivery:
CW 51/2024
