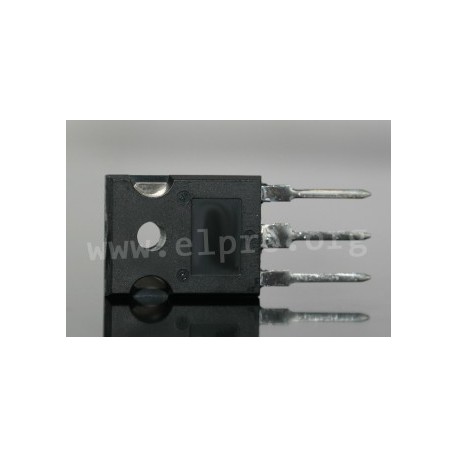

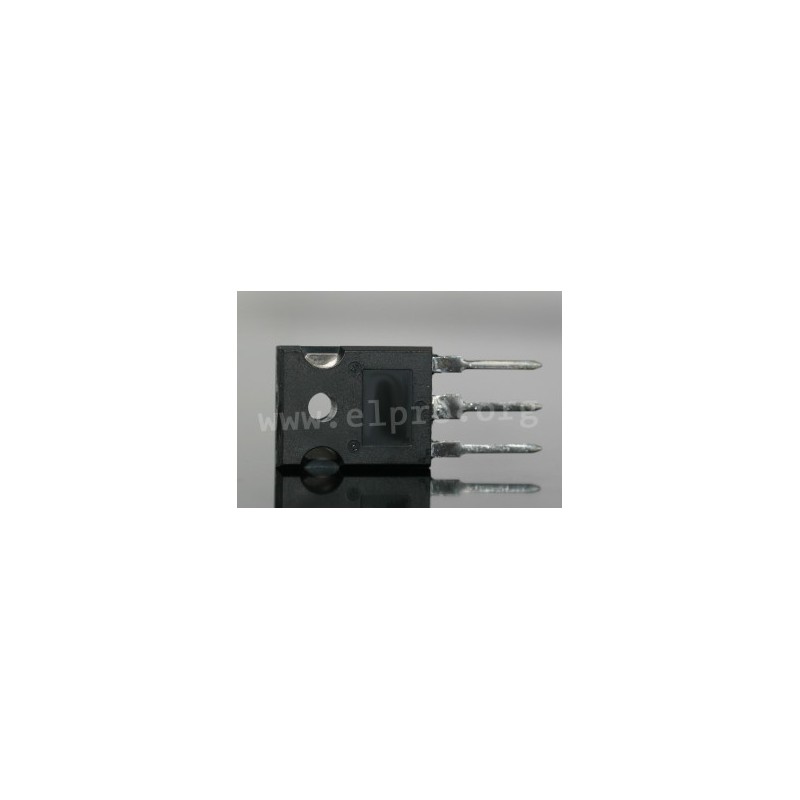

STGW 20 NC 60 VD

STMicroelectronics IGBT series STGW

  • insulated-gate bipolar transistors (IGBTs)
  • in a TO247 housing
  • PowerMESH™

STGW 20 NC 60 VD

106979 STGW 20 NC 60 VD STGW20NC60VD STGW20NC60VD STMicroelectronics IGBT series STGW. insulated-gate bipolar transistors (IGBTs) in a TO247 housing PowerMESH™

Specifications

manufacturer
Manufacturer's name STGW20NC60VD
Case TO247
Power dissipation [W] 200
Turn-on delay time [ns] 31
Max. collector-emitter breakdown voltage [V] 600
Min. gate threshold voltage [V] 3,75
Max. collector current, pulsed [A] 150
Turn-off delay time [ns] 100
Max. continuous collector current at TC = 25°C 60
Data Sheet

Unit price

2,09 €

Stock: 270
Further delivery:
CW 51/2025

Minimum order quantity 5 units or
multiples of 5.
