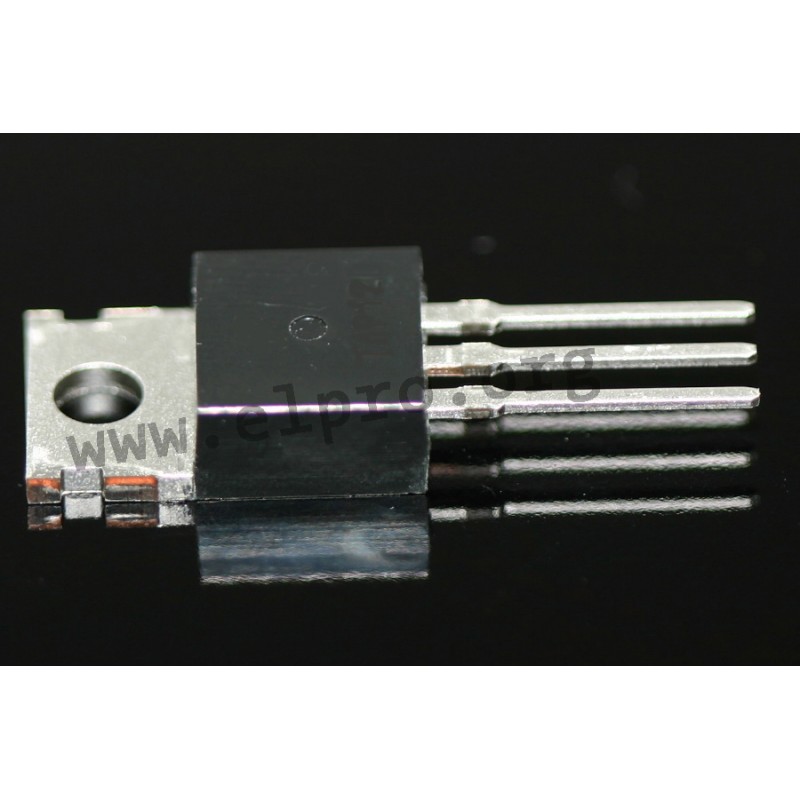

STGF 14 NC 60 KD

Infineon IGBT series STGF and STGP

  • insulated-gate bipolar transistors (IGBTs)
  • in a TO220 housing
  • PowerMESH™

STGF 14 NC 60 KD

106968 STGF 14 NC 60 KD STGF14NC60KD STGF14NC60KD Infineon IGBT series STGF and STGP. insulated-gate bipolar transistors (IGBTs) in a TO220 housing PowerMESH™

Specifications

manufacturer
Manufacturer's name STGF14NC60KD
Case TO220
Power dissipation [W] 28
Turn-on delay time [ns] 22,5
Max. collector-emitter breakdown voltage [V] 600
Min. gate threshold voltage [V] 4,5
Max. collector current, pulsed [A] 50
Turn-off delay time [ns] 116
Max. continuous collector current at TC = 25°C 11
Data Sheet

Unit price

1,08 €

Stock: 100
Further delivery:
CW 46/2025

Minimum order quantity 10 units or
multiples of 10.
