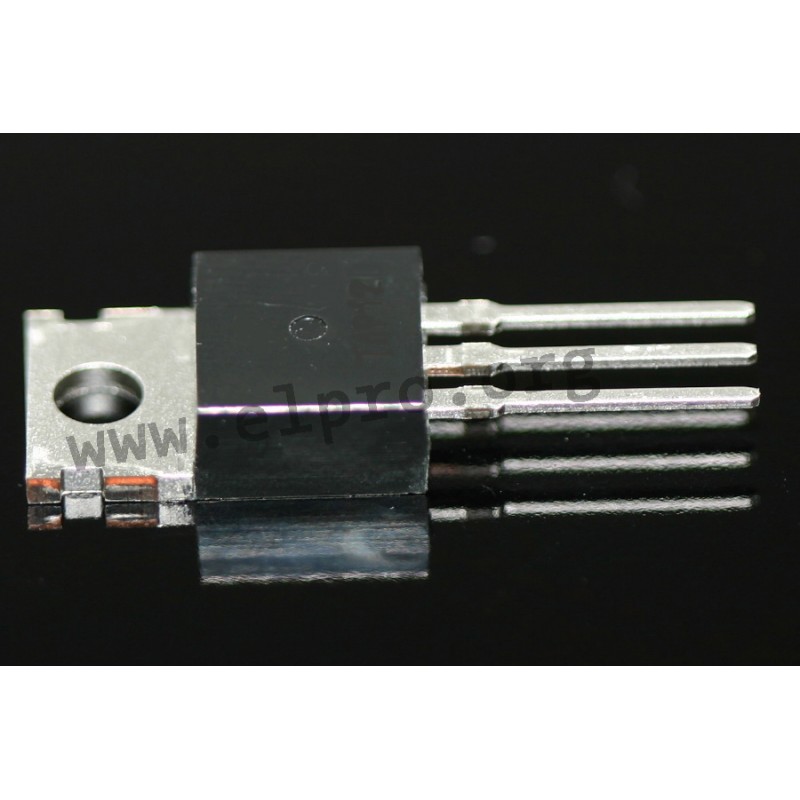

STGF 10 NC 60 KD

Infineon IGBT series STGF and STGP

  • insulated-gate bipolar transistors (IGBTs)
  • in a TO220 housing
  • PowerMESH™

STGF 10 NC 60 KD

106967 STGF 10 NC 60 KD STGF10NC60KD STGF10NC60KD Infineon IGBT series STGF and STGP. insulated-gate bipolar transistors (IGBTs) in a TO220 housing PowerMESH™

Specifications

manufacturer
Manufacturer's name STGF10NC60KD
Case TO220
Power dissipation [W] 25
Turn-on delay time [ns] 17
Max. collector-emitter breakdown voltage [V] 600
Min. gate threshold voltage [V] 4,5
Max. collector current, pulsed [A] 30
Turn-off delay time [ns] 21
Max. continuous collector current at TC = 25°C 9
Data Sheet

Unit price

0,676 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
