> Passive elements>Fuses>Fuse holders>Stelvio Kontek fuse holders, 6,3A, insulated, for 5x20mm, PTF series>BS 232 VE

Manufacturers

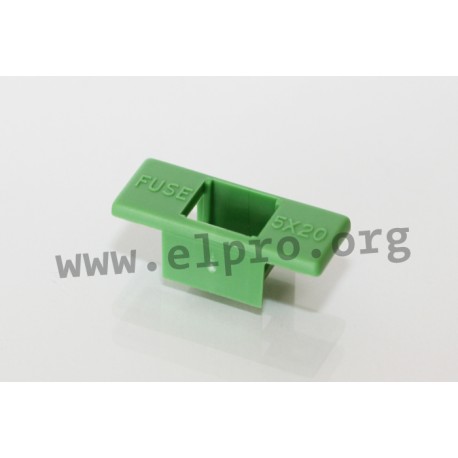

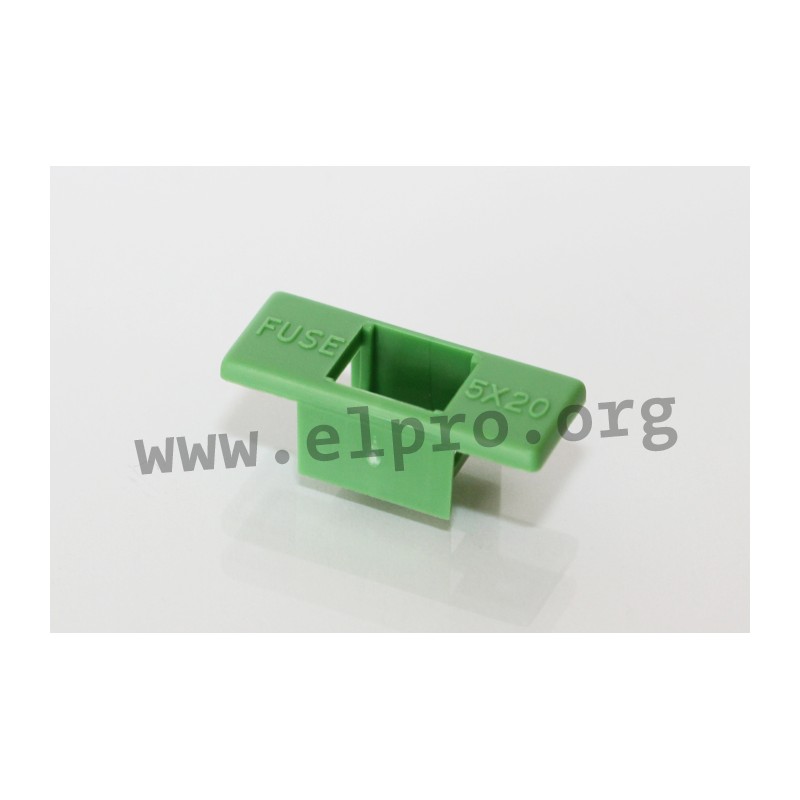

BS 232 VE

fuse holders PTF von Stelvio Kontek

• clip fuse holder consisting of a soldered-holder with insulated brass springs
• for glass tube micro fuses 5x20mm
• made of polyamide-68, self-extinguishing (UL94V-0)
• cover is not included
• metal parts made from brass with nickel layer, tin-plated
• operating voltage, max.: 250V AC
• rated current: 6.3A
• contact resistance, max.: 5mΩ
• insulation resistance, min.: 102MΩ
• dielectric strength: >3000V AC/60s
• PCB mounting hole: Ø 1.5mm
• colour: green
• by Stelvio Kontek

• cover for fuse holder BS 232 VE must be ordered separately
BS 232 VE

BS 232 VE

44371 BS 232 VE BS232VE BS232VE fuse holders PTF von Stelvio Kontek. * clip fuse holder consisting of a soldered-holder with insulated brass springs * for glass tube micro fuses 5x20mm * made of polyamide-68, self-extinguishing (UL94V-0)* cover is not included* metal parts made from brass with nickel layer, tin-plated* operating voltage, max.: 250V AC* rated current: 6.3A* contact resistance, max.: 5mΩ* insulation resistance, min.: 102MΩ* dielectric strength: >3000V AC/60s* PCB mounting hole: Ø 1.5mm* colour: green* by Stelvio Kontek* cover for fuse holder BS 232 VE must be ordered separately

Specifications

manufacturer
Manufacturer's name BS232VE

Unit price

0,052 €

Stock: 92.260
Next incoming goods:
CW 22/2025
18.000 units

Further delivery:
CW 31/2025

Minimum order quantity 10 units or
multiples of 10.
