PTF 78

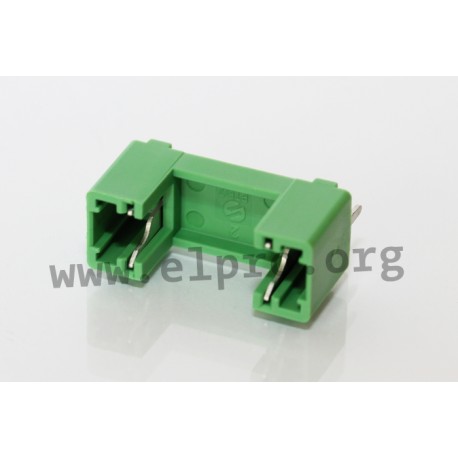

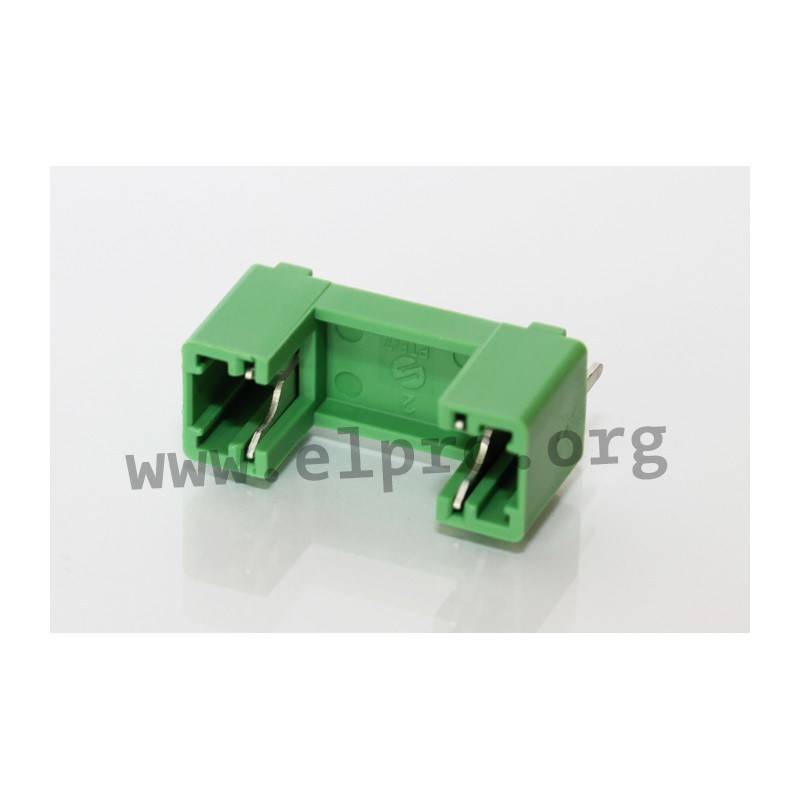

fuse holders PTF von Stelvio Kontek

* clip fuse holder consisting of a soldered-holder with insulated brass springs
* for glass tube micro fuses 5x20mm
* made of polyamide-68, self-extinguishing (UL94V-0)
* cover is not included
* metal parts made from brass with nickel layer, tin-plated
* operating voltage, max.: 250V AC
* rated current: 6.3A
* contact resistance, max.: 5mΩ
* insulation resistance, min.: 102MΩ
* dielectric strength: >3000V AC/60s

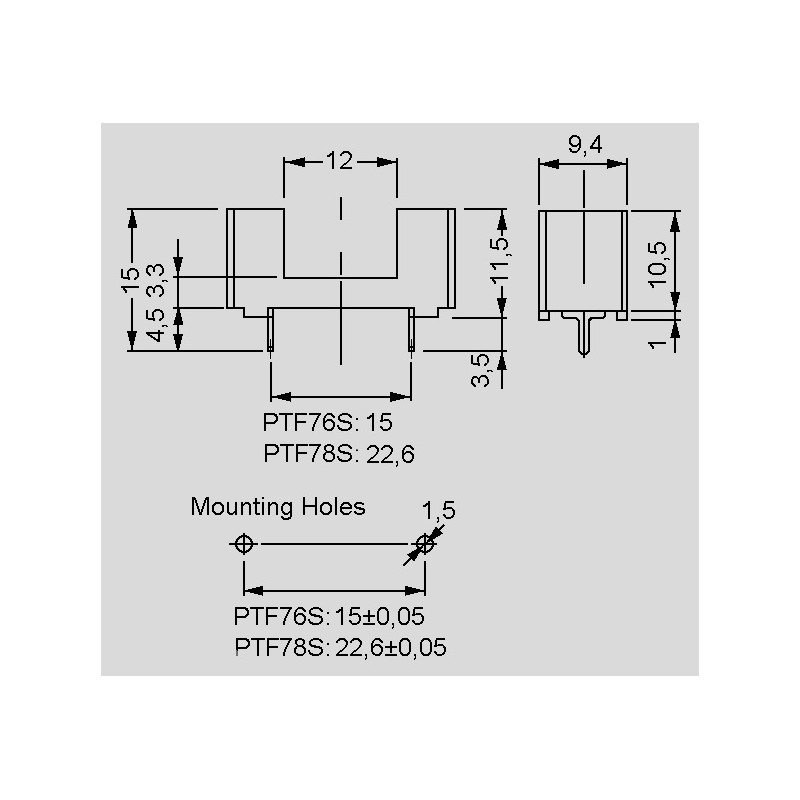

* PCB mounting hole: Ø 1.5mm
* colour: green
* by Stelvio Kontek

* cover for fuse holder BS 232 VE must be ordered separately
PTF 78

PTF 78

27542 PTF 78 PTF/78 PTF/78 fuse holders PTF von Stelvio Kontek. * clip fuse holder consisting of a soldered-holder with insulated brass springs * for glass tube micro fuses 5x20mm * made of polyamide-68, self-extinguishing (UL94V-0)* cover is not included* metal parts made from brass with nickel layer, tin-plated* operating voltage, max.: 250V AC* rated current: 6.3A* contact resistance, max.: 5mΩ* insulation resistance, min.: 102MΩ* dielectric strength: >3000V AC/60s* PCB mounting hole: Ø 1.5mm* colour: green* by Stelvio Kontek* cover for fuse holder BS 232 VE must be ordered separately

Specifications

manufacturer
Manufacturer's name PTF/78
Pitch [mm] 22,6
Data Sheet

Unit price

0,115 €

Stock: 82720
Next incoming goods:
CW 49/2024
25800 units

Further delivery:
CW 52/2024

Minimum order quantity 10 units or
multiples of 10.
