CPP 3,5/2 grün

Stelvio Kontek terminal block series CPP 3,5

  • terminal blocks in green with a side wire entry
  • screw-cage clamp principle
  • insulator is made of PA (UL94V-0)
  • suitable for a wire cross section of 0,2 to 1,5mm² (single stranded wire) resp. 0,2 to 1mm² (fine stranded wire)
  • rated voltage: 160V
  • rated current: 10A
  • pitch: 3,5mm

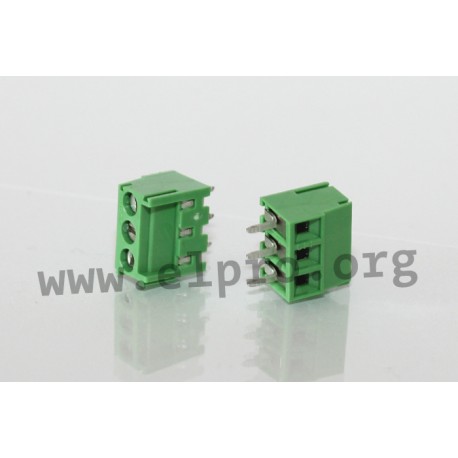

series CPP3,5 von Stelvio Kontek

CPP 3,5/2 grün

39309 CPP 3,5/2 grün CPP3,5/2VE CPP3,5/2VE Stelvio Kontek terminal block series CPP 3,5 . terminal blocks in green with a side wire entry screw-cage clamp principle insulator is made of PA (UL94V-0) suitable for a wire cross section of 0,2 to 1,5mm² (single stranded wire) resp. 0,2 to 1mm² (fine stranded wire) rated voltage: 160V rated current: 10A pitch: 3,5mm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CPP3,5/2VE
Design screw-cage...
Number of poles 2
Length [mm] 7
Data Sheet

Unit price

0,29 €

Stock: 1
