> Passive elements>Terminals>Terminal multiconnectors>Stelvio Kontek box-headers, pitch 5,08mm, 20A, 320V, 90°, CPM5.08_SQ series>CPM5,08/2SQ

Manufacturers

CPM5,08/2SQ

box headers CPM5,08_SQ by Stelvio Kontek

• pin direction: horizontal
• with side panel
• pitch: 5.08mm
• 2-pole
• by Stelvio Kontek
• rated voltage: 320V
• rated current: 20A
• insulating material: PA
• temperature range: -30 to +105°C
• flammability class: UL94V-0
• colour: green

• suitable multiconnectors straight

• suitable multiconnectors angled

series CPM5,08_SQ by Stelvio Kontek

CPM5,08/2SQ

39348 CPM5,08/2SQ CPM5,08/2SQ box headers CPM5,08_SQ by Stelvio Kontek. • pin direction: horizontal• with side panel• pitch: 5.08mm• 2-pole• by Stelvio Kontek• rated voltage: 320V• rated current: 20A• insulating material: PA• temperature range: -30 to +105°C• flammability class: UL94V-0• colour: green • suitable multiconnectors straight • suitable multiconnectors angled

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CPM5,08/2SQ
Design angled
Number of poles 2
Length [mm] 11,36

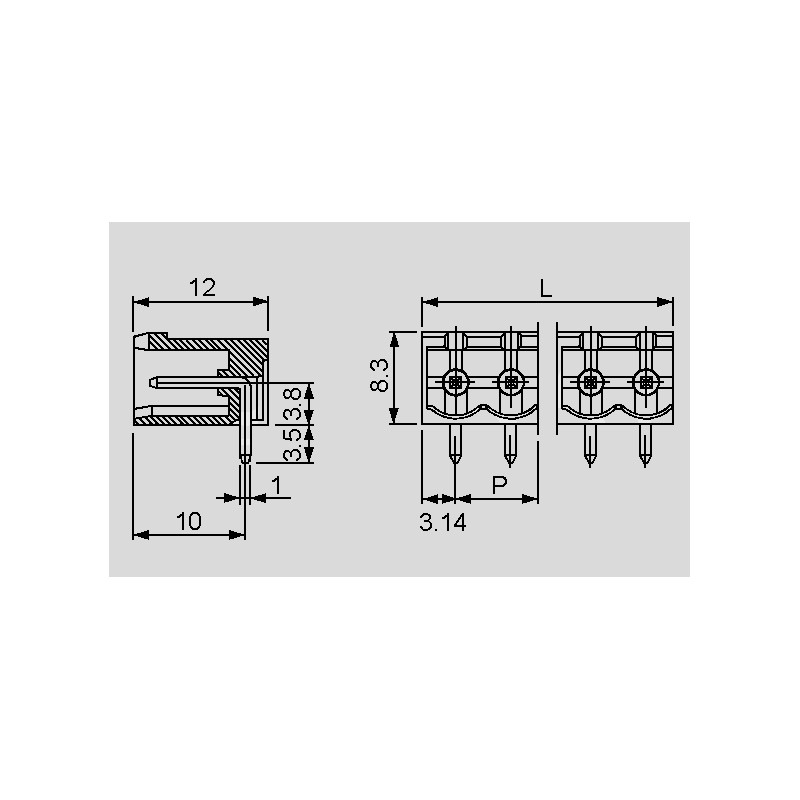

Data Sheet

Unit price

0,16 €

Stock: 8
