CPM 5,08/4 grün

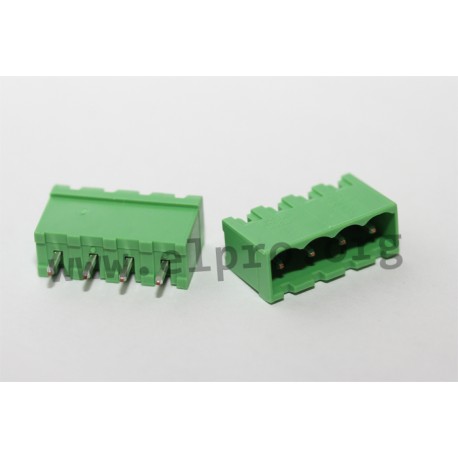

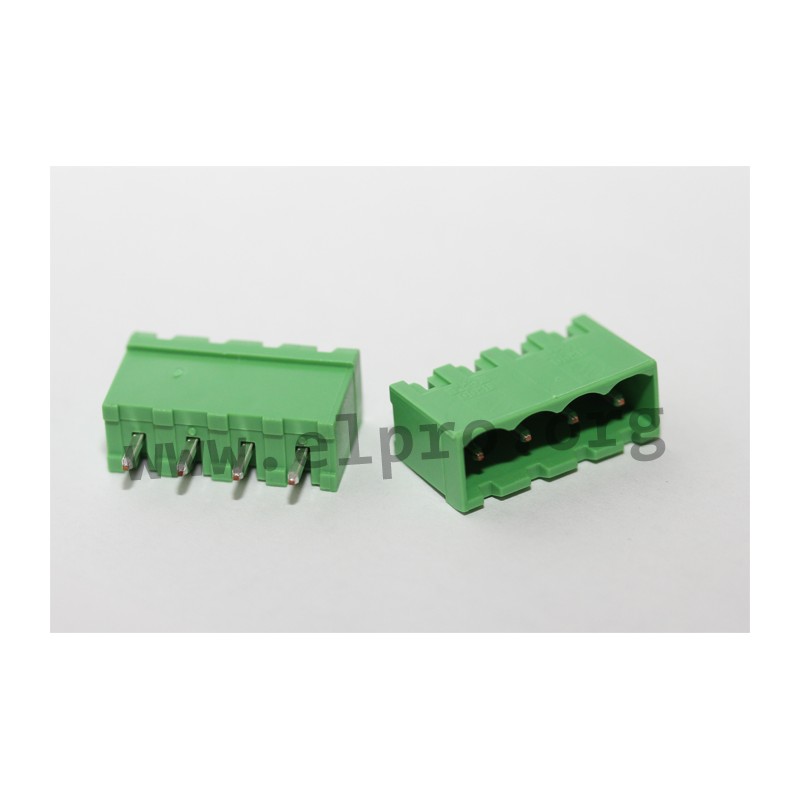

box headers CPM 5,08 by Stelvio Kontek

• pin direction: vertical
• with side panel
• pitch: 5.08mm
• 4-pole
• by Stelvio Kontek
• rated voltage: 320V
• rated current: 20A
• insulating material: PA
• temperature range: -30 to +105°C
• flammability class: UL94V-0
• colour: green

• suitable multiconnectors straight

• suitable multiconnectors angled

series CPM 5,08 by Stelvio Kontek

CPM 5,08/4 grün

39345 CPM 5,08/4 grün CPM5,08/4 CPM5,08/4 box headers CPM 5,08 by Stelvio Kontek. • pin direction: vertical• with side panel• pitch: 5.08mm• 4-pole• by Stelvio Kontek• rated voltage: 320V• rated current: 20A• insulating material: PA• temperature range: -30 to +105°C• flammability class: UL94V-0• colour: green • suitable multiconnectors straight • suitable multiconnectors angled

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CPM5,08/4
Design straight
Number of poles 4
Length [mm] 21,52
Data Sheet

Unit price

0,27 €

Stock: 5
