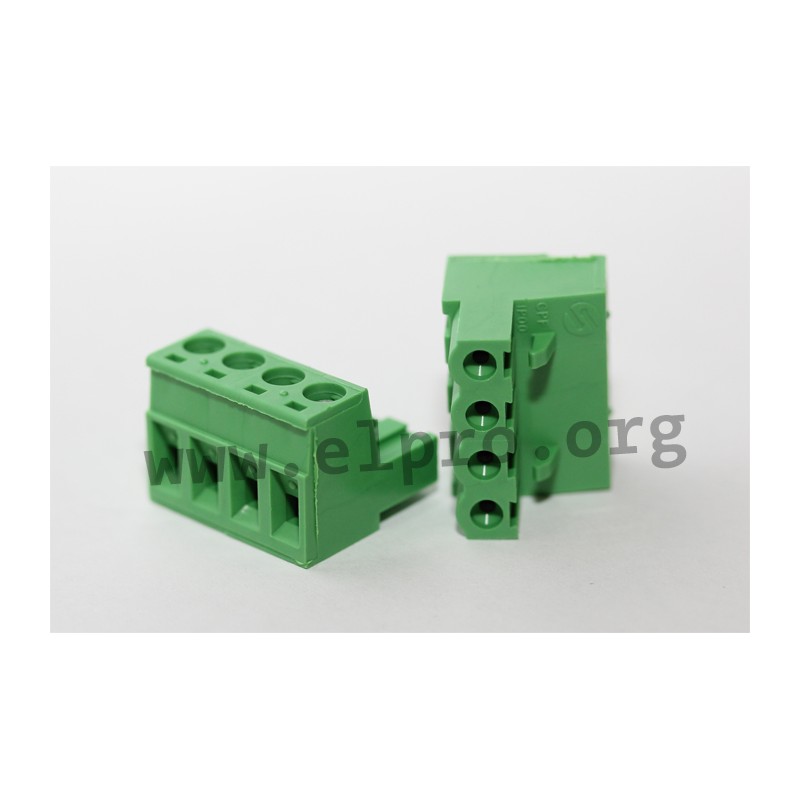

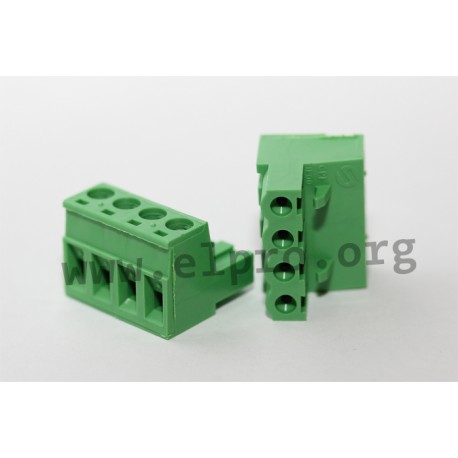

CPF 5,08/4 grün

multiconnectors CPF 5,08 by Stelvio Kontek

• screw-cage clamp principle
• conductor: vertical
• pitch: 5.08mm
• 4-pole
• rated voltage: 320V
• rated current: 20A
• rated cross section, single and fine stranded wire: 0.2 to 2.5mm²
• stripped length: 7mm
• insulating material: PA
• temperature range: -30°C to +120°C
• flammability class: UL94V-0
• colour: green

• suitable box headers straight

• suitable box headers angled

series CPF 5.08 by Stelvio Kontek

CPF 5,08/4 grün

39340 CPF 5,08/4 grün CPF5,08/4 CPF5,08/4 multiconnectors CPF 5,08 by Stelvio Kontek. • screw-cage clamp principle• conductor: vertical• pitch: 5.08mm• 4-pole• rated voltage: 320V• rated current: 20A• rated cross section, single and fine stranded wire: 0.2 to 2.5mm²• stripped length: 7mm• insulating material: PA• temperature range: -30°C to +120°C• flammability class: UL94V-0• colour: green • suitable box headers straight • suitable box headers angled

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CPF5,08/4
Design screw-cage...
Number of poles 4
Length [mm] 20,32
Data Sheet

Unit price

0,73 €

Stock: 5
