> Passive elements>Terminals>Terminal multiconnectors>Stelvio Kontek terminal multiconnectors, pitch 5mm, 20A, 320V, screw-cage clamp principle, CPF5 series>CPF 5/2 grün

Manufacturers

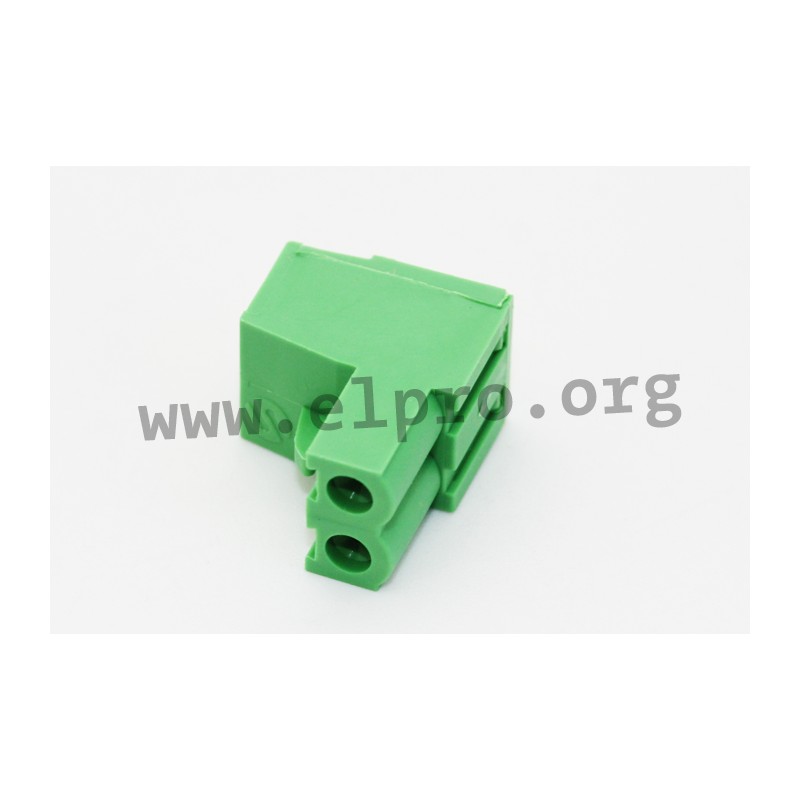

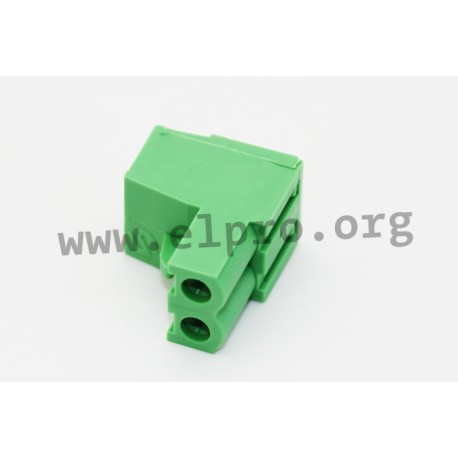

CPF 5/2 grün

multiconnectors CPF 5 by Stelvio Kontek

• screw-cage clamp principle
• conductor: vertical
• pitch: 5mm
• 2-pole
• by Stelvio Kontek
• rated voltage: 320V
• rated current: 20A
• rated cross section, single and fine stranded wire: 0.2 to 2.5mm²
• stripped length: 7mm
• insulating material: PA
• temperature range: -30°C to +120°C
• flammability class: UL94V-0
• colour: green

• suitable box headers straight

• suitable box headers angled

CPF5/2, Stelvio Kontek terminal multiconnectors, pitch 5mm, 20A, 320V, screw-cage clamp principle, CPF5 series

CPF 5/2 grün

39364 CPF 5/2 grün CPF5/2 CPF5/2 multiconnectors CPF 5 by Stelvio Kontek. • screw-cage clamp principle• conductor: vertical• pitch: 5mm• 2-pole• by Stelvio Kontek• rated voltage: 320V• rated current: 20A• rated cross section, single and fine stranded wire: 0.2 to 2.5mm²• stripped length: 7mm• insulating material: PA• temperature range: -30°C to +120°C• flammability class: UL94V-0• colour: green • suitable box headers straight • suitable box headers angled

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CPF5/2
Design screw-cage...
Number of poles 2
Length [mm] 10
Data Sheet

Unit price

0,41 €

Stock: 9
