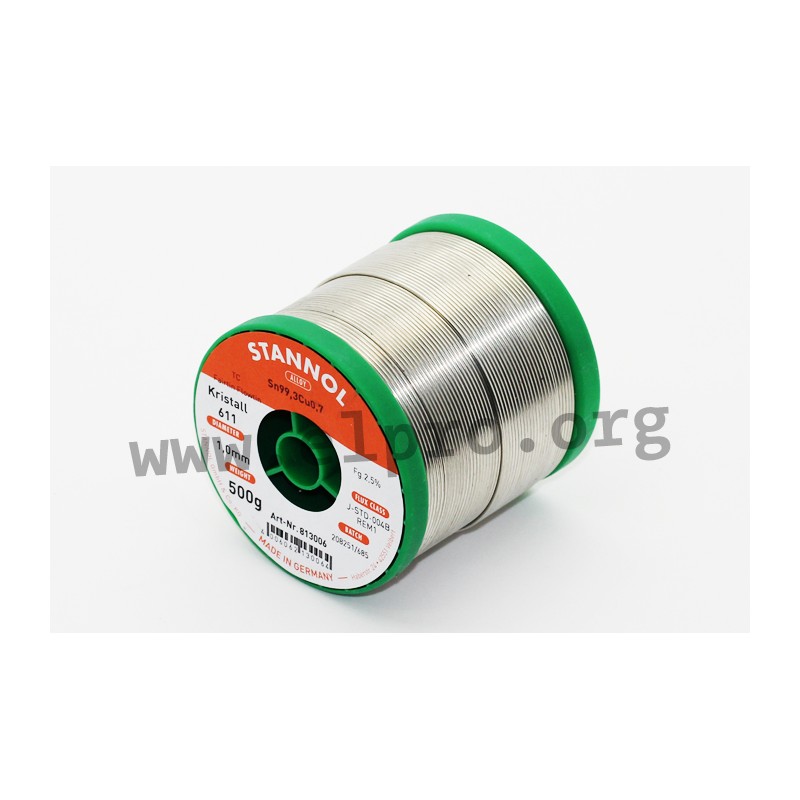

Kristall 611 TC 0,5mm 250g

Stannol solering wire series Kristall 611 TC

Colophony-free and halogen-activated soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering.

  • melting range: 227°C
  • flux type (J-STD-004): REM1
  • flux content (EN 12224): 2,5%
  • halogen content: 1,1%
  • corrosive effects (DIN EN 61190-1-1): low
  • alloy (Flowtin TC): Sn99,3 Cu0,7
  • flux core: 1 core

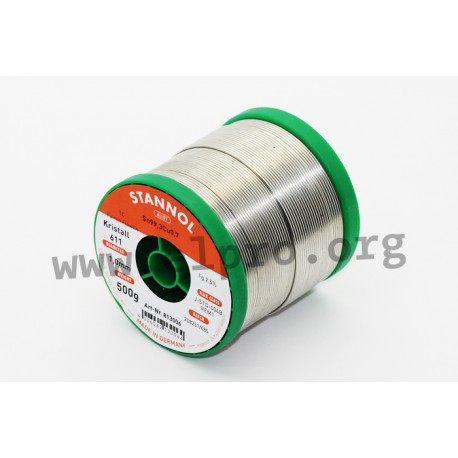

813017, Stannol, 2,5% halogen-activated flux, Fairtin Flowtin TC, Kristall 611 series

Kristall 611 TC 0,5mm 250g

114217 Kristall 611 TC 0,5mm 250g 813017 813017 Stannol solering wire series Kristall 611 TC. Colophony-free and halogen-activated soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering. melting range: 227°C flux type (J-STD-004): REM1 flux content (EN 12224): 2,5% halogen content: 1,1% corrosive effects (DIN EN 61190-1-1): low alloy (Flowtin TC): Sn99,3 Cu0,7 flux core: 1 core

Specifications

manufacturer
Manufacturer's name 813017
Data Sheet

Unit price

33,09 €

Stock: 2
Further delivery:
CW 52/2024
