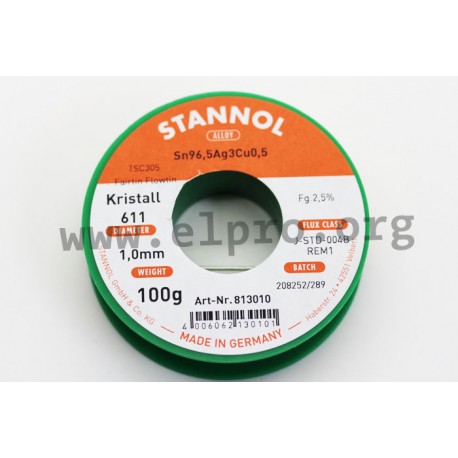

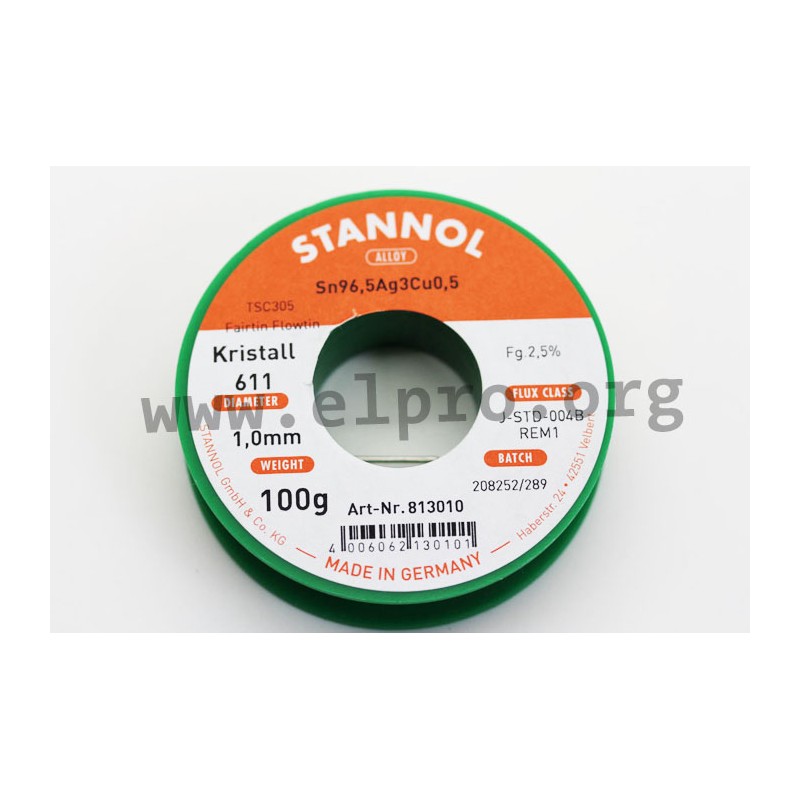

Kristall 611 TSC305 0,3mm 100g

Stannol soldering wire series Kristall 611 TSC305

Halogen-activated and colophony-free soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering.

  • melting range: 217 to 222°C
  • flux type (J-STD-004): REM1
  • flux content (EN 12224): 2,5%
  • halogen content: 1,1%
  • corrosive effects (DIN EN 61190-1-1): low
  • alloy (Flowtin TSC305): Sn96,5 Ag3,0 Cu0,5
  • flux core: 1 core
813007, Stannol, 2,5% halogen-activated flux, Fairtin Flowtin TSC305, Kristall 611 series

Kristall 611 TSC305 0,3mm 100g

114211 Kristall 611 TSC305 0,3mm 100g 813007 813007 Stannol soldering wire series Kristall 611 TSC305. Halogen-activated and colophony-free soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering. melting range: 217 to 222°C flux type (J-STD-004): REM1 flux content (EN 12224): 2,5% halogen content: 1,1% corrosive effects (DIN EN 61190-1-1): low alloy (Flowtin TSC305): Sn96,5 Ag3,0 Cu0,5 flux core: 1 core

Specifications

manufacturer
Manufacturer's name 813007
Data Sheet

Unit price

33,09 €

Stock: 17
Further delivery:
CW 04/2025
