UMS05-1A80-75D

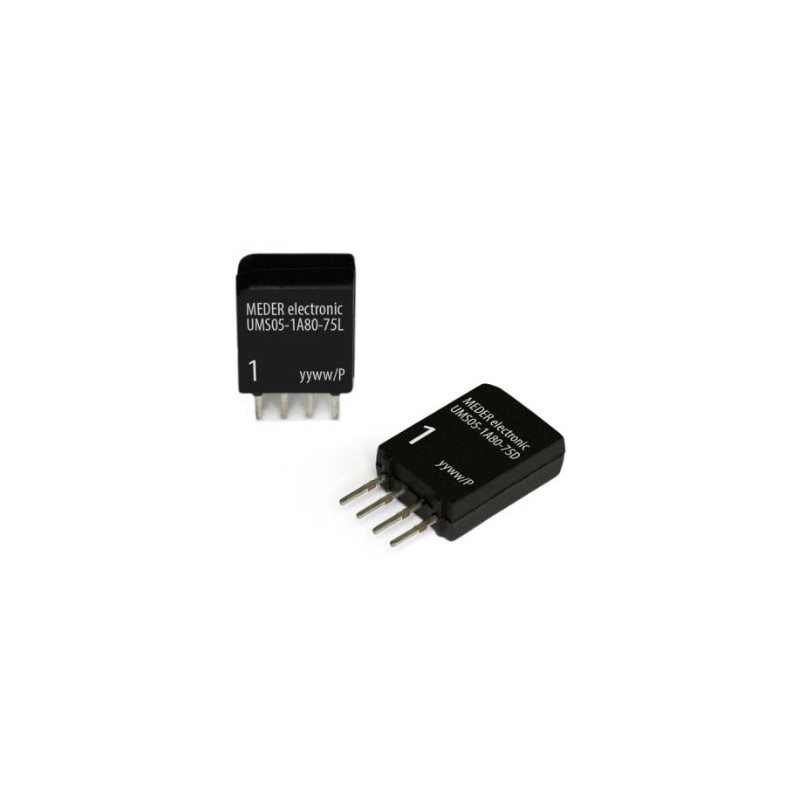

Standex Meder reed relay series UMS

  • ultra miniature single-in line relays in a micro-SIL housing with an SPST-NO contact
  • AEC-Q200 certified
  • fully sealed
  • available with (UMS05-1A80-75L) or without a diode (UMS05-1A80-75D)
  • dimensions approximately 50% smaller than the standard SIL series

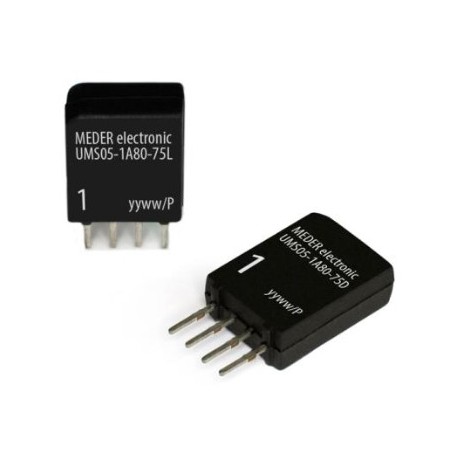

UMS05-1A80-75D, Standex Meder reed relays, SIL housing, 3A, UMS series

UMS05-1A80-75D

131531 UMS05-1A80-75D UMS05-1A80-75D Standex Meder reed relay series UMS. ultra miniature single-in line relays in a micro-SIL housing with an SPST-NO contact AEC-Q200 certified fully sealed available with (UMS05-1A80-75L) or without a diode (UMS05-1A80-75D) dimensions approximately 50% smaller than the standard SIL series

Specifications

manufacturer
Manufacturer's name UMS05-1A80-75D
Switching current, max. [A] 3
Switching voltage, max [V] 170
Switching capacity, max. [W] 10
Insulation resistance [Ω] 10^12
Data Sheet

Unit price

4,99 €

Stock: 230
Further delivery:
CW 01/2024

Minimum order quantity 5 units or
multiples of 5.
