9231661015

Standex Meder reed sensor series MK23

Powerless reed sensors in an SMD housing for low power applications. These switches do not require an external power supply and are designed without moulding. They are suitable for direct PCB mounting and have 1x SPST-NO as well as 1x SPDT contact. We offer various types of this Standes Meder series.

  • contacts: 1xSPST-NO or 1xSPDT
  • switching current MK23-87_: 0,4A
  • switching current MK23-46_/MK23-66_/MK23-90_: 0,5A
  • switching current MK23-35_/MK23-85_: 1A
  • with a maximal soldering temperature of 260°C/5s
  • operating temperature: -40 to +130°C

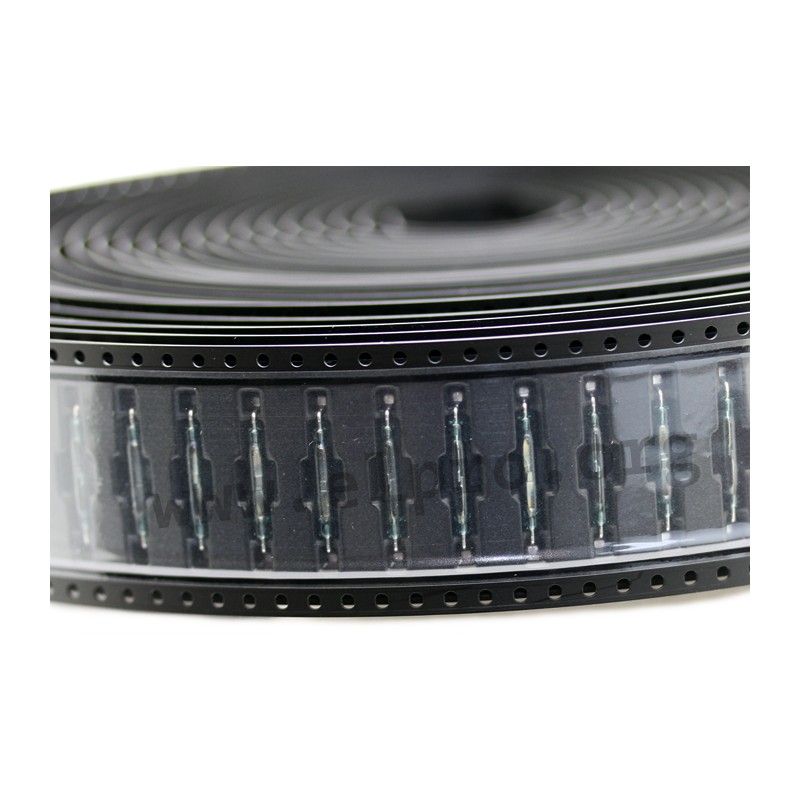

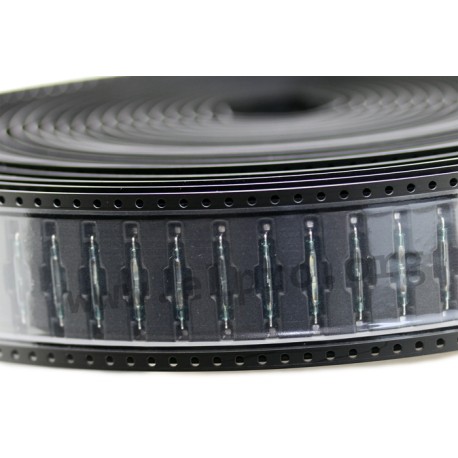

MK23-66-B-2, Standex Meder reed sensors, SMD housing, MK23 series

9231661015

40914 9231661015 MK23-66-B-2 MK23-66-B-2 Standex Meder reed sensor series MK23. Powerless reed sensors in an SMD housing for low power applications. These switches do not require an external power supply and are designed without moulding. They are suitable for direct PCB mounting and have 1x SPST-NO as well as 1x SPDT contact. We offer various types of this Standes Meder series. contacts: 1xSPST-NO or 1xSPDT switching current MK23-87_: 0,4A switching current MK23-46_/MK23-66_/MK23-90_: 0,5A switching current MK23-35_/MK23-85_: 1A with a maximal soldering temperature of 260°C/5s operating temperature: -40 to +130°C

Specifications

manufacturer
Manufacturer's name MK23-66-B-2
Switching current, max. [A] 0,5
Carry current, max. [A] 1,25
Switching voltage, max [V] 180
Contact resistance, max. [mΩ] 150
Breakdown voltage, min. [V DC] 225
Type of contact 1...
Switching capacity, max. [W] 10
Data Sheet

Unit price

0,434 €

Stock: 2240
Further delivery:
CW 50/2024

Minimum order quantity 10 units or
multiples of 10.
