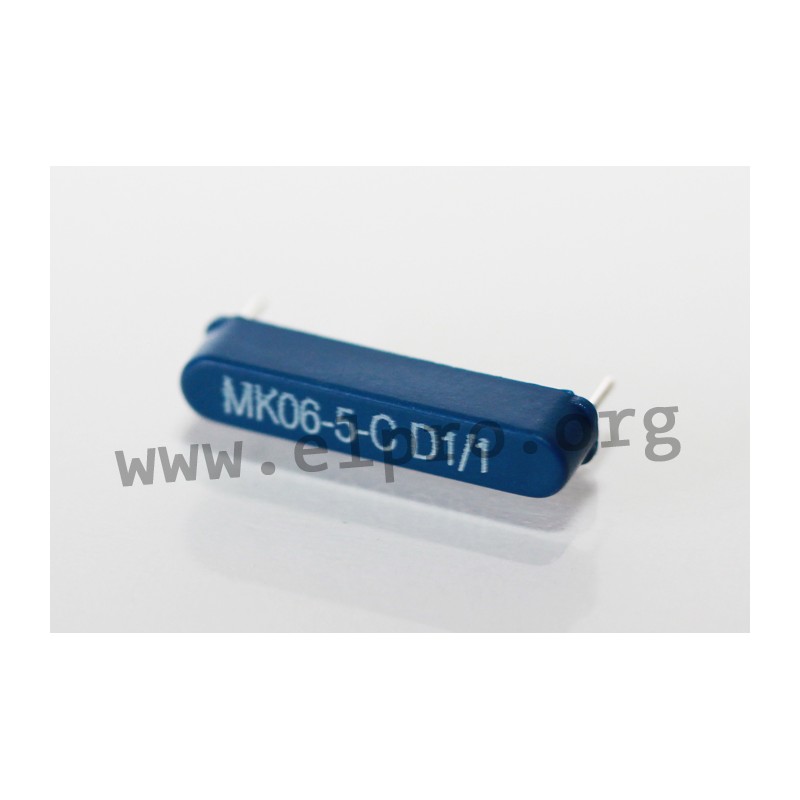

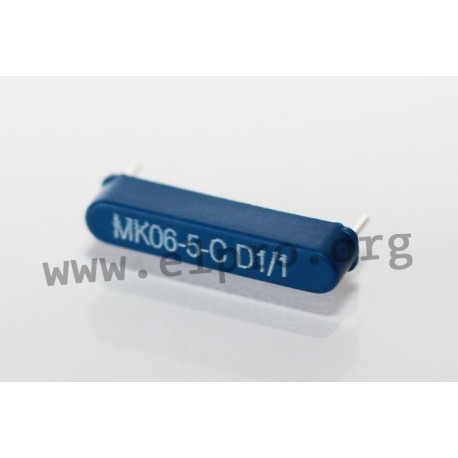

MK06-5-C

Standex Meder reed sensor series MK

  • magnetically operated reed proximity switches with contacts made of ferromagnetic contact blades
  • the contact is closed resp. opened by removing resp. approximating the reed switch and the permanent magnet
  • contact: SPST-NO
  • switching current: 0,5A
  • switched power: 10W
MK06-5-C

MK06-5-C

40907 MK06-5-C MK06-5-C Standex Meder reed sensor series MK. magnetically operated reed proximity switches with contacts made of ferromagnetic contact bladesthe contact is closed resp. opened by removing resp. approximating the reed switch and the permanent magnetcontact: SPST-NOswitching current: 0,5Aswitched power: 10W

Specifications

manufacturer
Manufacturer's name MK06-5-C
Switching current, max. [A] 0,5
Carry current, max. [A] 0,3
Switching voltage, max [V] 200
Contact resistance, max. [mΩ] 150
Breakdown voltage, min. [V DC] 230
Switching capacity, max. [W] 1
Data Sheet

Unit price

1,07 €

Stock: 1642
Further delivery:
CW 05/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
