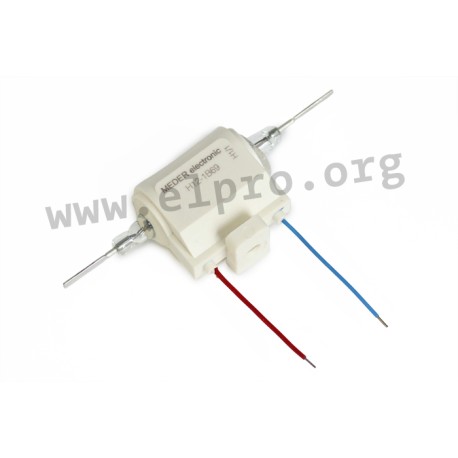

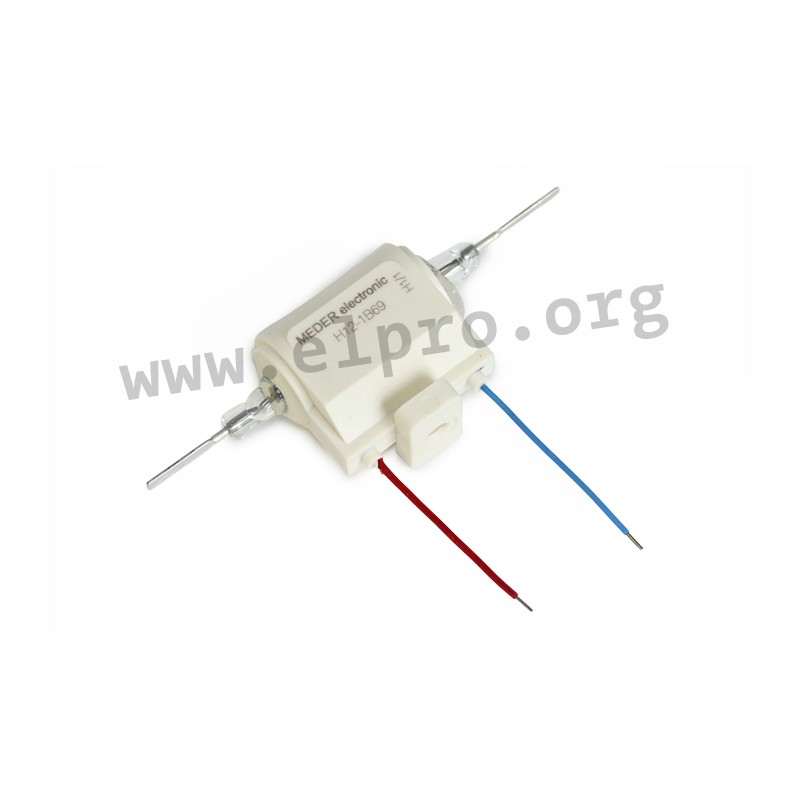

H24-1B69

Standex Meder reed relay series H

  • high voltage relays without a diode
  • open frame with M4 screw mount
  • SPST and SPST-NO contacts
  • dimensions: 54x18x30mm

H24-1B69

131529 H24-1B69 H24-1B69 Standex Meder reed relay series H. high voltage relays without a diode open frame with M4 screw mount SPST and SPST-NO contacts dimensions: 54x18x30mm

Specifications

manufacturer
Manufacturer's name H24-1B69
Switching current, max. [A] 3
Switching voltage, max [V] 10000
Switching capacity, max. [W] 50
Insulation resistance [Ω] 10^10
Data Sheet

Unit price

52,99 €

Stock: 9
Further delivery:
CW 49/2024
