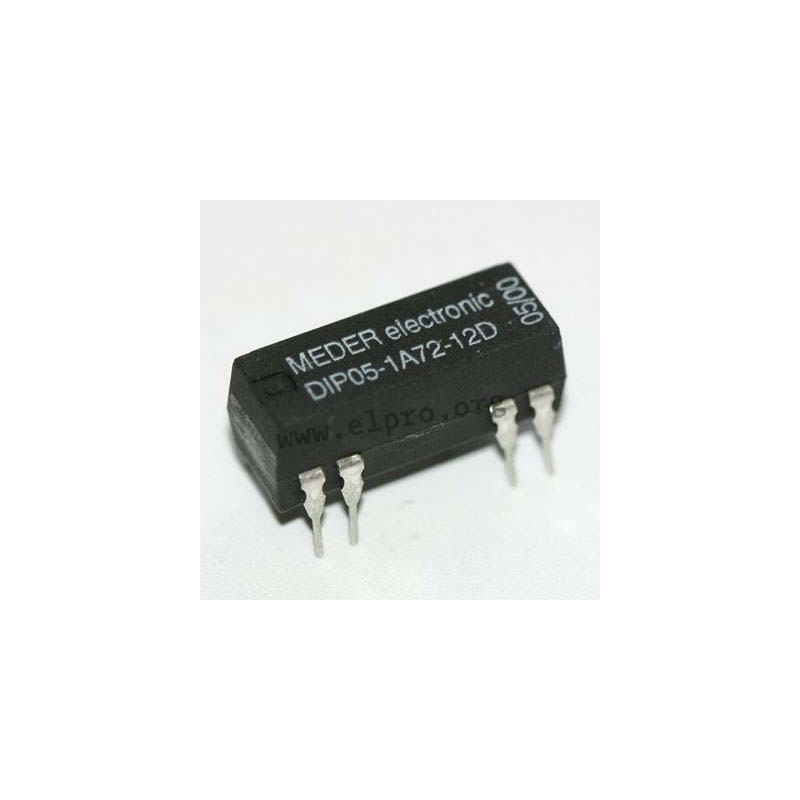

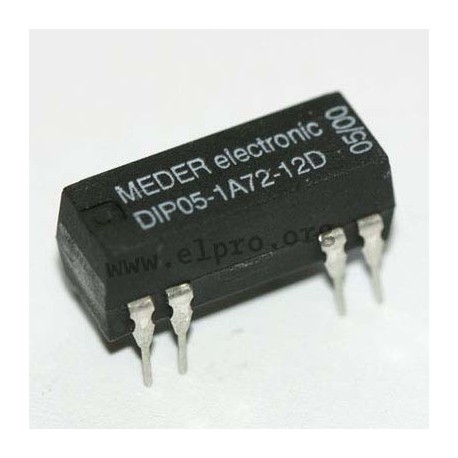

RRDP A 5 V

reed relays, DIL housing, 1 normally-open

• flux sealed construction

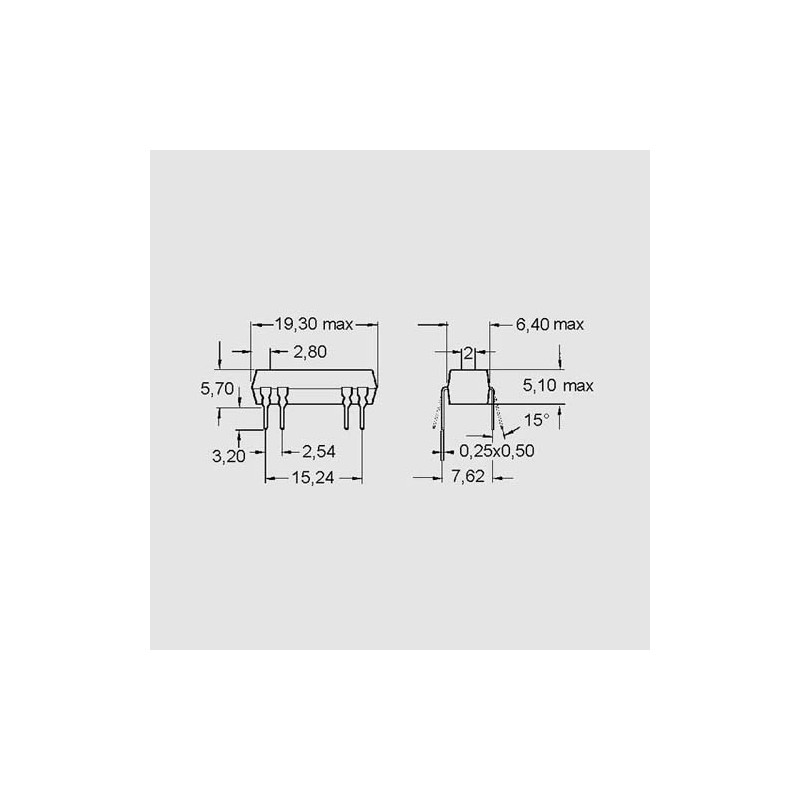

• plug-in a 14-pole DIP/DIL-IC socket
• TTL-control possible

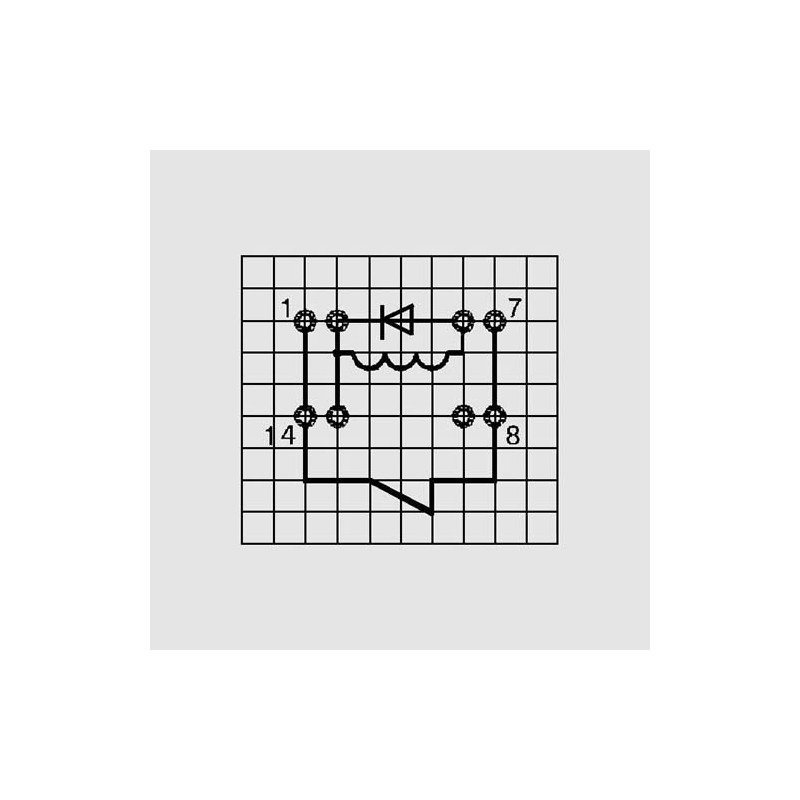

• high-profile, with integrated diode parallel to coil
• configuration: SPST-NΩ
• switching capacity, max.: 10W
• switching voltage, max.: 200V DC
• switching current, max.: 0.5A
• transport current, max.: 1A
• contact resistance: 150mΩ
• insulation resistance (coil/contacts): 1012Ω
• breakdown voltage, min. (coil/contacts): 1.500V DC
• operate tTime, max. (incl. bounce): 0.5ms
• release time, max.: 0.1ms
• vibration resistance (10...2000Hz): 20G
• temperature range: -20...+70°C
• soldering temperature/time: 260°C/5s

coil data: polarized, monostable

RRDP A 5 V

RRDP A 5 V

11798 RRDP A 5 V DIP05-1A72-12D DIP05-1A72-12D reed relays, DIL housing, 1 normally-open. • flux sealed construction• plug-in a 14-pole DIP/DIL-IC socket• TTL-control possible• high-profile, with integrated diode parallel to coil• configuration: SPST-NΩ• switching capacity, max.: 10W• switching voltage, max.: 200V DC• switching current, max.: 0.5A• transport current, max.: 1A• contact resistance: 150mΩ• insulation resistance (coil/contacts): 1012Ω• breakdown voltage, min. (coil/contacts): 1.500V DC• operate tTime, max. (incl. bounce): 0.5ms• release time, max.: 0.1ms• vibration resistance (10...2000Hz): 20G• temperature range: -20...+70°C• soldering temperature/time: 260°C/5scoil data: polarized, monostable

Specifications

manufacturer
Manufacturer's name DIP05-1A72-12D
Rated current [mA] 10
Nominal resistance [Ω] 500
Max. switching voltage [V] 200
Max. switching power [W] 15
Data Sheet

Unit price

2,79 €

Stock: 377
Further delivery:
CW 52/2024

Minimum order quantity 1 to 2 units or multiples of 25 plus 0 to 2 .
