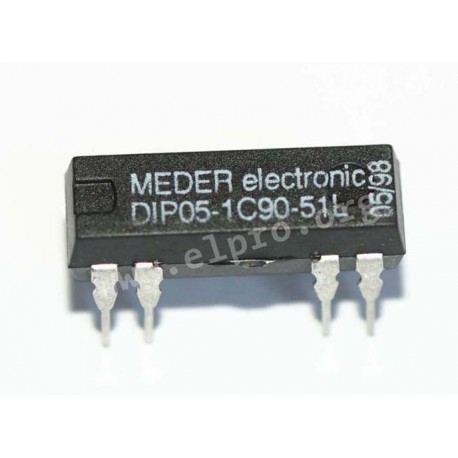

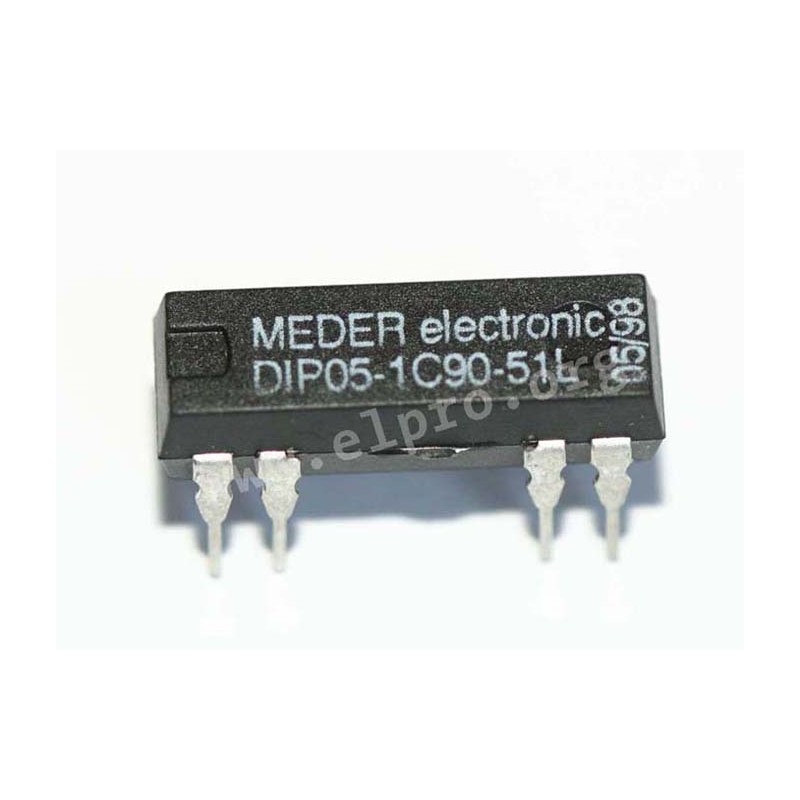

RR C 12 V

reed relays, DIL housing, 1 changeover

• fully encapsulated
• flux sealed construction
• plug-in a 14-pole DIP/DIL-IC socket
• TTL control possible
• low-profile

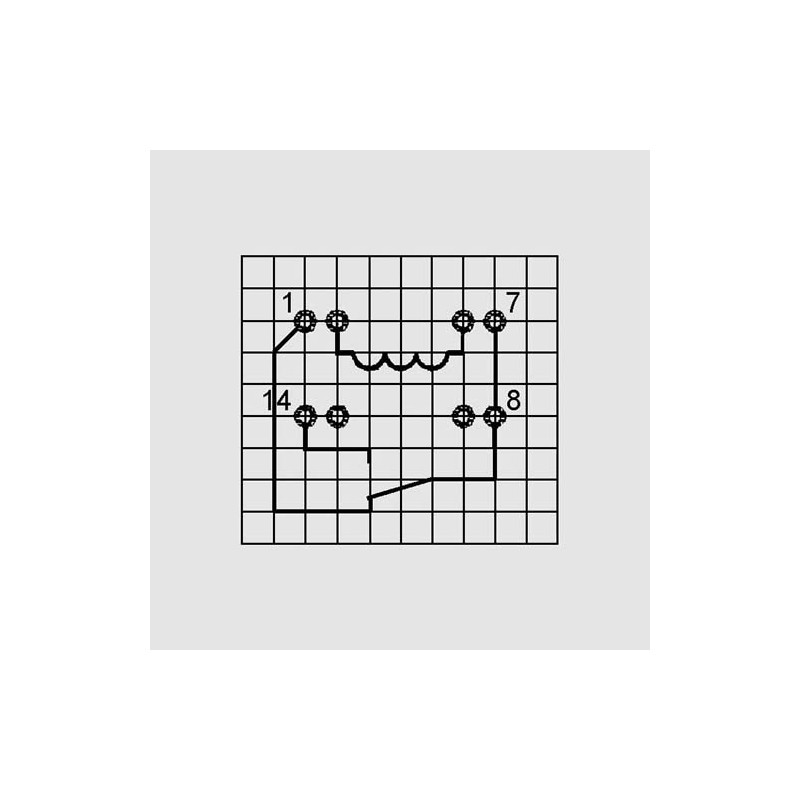

• configuration: SPDT
• switching capacity, max.: 10W
• switching voltage, max.: 100V DC
• switching current, max.: 0.2A
• transport current, max.: 0.5A
• contact resistance: 150mW
• insulation resistance (coil/contacts): 1012Ω
• breakdown voltage, min. (coil/contacts): 1.500V DC
• operate time, max. (incl. bounce): 2ms
• release time, max.: 2ms
• vibration resistance (10...2000Hz): 20G
• temperature range: -20...+70°C
• soldering temperature/time: 260°C/5s

coil data: non-polarized, monostable

RR C 5 V

RR C 12 V

11793 RR C 12 V DIP12-1C90-51L DIP12-1C90-51L reed relays, DIL housing, 1 changeover. • fully encapsulated• flux sealed construction• plug-in a 14-pole DIP/DIL-IC socket• TTL control possible• low-profile• configuration: SPDT• switching capacity, max.: 10W• switching voltage, max.: 100V DC• switching current, max.: 0.2A• transport current, max.: 0.5A• contact resistance: 150mW• insulation resistance (coil/contacts): 1012Ω• breakdown voltage, min. (coil/contacts): 1.500V DC• operate time, max. (incl. bounce): 2ms• release time, max.: 2ms• vibration resistance (10...2000Hz): 20G• temperature range: -20...+70°C• soldering temperature/time: 260°C/5scoil data: non-polarized, monostable

Specifications

manufacturer
Manufacturer's name DIP12-1C90-51L
Rated current [mA] 24
Nominal resistance [Ω] 500
Switching current [A] 0,25
Max. switching voltage [V] 175
Max. switching power [W] 3
Data Sheet

Unit price

6,09 €

Stock: 114
Further delivery:
CW 52/2024

Minimum order quantity 1 to 14 units or multiples of 25 plus 0 to 14 .
