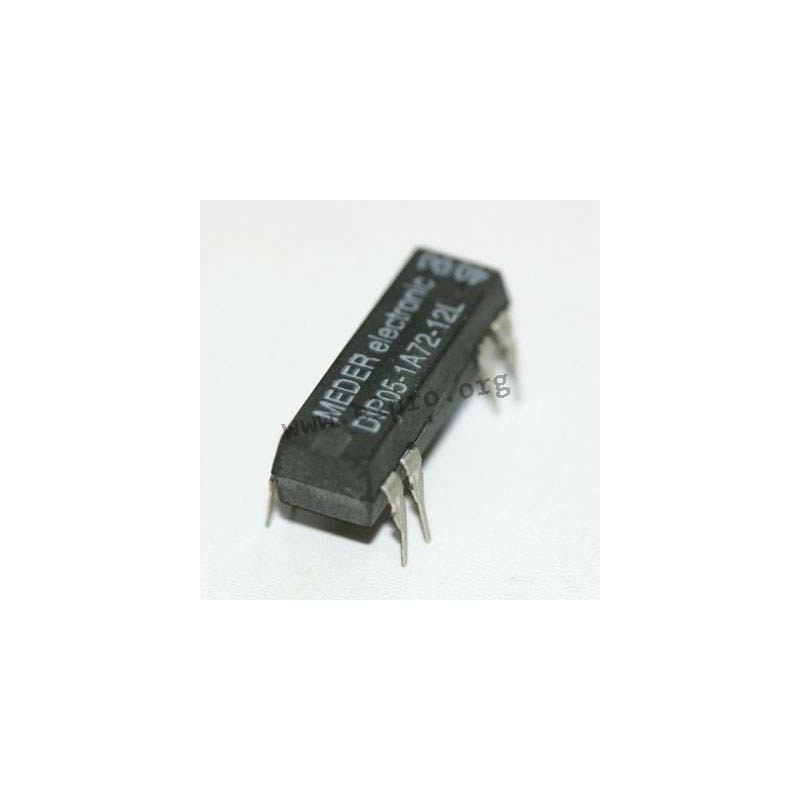

RR A 12 V

reed relays, DIL housing, 1 normally-open

• flux sealed construction
• plug-in a 14-pole DIP/DIL-IC socket
• TTL-control possible
• low-profile

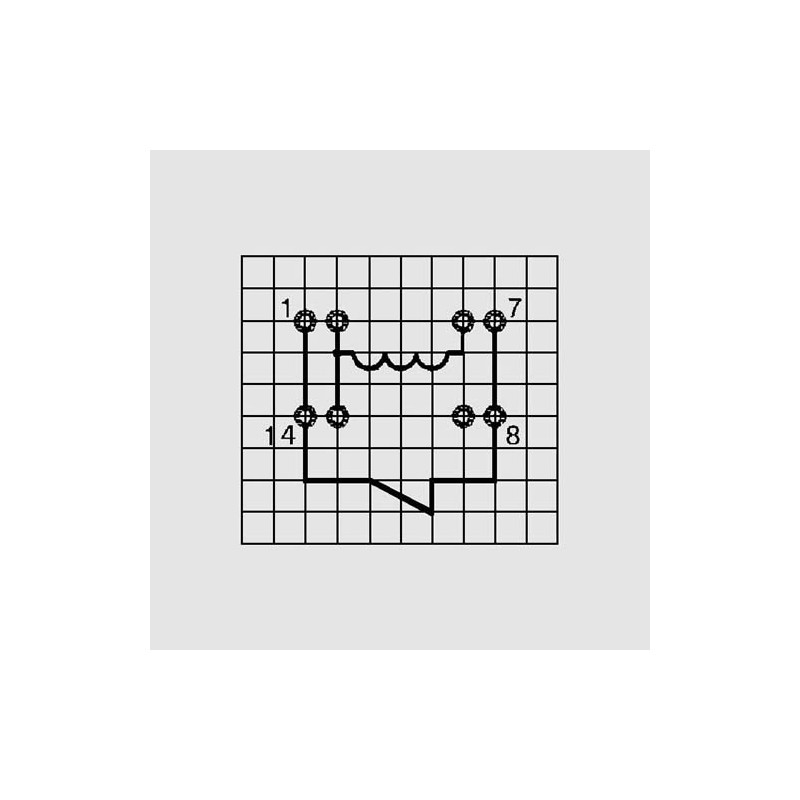

• configuration: SPST-NΩ
• switching capacity, max.: 10W
• switching voltage, max.: 200V DC
• switching current, max.: 0.5A
• transport current, max.: 1A
• contact resistance: 150mΩ
• insulation resistance (coil/contacts): 1012Ω
• breakdown voltage, min. (coil/contacts): 1.500V DC
• operate tTime, max. (incl. bounce): 0.5ms
• release time, max.: 0.1ms
• vibration resistance (10...2000Hz): 20G
• temperature range: -20...+70°C
• soldering temperature/time: 260°C/5s

coil data
• non-polarized, monostable

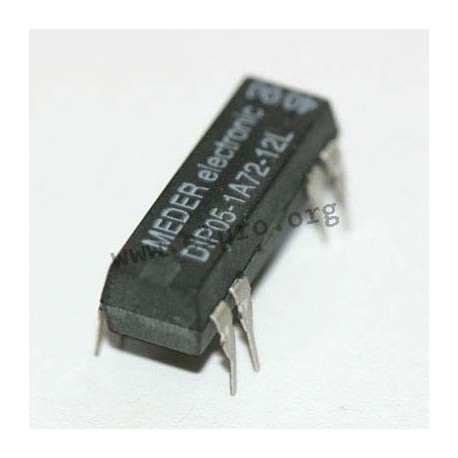

RR A 5 V

RR A 12 V

11787 RR A 12 V DIP12-1A72-12L DIP12-1A72-12L reed relays, DIL housing, 1 normally-open. • flux sealed construction• plug-in a 14-pole DIP/DIL-IC socket• TTL-control possible• low-profile• configuration: SPST-NΩ• switching capacity, max.: 10W• switching voltage, max.: 200V DC• switching current, max.: 0.5A• transport current, max.: 1A• contact resistance: 150mΩ• insulation resistance (coil/contacts): 1012Ω• breakdown voltage, min. (coil/contacts): 1.500V DC• operate tTime, max. (incl. bounce): 0.5ms• release time, max.: 0.1ms• vibration resistance (10...2000Hz): 20G• temperature range: -20...+70°C• soldering temperature/time: 260°C/5scoil data• non-polarized, monostable

Specifications

manufacturer
Manufacturer's name DIP12-1A72-12L
Rated current [mA] 12
Nominal resistance [Ω] 1000
Max. switching voltage [V] 200
Max. switching power [W] 15
Data Sheet

Unit price

1,86 €

Stock: 862
Further delivery:
CW 04/2025

Minimum order quantity 1 to 7 units or multiples of 25 plus 0 to 7 .
