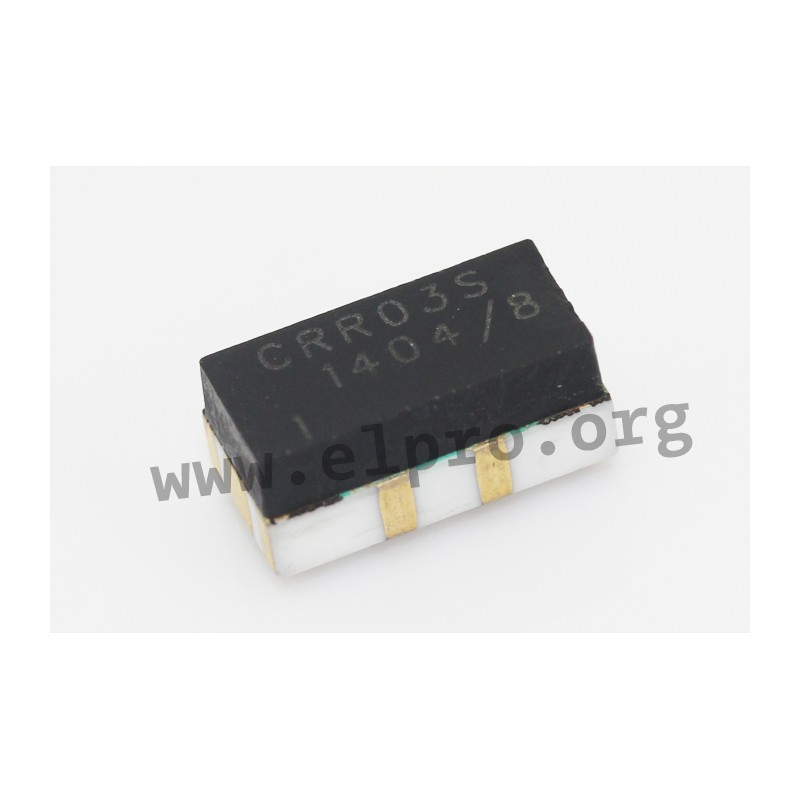

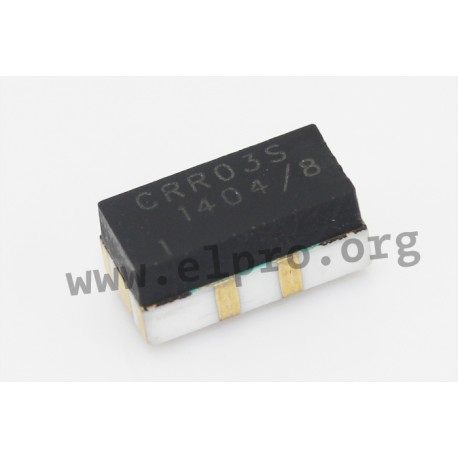

CRR 03-1A S

Standex-Meder SMD Reed Relays Series CRR

These miniature SMD reed relays with dimensions of 8.6x4.4x3.55mm are characterized by a very flat ceramic package. They are fully sealed and have a high insulation resistance up to 1014 Ohm.   Contact form 1AS (soldering ball). We are offering the types CRR 03-1A, CRR 03-1A S, CRR 03-1B, CRR 05-1A, CRR 05-1A S and CRR 05-1B by Standex Meder.

• SPST-NO
• switching capacity, max.: 10W
• switching voltage, max.: 170V DC
• switching current, max.: 0.5A
• transport current, max.: 1.0A
• contact resistance: 200 mΩ
• insulation resistance (coil/contacts): 10x1012Ω
• breakdown voltage, min. (coil/contacts): 210V DC
• operate time, max. (incl. bounce): 0.6ms
• release time, max.: 0.05ms
• vibration resistance: 20g
• temperatur range: -40 to +125°C
• soldering temperature/time: 260°C/5s

CRR 03-1A S

CRR 03-1A S

107624 CRR 03-1A S CRR03-1AS CRR03-1AS Standex-Meder SMD Reed Relays Series CRR. These miniature SMD reed relays with dimensions of 8.6x4.4x3.55mm are characterized by a very flat ceramic package. They are fully sealed and have a high insulation resistance up to 1014 Ohm.   Contact form 1AS (soldering ball). We are offering the types CRR 03-1A, CRR 03-1A S, CRR 03-1B, CRR 05-1A, CRR 05-1A S and CRR 05-1B by Standex Meder. • SPST-NO• switching capacity, max.: 10W• switching voltage, max.: 170V DC• switching current, max.: 0.5A• transport current, max.: 1.0A• contact resistance: 200 mΩ• insulation resistance (coil/contacts): 10x1012Ω• breakdown voltage, min. (coil/contacts): 210V DC• operate time, max. (incl. bounce): 0.6ms• release time, max.: 0.05ms• vibration resistance: 20g• temperatur range: -40 to +125°C• soldering temperature/time: 260°C/5s

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CRR03-1AS
Coil rated voltage [V DC] 3
Coil resistance [Ω] 70
Release voltage [V] 0,45
Nominal capacity [mW] 129
Data Sheet

Unit price

6,09 €

Stock: 4

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
