CRF03-1A

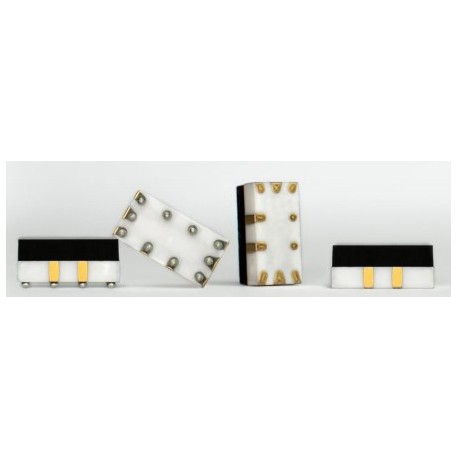

Standex Meder reed relay series CRF

  • miniature surface mount relays in a fully sealed ceramic housing
  • with a low profile, an SPST-NO contact and a high insulation resistance
  • suitable for frequencies of up to 7GHz
  • different contact forms available: CRF_1A (without soldering balls) or CRF_1AS (with soldering balls)
CRF03-1A, Standex Meder reed relays, SMD housing, CRF series

CRF03-1A

131497 CRF03-1A CRF03-1A Standex Meder reed relay series CRF. miniature surface mount relays in a fully sealed ceramic housing with a low profile, an SPST-NO contact and a high insulation resistance suitable for frequencies of up to 7GHz different contact forms available: CRF_1A (without soldering balls) or CRF_1AS (with soldering balls)

Specifications

manufacturer
Manufacturer's name CRF03-1A
Switching current, max. [A] 0,5
Switching voltage, max [V] 170
Switching capacity, max. [W] 10
Insulation resistance [Ω] 10^10
Data Sheet

Unit price

7,79 €

Stock: 247
Further delivery:
CW 14/2025
