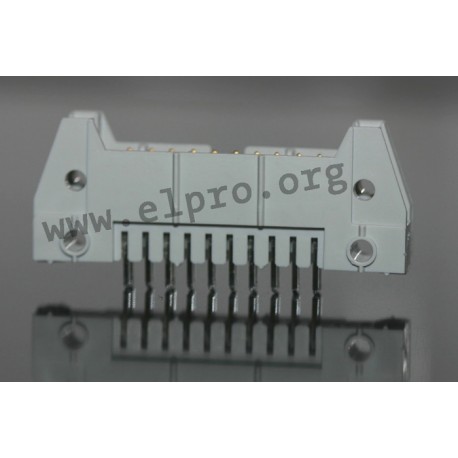

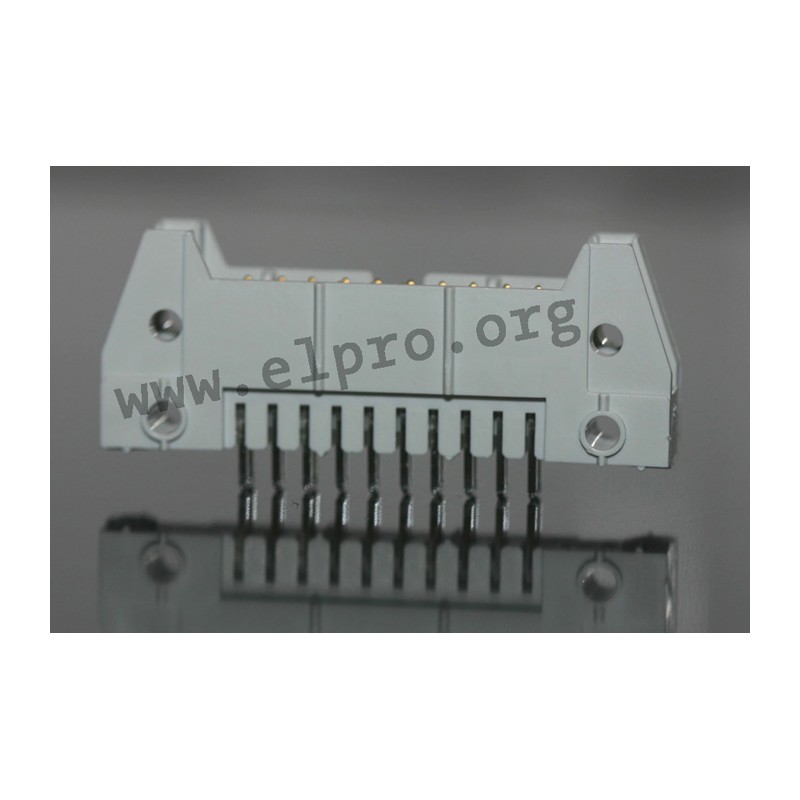

ML 40 G

multiple connectors

• straight
• colour: grey
• without locking lever
• pitch: 2.54mm
• PBT 20% glass fibre
• contacts: copper alloy
• contact surface: gold over nickel
• rated current: 1A
• contact resistance: 20mΩ
• insulation resistance (500V DC), min: 5000MΩ
• temperature range: -25...+85°C

ML 40 G

ML 40 G

11738 ML 40 G SPMH40S-3000 SPMH40S-3000 multiple connectors. • straight• colour: grey• without locking lever• pitch: 2.54mm• PBT 20% glass fibre• contacts: copper alloy• contact surface: gold over nickel• rated current: 1A• contact resistance: 20mΩ• insulation resistance (500V DC), min: 5000MΩ• temperature range: -25...+85°C

Specifications

manufacturer
Manufacturer's name SPMH40S-3000
Number of poles 40

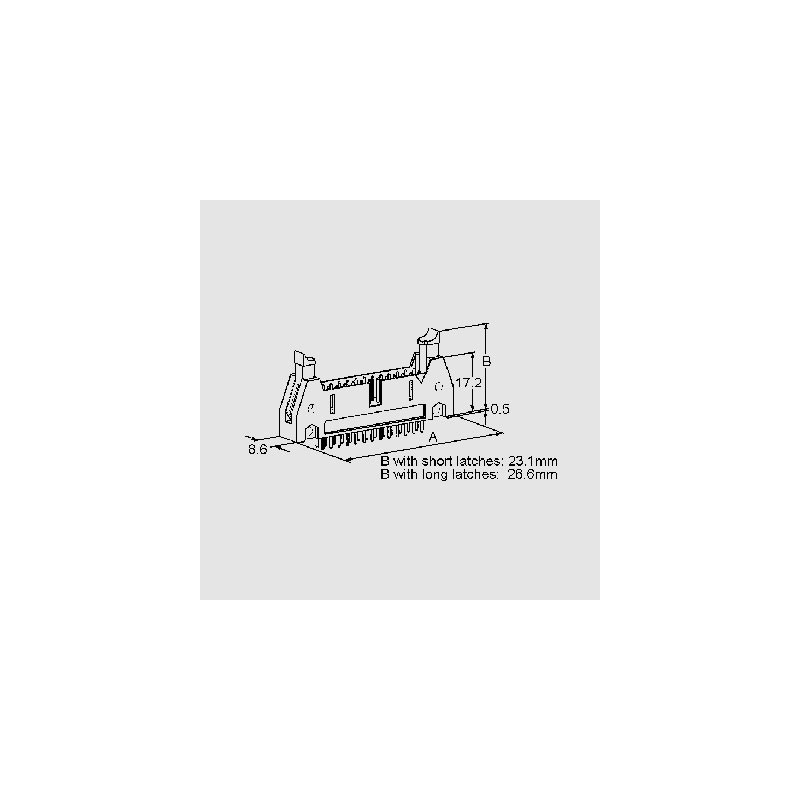

A [mm] 70,3
Width [mm] 66

Unit price

1,30 €

Stock: 145
Further delivery:
CW 05/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
