> Passive elements>IDC connectors>IDC male headers, pitch: 2.54mm>Speed box headers, pitch 2,54mm, angled, SPMH series>ML 40 A

Manufacturers

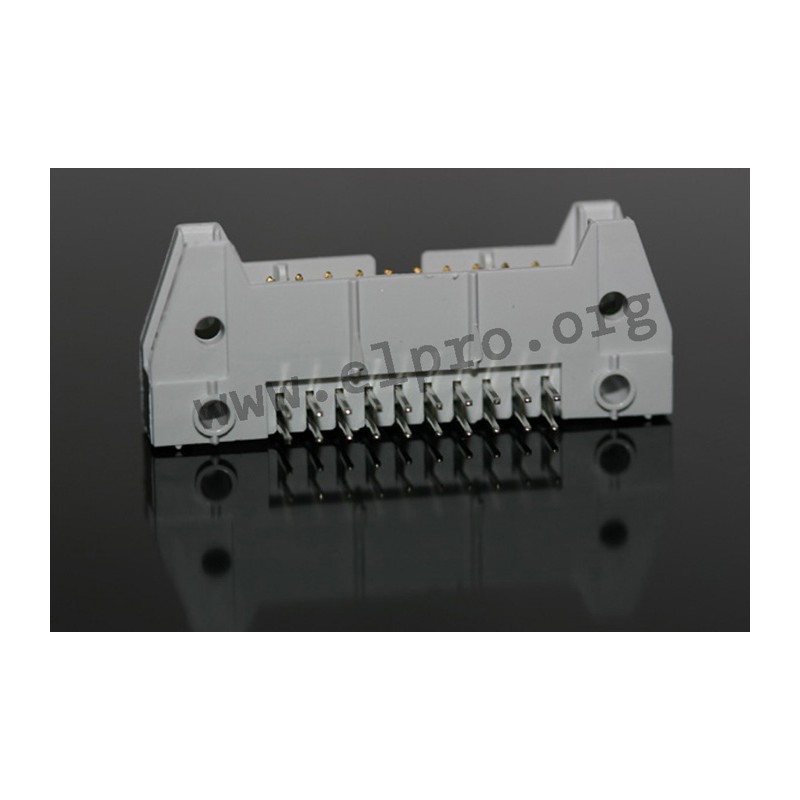

ML 40 A

multipole connectors

• angled
• colour: grey
• without locking levers
• pitch: 2.54mm
• PBT 20% glass fibre
• contacts: copper alloy
• contact surface: gold over nickel
• rated current: 1A
• contact resistance: 20mΩ
• insulation resistance (500V DC), min: 5000MΩ
• temperature range: -25...+85°C

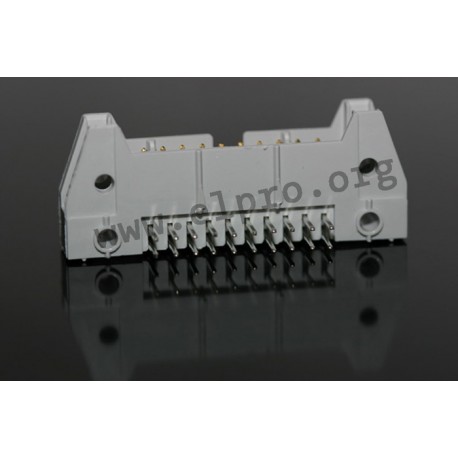

MLW 20 A

ML 40 A

11730 ML 40 A SPMH40A-3000 SPMH40A-3000 multipole connectors. • angled• colour: grey• without locking levers• pitch: 2.54mm• PBT 20% glass fibre• contacts: copper alloy• contact surface: gold over nickel• rated current: 1A• contact resistance: 20mΩ• insulation resistance (500V DC), min: 5000MΩ• temperature range: -25...+85°C

Specifications

manufacturer
Manufacturer's name SPMH40A-3000
Number of poles 40

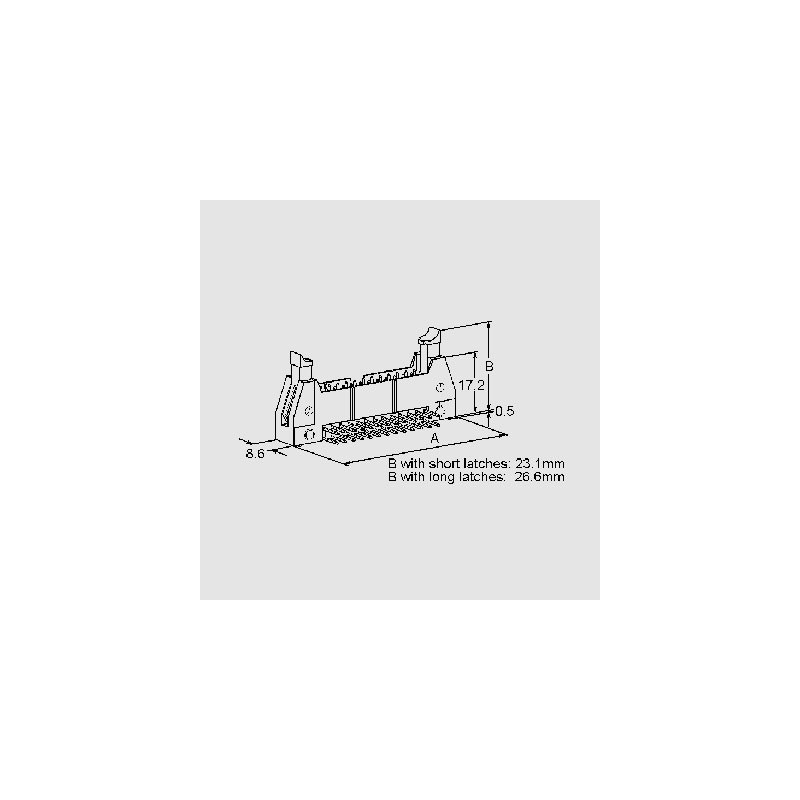

A [mm] 70,3
Width [mm] 59,94

Unit price

1,51 €

Stock: 105
Further delivery:
CW 05/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
