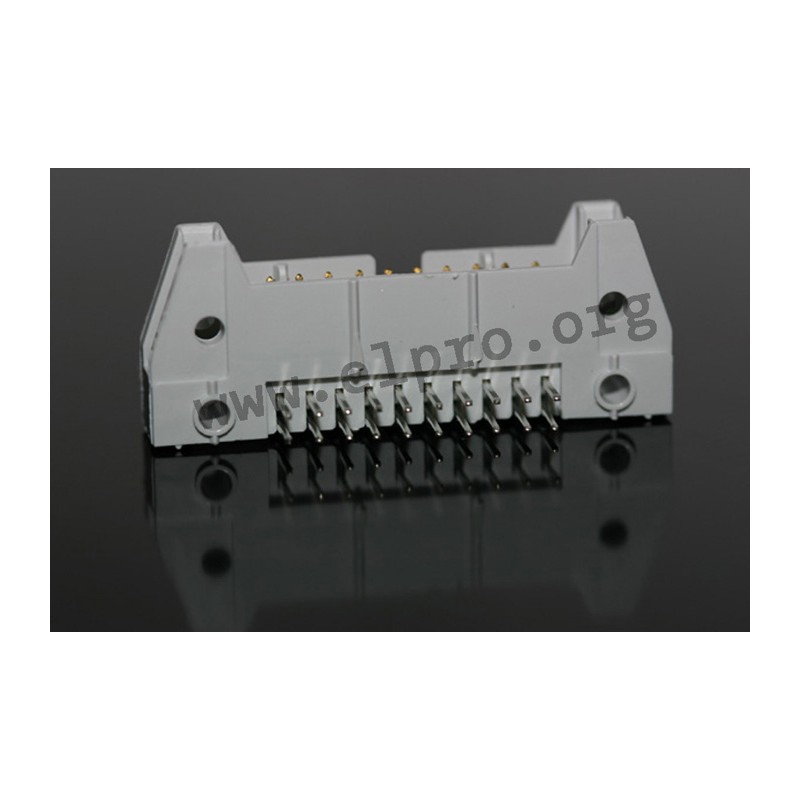

ML 34 A

multipole connectors

• angled
• colour: grey
• without locking levers
• pitch: 2.54mm
• PBT 20% glass fibre
• contacts: copper alloy
• contact surface: gold over nickel
• rated current: 1A
• contact resistance: 20mΩ
• insulation resistance (500V DC), min: 5000MΩ
• temperature range: -25...+85°C

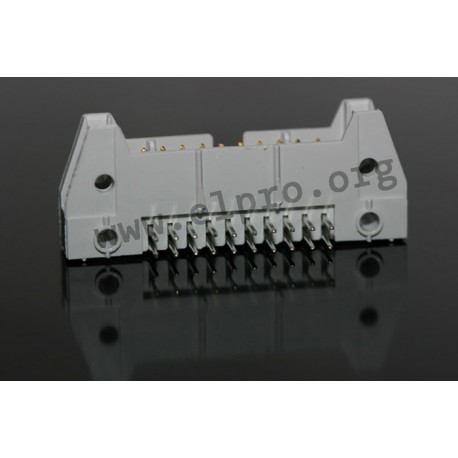

MLW 20 A

ML 34 A

11729 ML 34 A SPMH34A-3000 SPMH34A-3000 multipole connectors. • angled• colour: grey• without locking levers• pitch: 2.54mm• PBT 20% glass fibre• contacts: copper alloy• contact surface: gold over nickel• rated current: 1A• contact resistance: 20mΩ• insulation resistance (500V DC), min: 5000MΩ• temperature range: -25...+85°C

Specifications

manufacturer
Manufacturer's name SPMH34A-3000
Number of poles 34

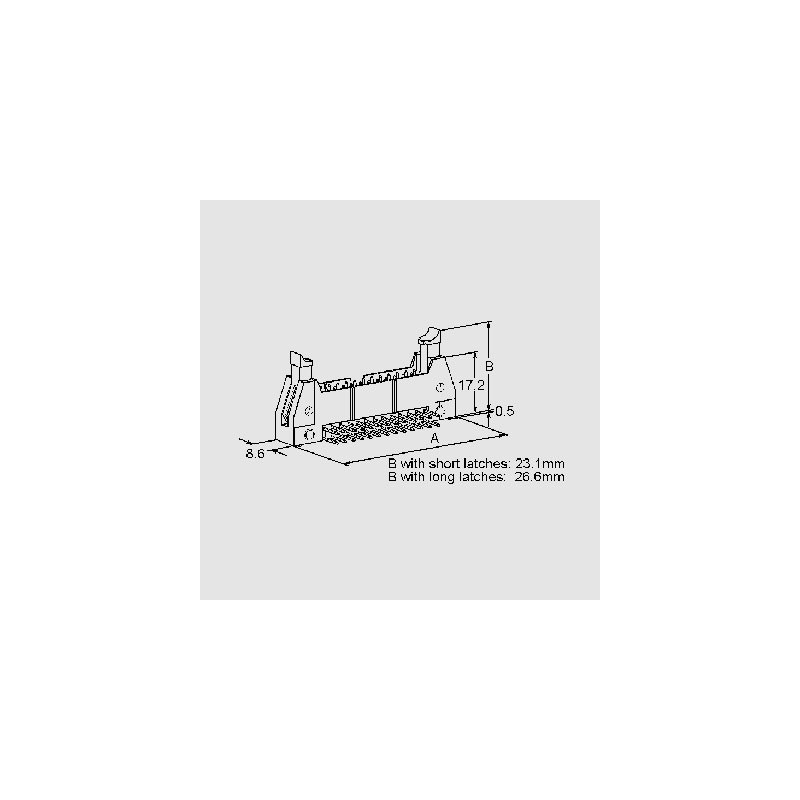

A [mm] 62,6
Width [mm] 52,32

Unit price

1,39 €

Stock: 140
Next incoming goods:
CW 02/2025
140 units

Further delivery:
CW 05/2025

Minimum order quantity 10 units or
multiples of 10.
