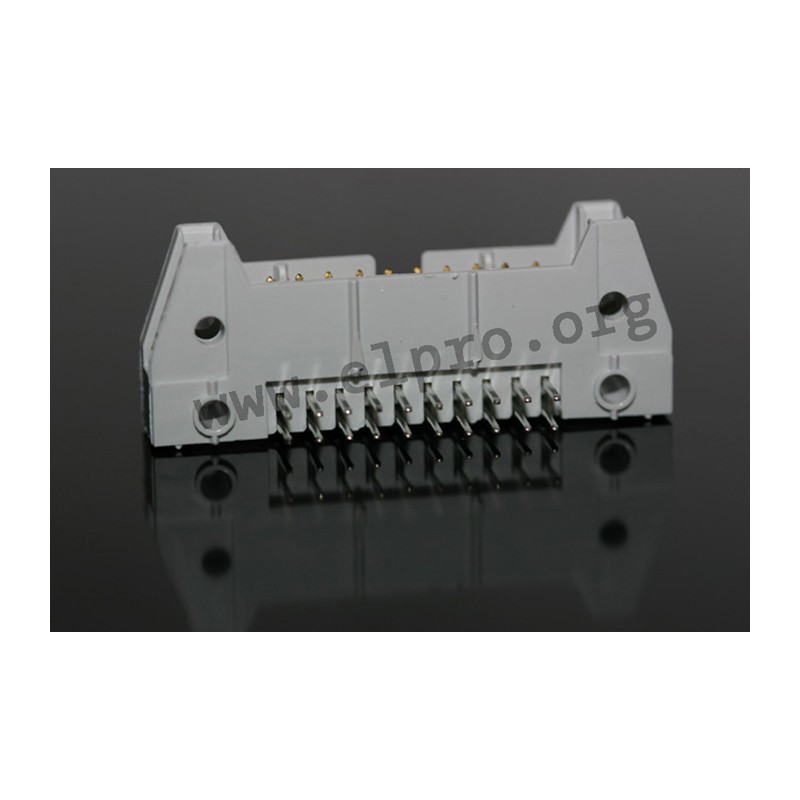

ML 20 A

multipole connectors

• angled
• colour: grey
• without locking levers
• pitch: 2.54mm
• PBT 20% glass fibre
• contacts: copper alloy
• contact surface: gold over nickel
• rated current: 1A
• contact resistance: 20mΩ
• insulation resistance (500V DC), min: 5000MΩ
• temperature range: -25...+85°C

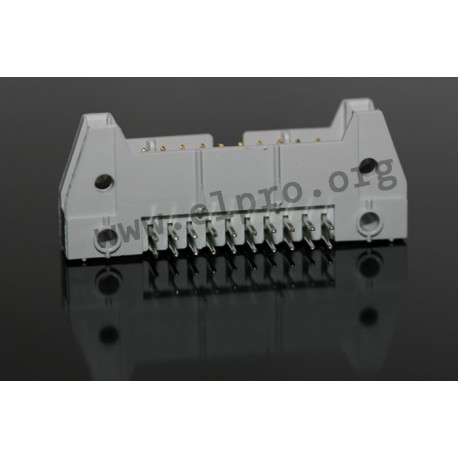

MLW 20 A

ML 20 A

11727 ML 20 A SPMH20A-3000 SPMH20A-3000 multipole connectors. • angled• colour: grey• without locking levers• pitch: 2.54mm• PBT 20% glass fibre• contacts: copper alloy• contact surface: gold over nickel• rated current: 1A• contact resistance: 20mΩ• insulation resistance (500V DC), min: 5000MΩ• temperature range: -25...+85°C

Specifications

manufacturer
Manufacturer's name SPMH20A-3000
Number of poles 20

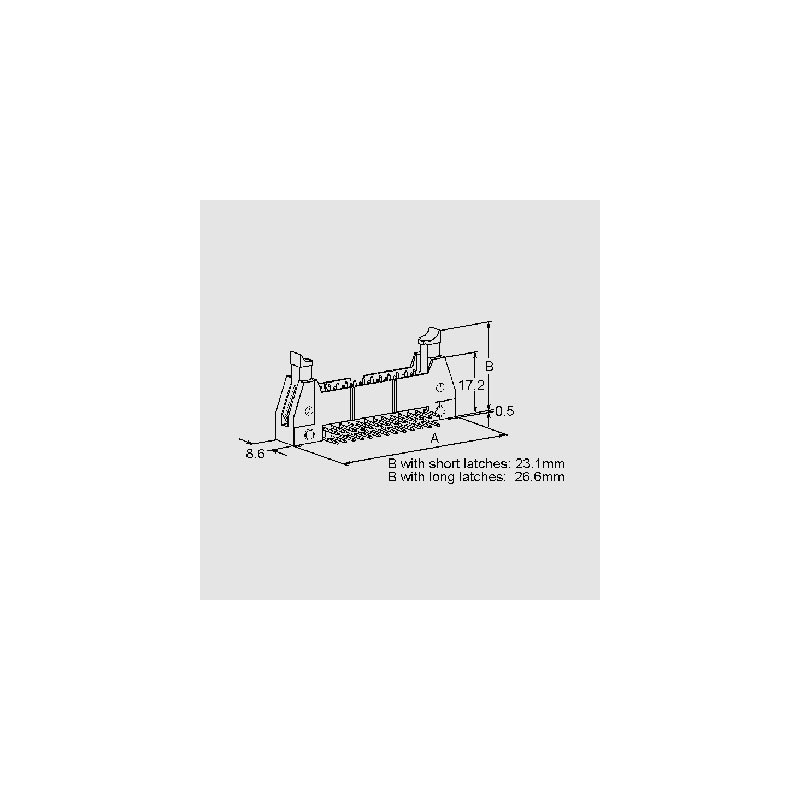

A [mm] 44,9
Width [mm] 34,54

Unit price

0,86 €

Stock: 30
Further delivery:
CW 01/2024

Minimum order quantity 10 units or
multiples of 10.
