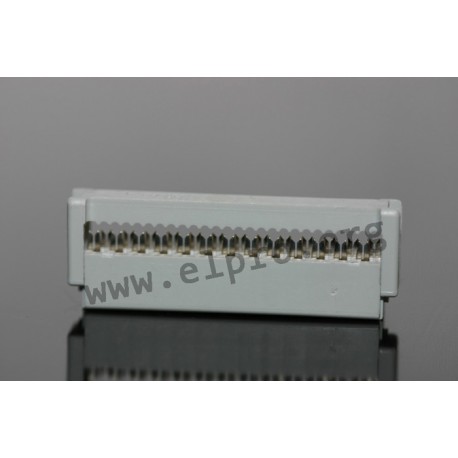

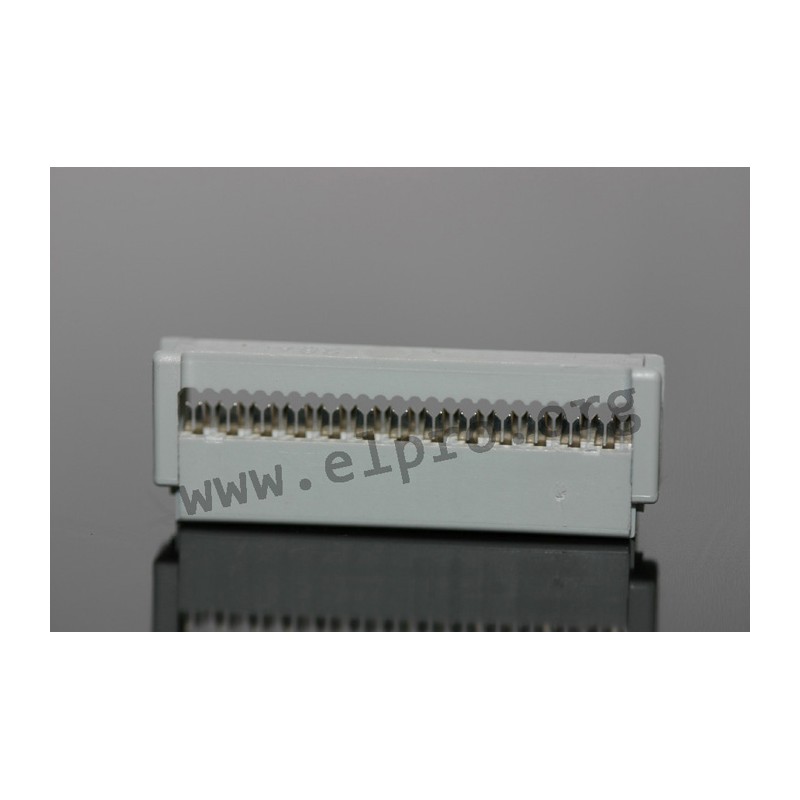

FL 60
* for flat cables, without strain relief
* colour: grey, RAL 7035
* pitch: 2.54mm
* polyester, glass fibre, UL94V-0
* contact material: copper alloy
* contact surface: selective gold over nickel
* rated current: 1A
* test voltage: 1000Veff
* temperature range: -65...+150°C

suitable strain reliefs
FL 60

FL 60

7869 FL 60 SPFH60-3000 SPFH60-3000 * for flat cables, without strain relief* colour: grey, RAL 7035* pitch: 2.54mm* polyester, glass fibre, UL94V-0* contact material: copper alloy* contact surface: selective gold over nickel* rated current: 1A* test voltage: 1000Veff* temperature range: -65...+150°Csuitable strain reliefs

Specifications

manufacturer
Manufacturer's name SPFH60-3000
Number of poles 60

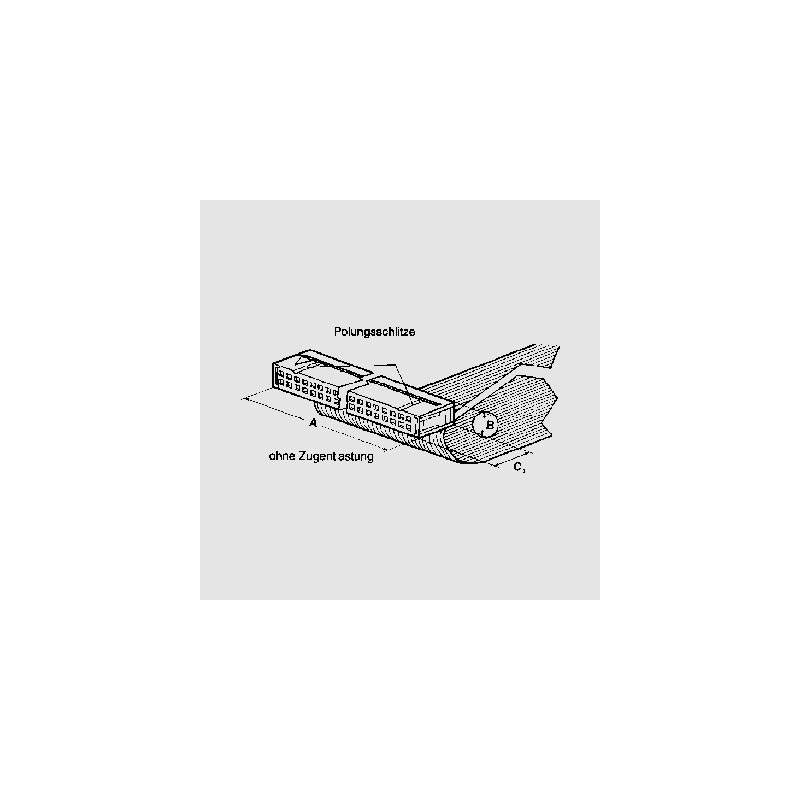

A [mm] 80,8
Width [mm] 6,1
C [mm] 10,4

Unit price

0,982 €

Stock: 205
Further delivery:
CW 02/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
