> Passive elements>IDC connectors>IDC female headers, pitch: 2.54mm>Speed IDC female headers, pitch 2,54mm, standard version, SPFH series>FL 14

Manufacturers

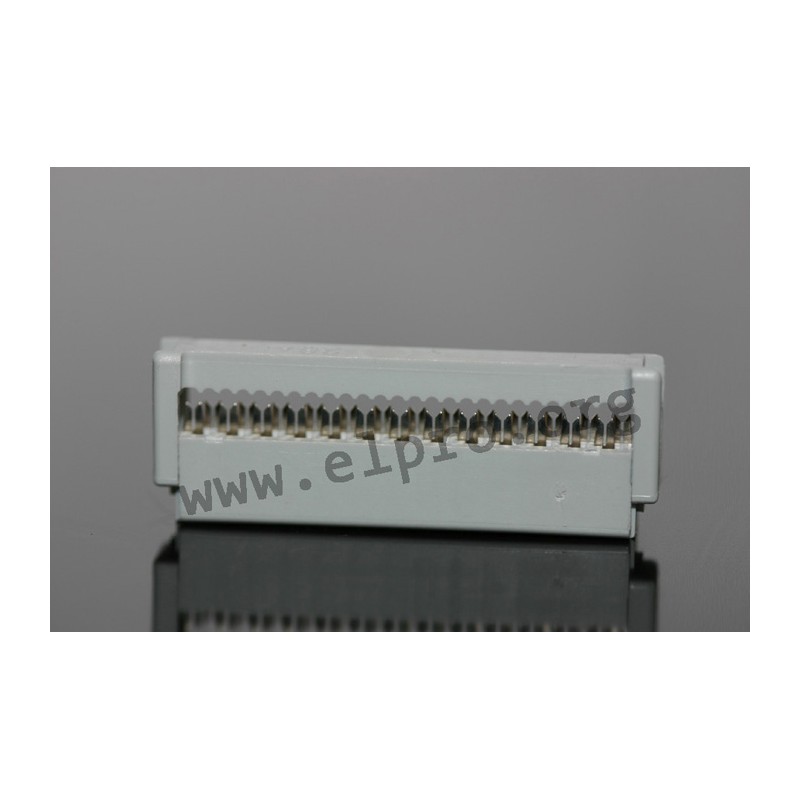

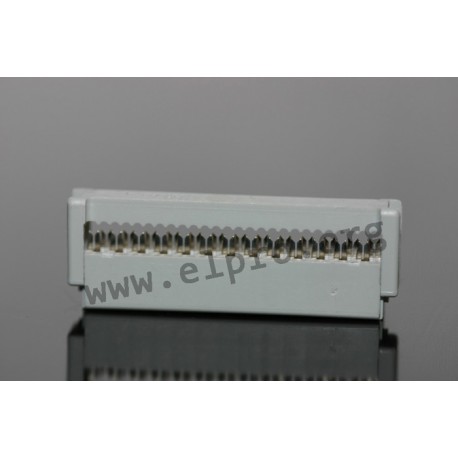

FL 14
* for flat cables, without strain relief
* colour: grey, RAL 7035
* pitch: 2.54mm
* polyester, glass fibre, UL94V-0
* contact material: copper alloy
* contact surface: selective gold over nickel
* rated current: 1A
* test voltage: 1000Veff
* temperature range: -65...+150°C

suitable strain reliefs
FL 14

FL 14

7849 FL 14 SPFH14-3000 SPFH14-3000 * for flat cables, without strain relief* colour: grey, RAL 7035* pitch: 2.54mm* polyester, glass fibre, UL94V-0* contact material: copper alloy* contact surface: selective gold over nickel* rated current: 1A* test voltage: 1000Veff* temperature range: -65...+150°Csuitable strain reliefs

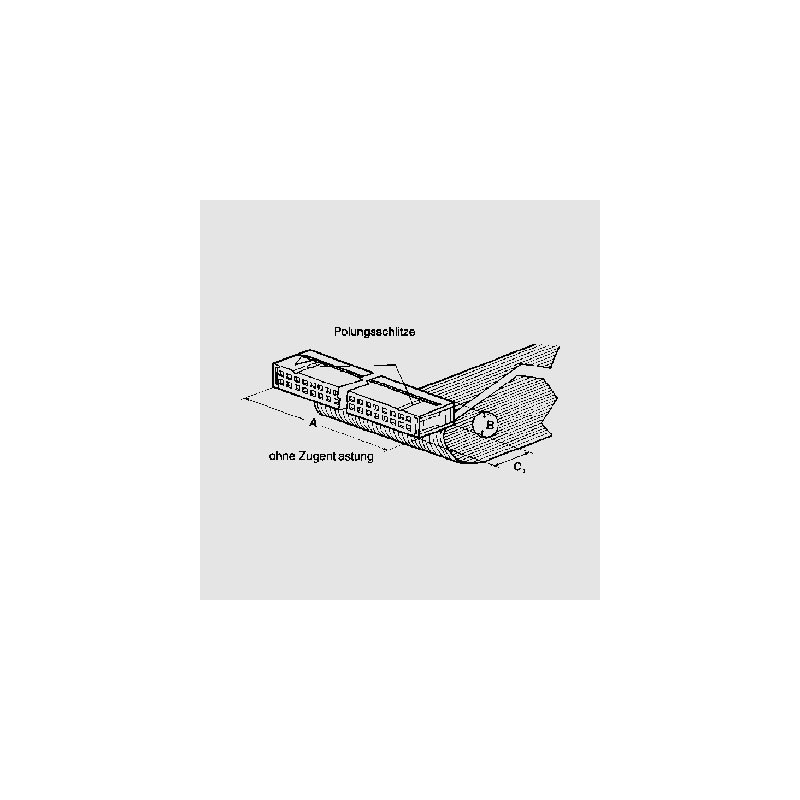

Specifications

manufacturer
Manufacturer's name SPFH14-3000
Number of poles 14
A [mm] 22,4
Width [mm] 6,1
C [mm] 10,4

Unit price

0,321 €

Stock: 3201
Next incoming goods:
CW 02/2025
350 units

Further delivery:
CW 05/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
