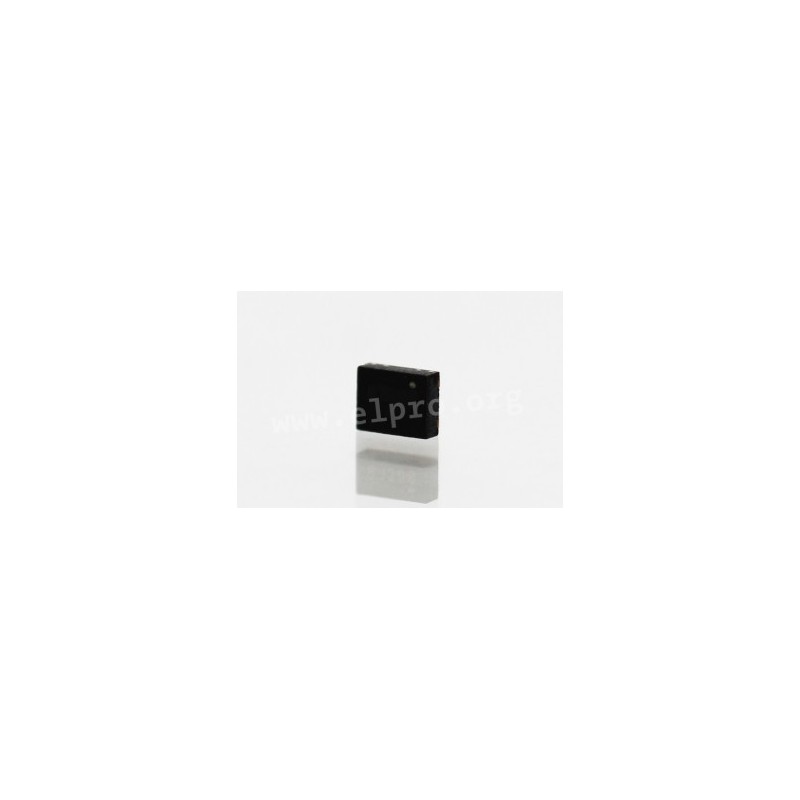

SIT8008BI-22-XXS-50.000000E

SITIME MEMS oscillator series SIT8008BI

These silicon-based oscillators are characterised by a low power consumption of 3.5mA/1.8V and small dimensions. The supply voltage is 2.5 to 3.3V ±10%. The devices can be applied in clock generators, for processors and FPGAs, network switches and gateways, CCTV and surveillance equipment and are suitable for DSC, DVC, DVR, IP Cam, tablets, e-books, SSD, GPON, EPON and for high-speed serial protocols such as USB, SATA, SAS, Firewire and Ethernet (100M, 1G, 10G). We offer various types by manufacturer SiTime.

  • dimensions SIT8008BI-12-XXS: 2.5 x 2.0 x 0.75mm
  • dimensions SIT8008BI-22-XXS: 3.2 x 2.5 x 0.75mm
  • frequency: 1 to 109.9MHz
  • 3.1 to 5.9mA
  • frequency stability : ±25ppm
  • operating temperature range: -40 to +85°C
SiTime SIT8008BI series

SIT8008BI-22-XXS-50.000000E

108722 SIT8008BI-22-XXS-50.000000E SIT8008BI-22-XXS-50.000000E SITIME MEMS oscillator series SIT8008BI. These silicon-based oscillators are characterised by a low power consumption of 3.5mA/1.8V and small dimensions. The supply voltage is 2.5 to 3.3V ±10%. The devices can be applied in clock generators, for processors and FPGAs, network switches and gateways, CCTV and surveillance equipment and are suitable for DSC, DVC, DVR, IP Cam, tablets, e-books, SSD, GPON, EPON and for high-speed serial protocols such as USB, SATA, SAS, Firewire and Ethernet (100M, 1G, 10G). We offer various types by manufacturer SiTime. dimensions SIT8008BI-12-XXS: 2.5 x 2.0 x 0.75mm dimensions SIT8008BI-22-XXS: 3.2 x 2.5 x 0.75mm frequency: 1 to 109.9MHz 3.1 to 5.9mA frequency stability : ±25ppm operating temperature range: -40 to +85°C

Specifications

manufacturer
Manufacturer's name SIT8008BI-22...
Data Sheet

Unit price

0,77 €

Stock: 0
Further delivery:
CW 52/2024

Minimum order quantity 5 units or
multiples of 5.
