SX82112811210000

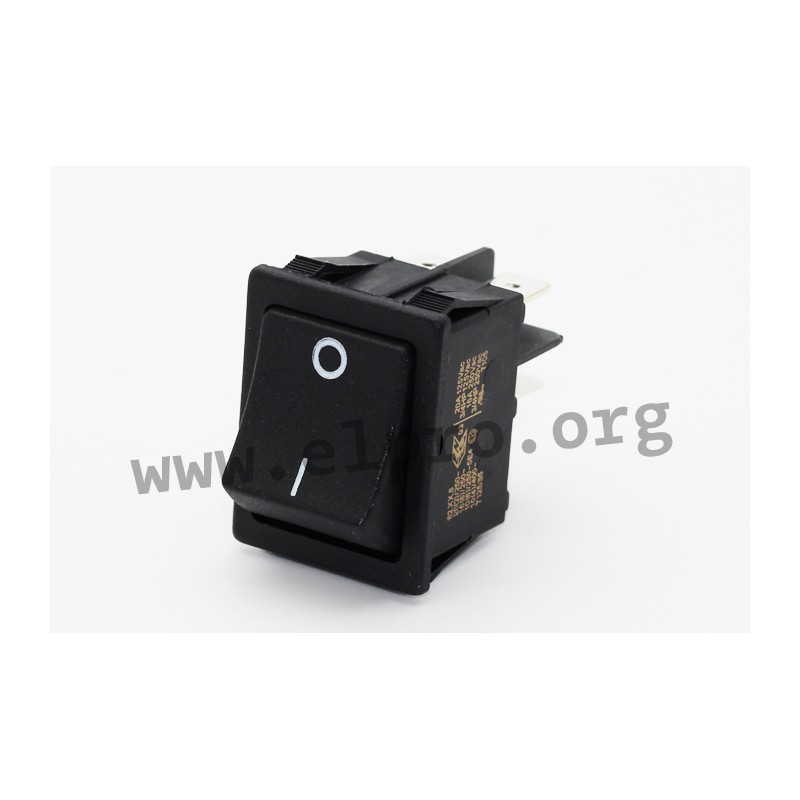

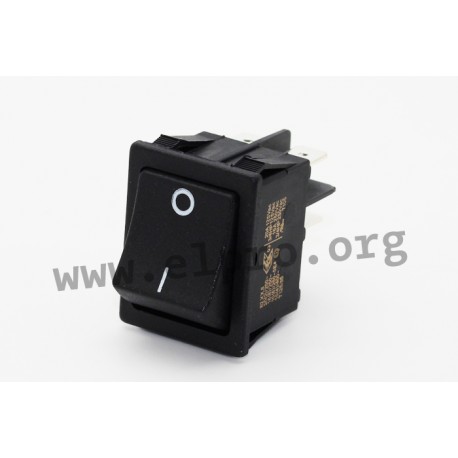

Signal Lux rocker switch series SX82

Rocker switches for 22 x 30mm panel cut-outs and with a maximal switching current of 20A (16A at inductive load) and a maximal operating voltage of 250V AC. These 2-pole switches are in compliance with the flammability class UL94V2, have a blade connector (6,3 x 0,8mm) as well as a contact gap of 3mm and is suited for an operating temperature of up to 125°C. We offer the type SX82112811210000 with a black rocker, the type SX8211881E210000 with a green illuminated rocker and the type SX8211881G210000 with a red illuminated rocker.

SX82112811210000, 20A, for 22x30mm panel cut-out, SX82 series

SX82112811210000

113555 SX82112811210000 SX82112811210000 Signal Lux rocker switch series SX82. Rocker switches for 22 x 30mm panel cut-outs and with a maximal switching current of 20A (16A at inductive load) and a maximal operating voltage of 250V AC. These 2-pole switches are in compliance with the flammability class UL94V2, have a blade connector (6,3 x 0,8mm) as well as a contact gap of 3mm and is suited for an operating temperature of up to 125°C. We offer the type SX82112811210000 with a black rocker, the type SX8211881E210000 with a green illuminated rocker and the type SX8211881G210000 with a red illuminated rocker.

Specifications

manufacturer
Manufacturer's name SX82112811210000
Switch positions 2xE/A
Case colour black
Rocker black
Rocker imprint I/O
Illumination unlighted
Switching current [A] 20
Panel cut-out [mm] 22 x 30
Data Sheet

Unit price

0,972 €

Stock: 1889
Further delivery:
CW 13/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
