SX81111811210000

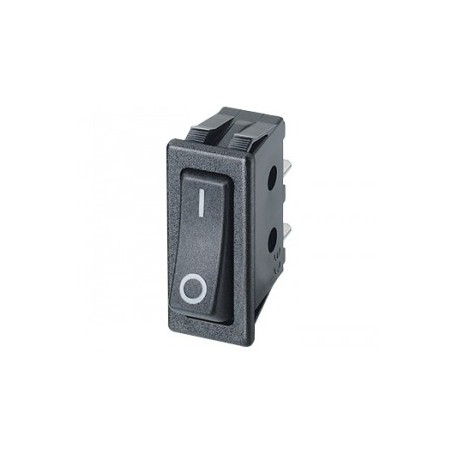

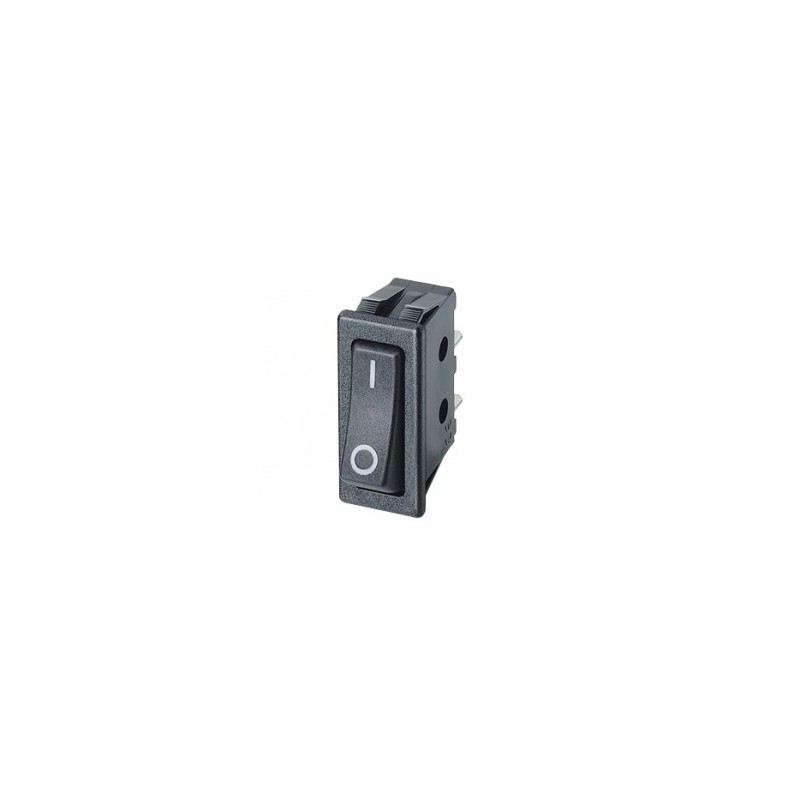

Signal Lux rocker switch series SX82

Rocker switches for 11 x 30mm panel cut-outs and with a maximal switching current of 20A (16A at inductive load) and a maximal operating voltage of 250V AC. These 1-pole switches are in compliance with the flammability class UL94V2, have a blade connector (6,3 x 0,8mm) as well as a contact gap of 3mm and is suited for an operating temperature of up to 125°C. We offer the type SX81111811210000 with a black rocker.

SX81111811210000, 20A, for 11x30mm panel cut-out, SX81 series

SX81111811210000

113554 SX81111811210000 SX81111811210000 Signal Lux rocker switch series SX82. Rocker switches for 11 x 30mm panel cut-outs and with a maximal switching current of 20A (16A at inductive load) and a maximal operating voltage of 250V AC. These 1-pole switches are in compliance with the flammability class UL94V2, have a blade connector (6,3 x 0,8mm) as well as a contact gap of 3mm and is suited for an operating temperature of up to 125°C. We offer the type SX81111811210000 with a black rocker.

Specifications

manufacturer
Manufacturer's name SX81111811210000
Switch positions SPST
Case colour black
Rocker black
Rocker imprint I/O
Illumination unlighted
Switching current [A] 20
Panel cut-out [mm] 11 x 30
Data Sheet

Unit price

0,672 €

Stock: 810
Next incoming goods:
CW 47/2024
2000 units

Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
