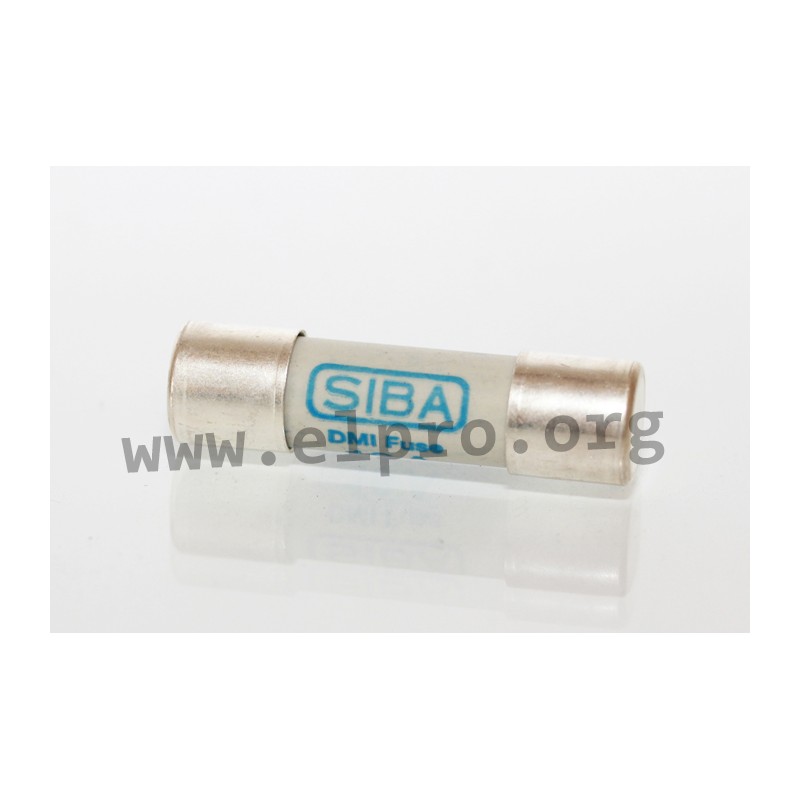

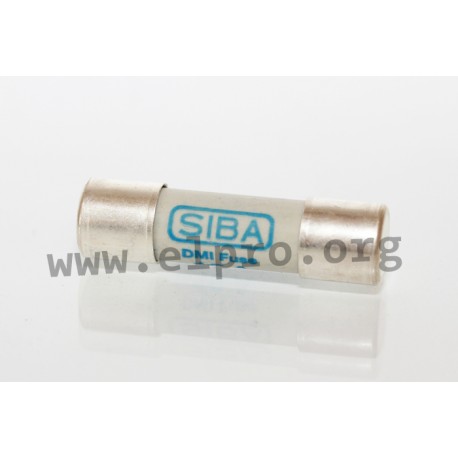

10x38 FF 16 A

fuse links 5019906 by SIBA

* housing: 10x38mm
* ceramic tube with filling, non transparent
* end caps brass, nickel-plated
* rated voltage: 1000V AC/DC
* characteristic: gR (short circuit and over load)
* by SIBA
10x38 FF 16 A

10x38 FF 16 A

44688 10x38 FF 16 A 5019906.16 5019906.16 fuse links 5019906 by SIBA. * housing: 10x38mm* ceramic tube with filling, non transparent* end caps brass, nickel-plated* rated voltage: 1000V AC/DC* characteristic: gR (short circuit and over load)* by SIBA

Specifications

manufacturer
Manufacturer's name 5019906.16
Design very fast acting
BAV@1000V DC [kA] 30
Power output [W] 2,1
Melting integral [A²s] 30
Rated current [A] 16
Data Sheet

Unit price

7,19 €

Stock: 193
Further delivery:
CW 04/2025
