10x38 FF 1 A

fuse links 5019906 by SIBA

• housing: 10x38mm
• ceramic tube with filling, non transparent
• end caps brass, nickel-plated
• rated voltage: 1000V AC/DC
• characteristic: gR (short circuit and over load)
• by SIBA

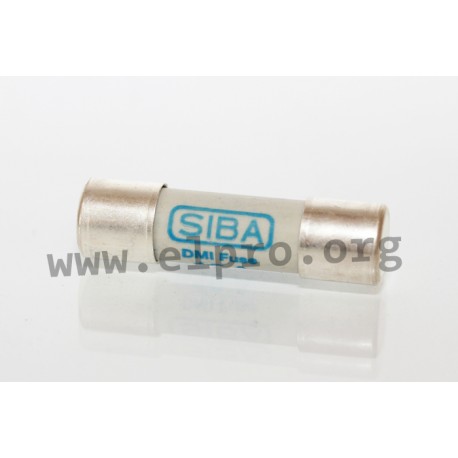

10x38 FF series

10x38 FF 1 A

44680 10x38 FF 1 A 5019906.1 5019906.1 fuse links 5019906 by SIBA. * housing: 10x38mm* ceramic tube with filling, non transparent* end caps brass, nickel-plated* rated voltage: 1000V AC/DC* characteristic: gR (short circuit and over load)* by SIBA

Specifications

manufacturer
Manufacturer's name 5019906.1
Design very fast acting
BAV@1000V DC [kA] 30
Power output [W] 0,3
Melting integral [A²s] 0,45
Data Sheet

Unit price

7,19 €

Stock: 155
Further delivery:
CW 19/2025
