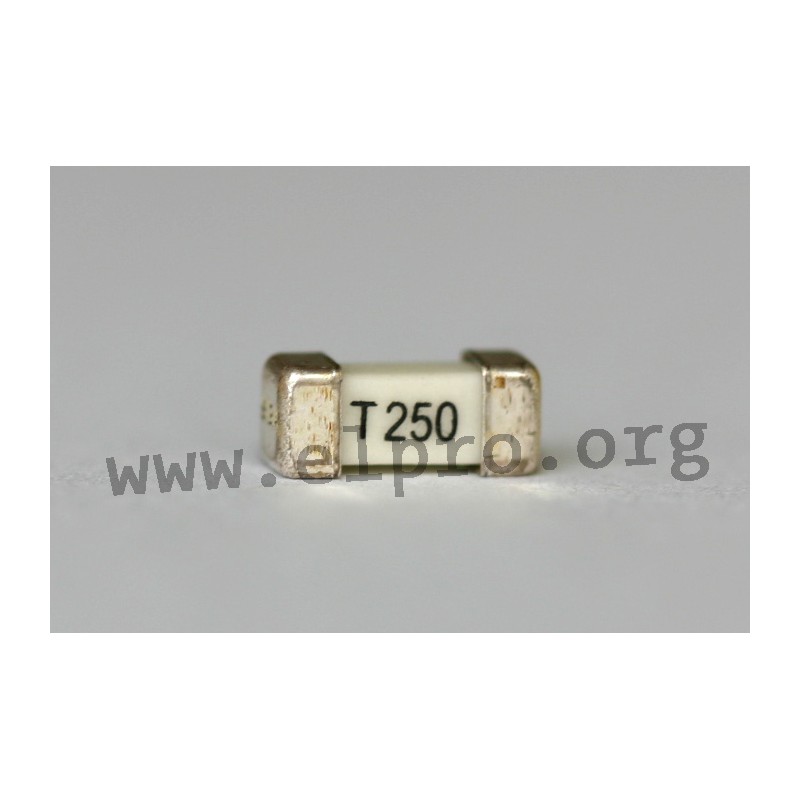

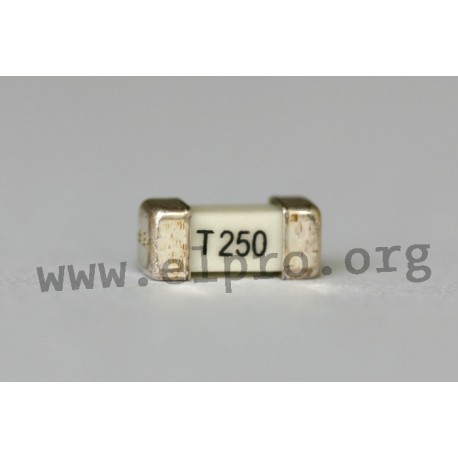

KS T 0,25 A SMD

SMD miniature fuse links 6125 by SIBA

* trip out: time lag

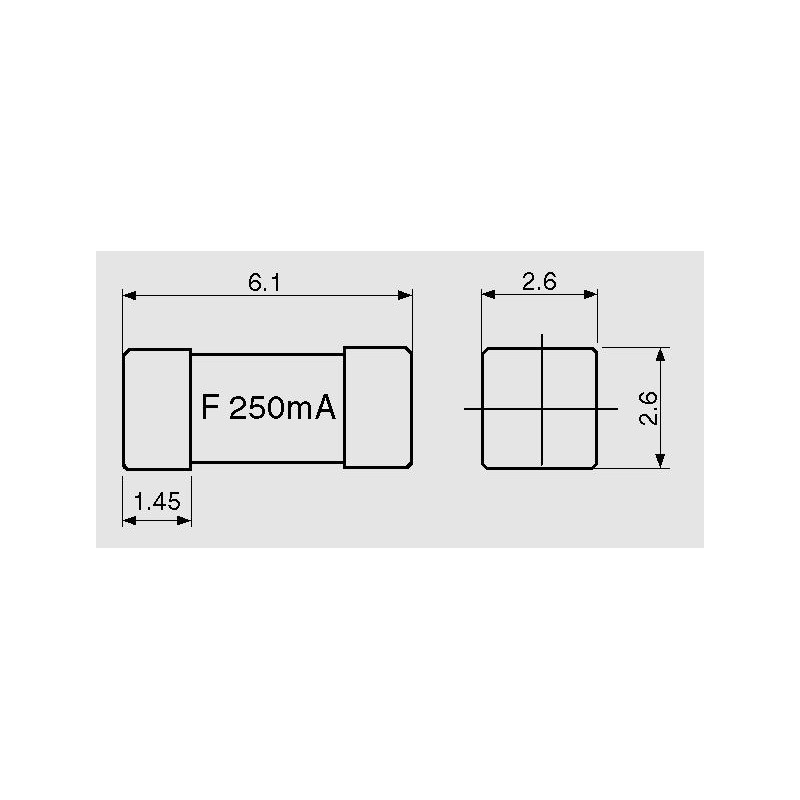

* housing: 6125 (6.1x2.6x2.6mm)
* by Siba
* ceramic tube non-transparent
* contact caps: brass, silver-plated
* used to resist high and slow-blowing inrush currents
* rated voltage: 125V AC/DC
* switching capacity (@ AC/DC 125V): 50A
* soldering heat resistance (acc. IEC60068): 260°C/10s
fusing time limits:
* 1xIN, min.: 4h
* 2xIN, max.: 5s
* 10xIN, min.: 10...100ms
* by SIBA

KS T 0,25 A SMD

KS T 0,25 A SMD

4124 KS T 0,25 A SMD 158000.0,25GT 158000.0,25GT SMD miniature fuse links 6125 by SIBA. * trip out: time lag* housing: 6125 (6.1x2.6x2.6mm)* by Siba* ceramic tube non-transparent* contact caps: brass, silver-plated* used to resist high and slow-blowing inrush currents* rated voltage: 125V AC/DC* switching capacity (@ AC/DC 125V): 50A* soldering heat resistance (acc. IEC60068): 260°C/10sfusing time limits:* 1xIN, min.: 4h* 2xIN, max.: 5s* 10xIN, min.: 10...100ms* by SIBA

Specifications

manufacturer
Manufacturer's name 158000.0,25GT
Design time lag
Rated current [mA] 250
Data Sheet

Unit price

0,307 €

Stock: 5300
Further delivery:
CW 16/2025

Minimum order quantity 100 units or
multiples of 100.
