> Passive elements>Fuses>SMD micro fuses>Siba SMD fuses, fast acting, 6125 housing, 157000 series>KS F 4 A SMD

Manufacturers

KS F 4 A SMD

SMD fuses 6125

* trip out: fast acting

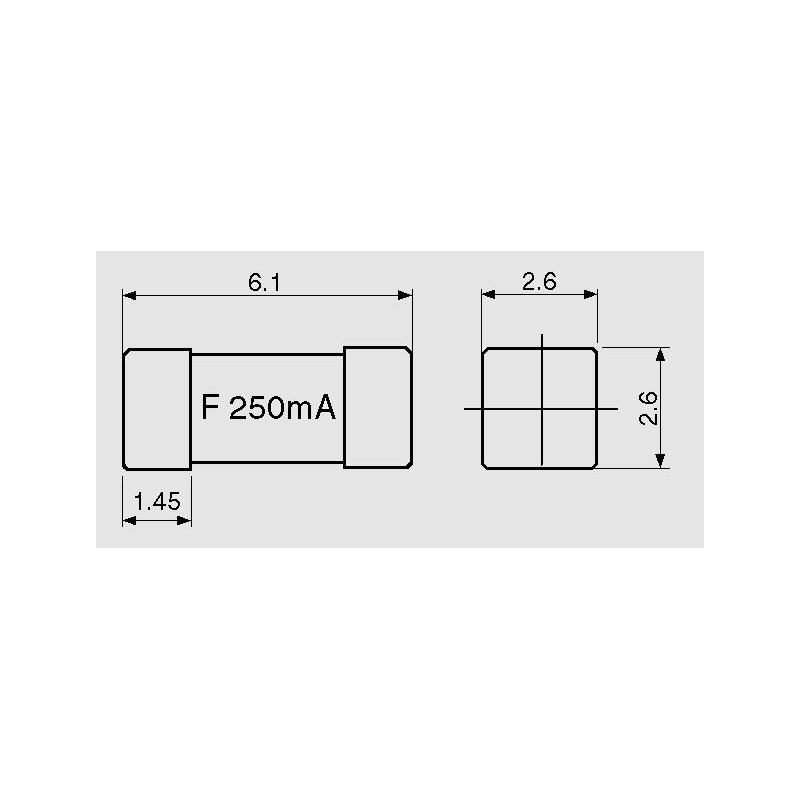

* housing: 6125 (6.1x2.6x2.6mm)
* by Siba
* ceramic tube non-transparent
* contact caps: brass, silver-plated
* protect devices and unit against high overcurrent and short-circuit current
* used in circuits without in-rush current or as a power fuse
* rated voltage: 125V AC/65V DC
* switching capacity (@ AC/DC 125V/65V): 50A
* soldering heat resistance (acc. IEC60068): 260°C/10s
fusing time limits:
* 1xIN: 4h...5s
* 10xIN, max.: 10s
KS F 2 A SMD

KS F 4 A SMD

4123 KS F 4 A SMD 157000.4GT 157000.4GT SMD fuses 6125. * trip out: fast acting* housing: 6125 (6.1x2.6x2.6mm)* by Siba* ceramic tube non-transparent* contact caps: brass, silver-plated* protect devices and unit against high overcurrent and short-circuit current* used in circuits without in-rush current or as a power fuse* rated voltage: 125V AC/65V DC* switching capacity (@ AC/DC 125V/65V): 50A* soldering heat resistance (acc. IEC60068): 260°C/10sfusing time limits:* 1xIN: 4h...5s* 10xIN, max.: 10s

Specifications

manufacturer
Manufacturer's name 157000.4GT
Design fast acting
Rated current [mA] 4000
Data Sheet

Unit price

0,299 €

Stock: 1584
Further delivery:
CW 52/2024

Minimum order quantity 1 to 84 units or multiples of 100 plus 0 to 84 .
