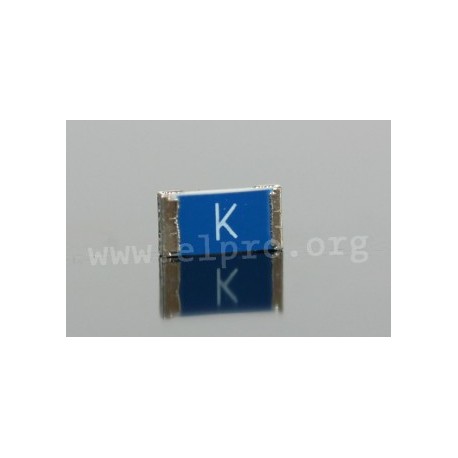

S-SMD FF 1,6 A 1206

SMD fuses 1206

* trip out: very fast acting
* housing: 1206
* by Siba
* ceramic substrate
* with printed fuse element
* high current at minimal dimensions
* rated voltage: 63V
* rated breaking capacity: (@DC 63V): 50A
fusing time limits at 250mA...375mA:
* 1xIN, min.: 1h
* 2xIN, max.: 5s
* 3xIN, max.: 0.2s
fusing time limits at 500mA...5A:
* 1,25xIN, max.: 1h
* 2xIN, max.: 5s
* 10xIN, max.: 1ms
* dimensions (LxWxT): 3.2x1.6x0.55mm: W1=75% von W, T1/T2=0.5mm
S-SMD FF 1,6 A 1206

S-SMD FF 1,6 A 1206

27290 S-SMD FF 1,6 A 1206 154000.1,6 GT-1K 154000.1,6 GT-1K SMD fuses 1206. * trip out: very fast acting * housing: 1206* by Siba* ceramic substrate* with printed fuse element* high current at minimal dimensions* rated voltage: 63V* rated breaking capacity: (@DC 63V): 50Afusing time limits at 250mA...375mA:* 1xIN, min.: 1h* 2xIN, max.: 5s* 3xIN, max.: 0.2sfusing time limits at 500mA...5A:* 1,25xIN, max.: 1h* 2xIN, max.: 5s* 10xIN, max.: 1ms* dimensions (LxWxT): 3.2x1.6x0.55mm: W1=75% von W, T1/T2=0.5mm

Specifications

manufacturer
Manufacturer's name 154000.1,6 GT-1K
Design very fast acting
Rated current [mA] 1600
Data Sheet

Unit price

1,04 €

Stock: 1000
Further delivery:
CW 10/2025

Minimum order quantity 100 units or
multiples of 100.
