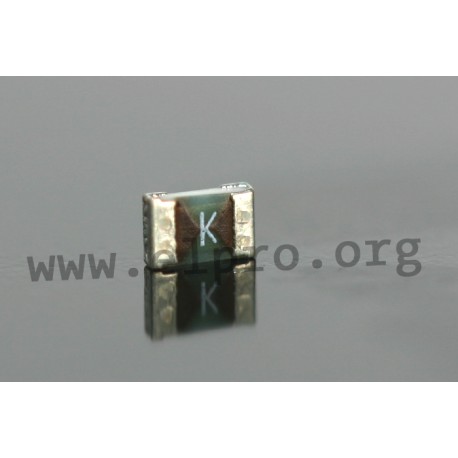

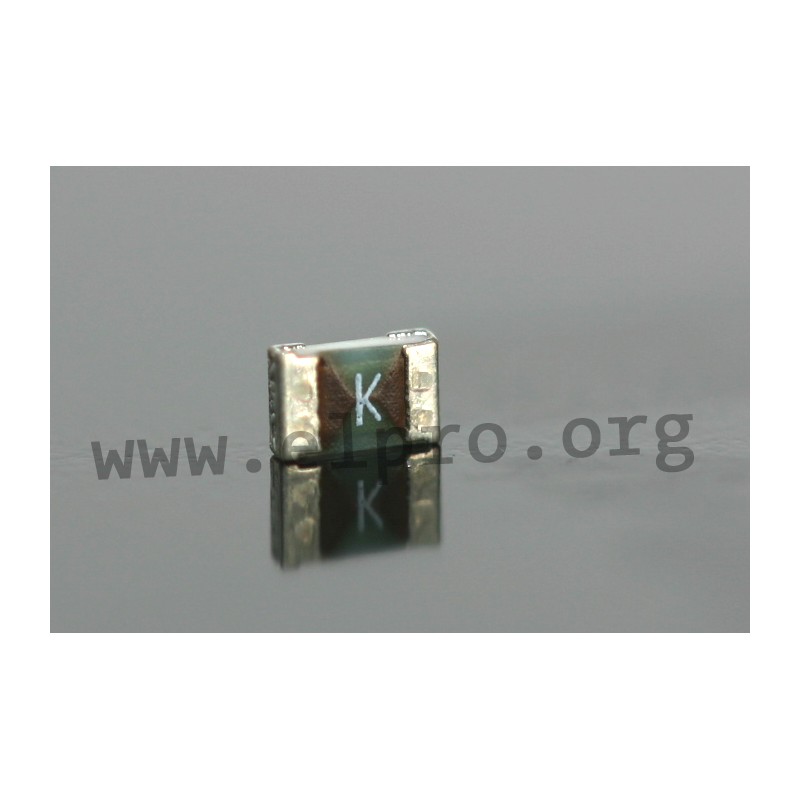

S-SMD FF 500 mA 0803

SMD fuses 0805

* trip out: very fast acting
* housing: 0803
* by Siba
* ceramic substrate
* printed fuse element
* high current at minimal dimensions
* rated voltage: 32V
* rated breaking capacity(@DC 32V): 50A
fusing time limitst:
* 1.25xIN, min.: 1h
* 2xIN, max.: 5s
* 10xIN, max.: 1ms

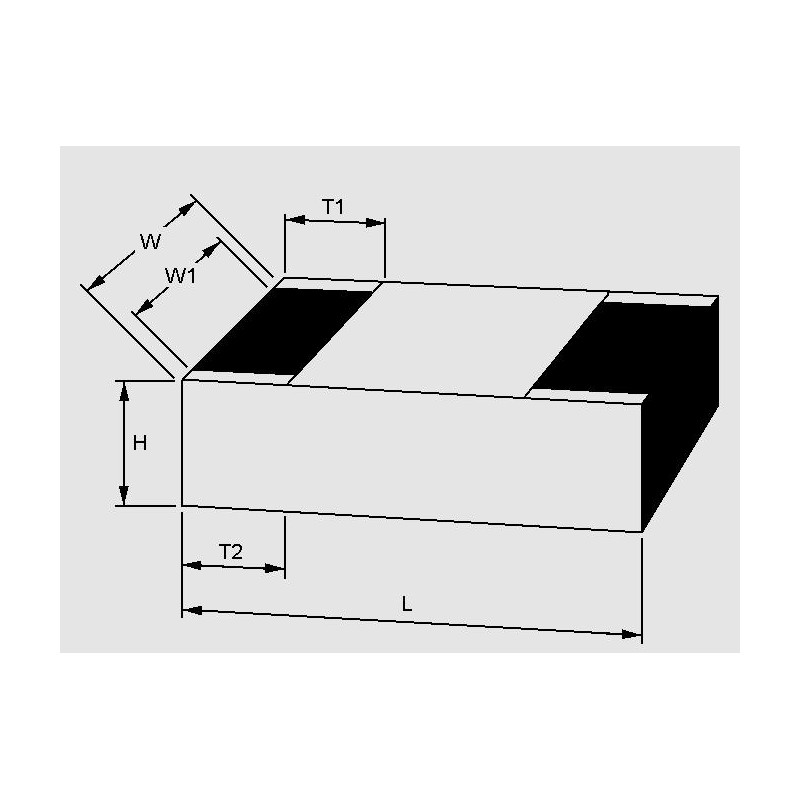

* dimensions (LxWxT): 2x1.25x0.45mm: W1=75% von W, T1/T2=0.4mm
S-SMD FF 500 mA 0803

S-SMD FF 500 mA 0803

27287 S-SMD FF 500 mA 0803 S-SMD FF 500 mA 0803 SMD fuses 0805. * trip out: very fast acting* housing: 0803* by Siba* ceramic substrate* printed fuse element* high current at minimal dimensions* rated voltage: 32V* rated breaking capacity(@DC 32V): 50Afusing time limitst:* 1.25xIN, min.: 1h* 2xIN, max.: 5s* 10xIN, max.: 1ms* dimensions (LxWxT): 2x1.25x0.45mm: W1=75% von W, T1/T2=0.4mm

Discontinued items. Only remainder of stock available.

Specifications

Design very fast acting
Rated current [mA] 500
Data Sheet

Unit price

0,24 €

Stock: 50

Minimum order quantity 10 units or
multiples of 10.
