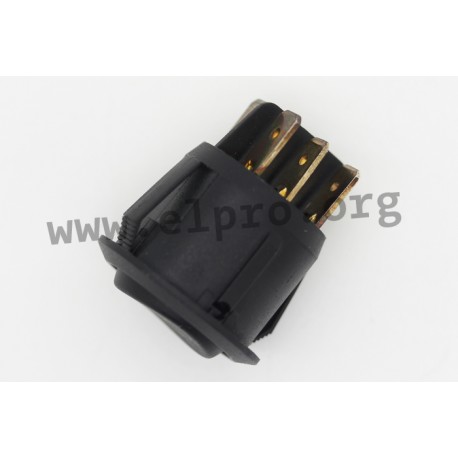

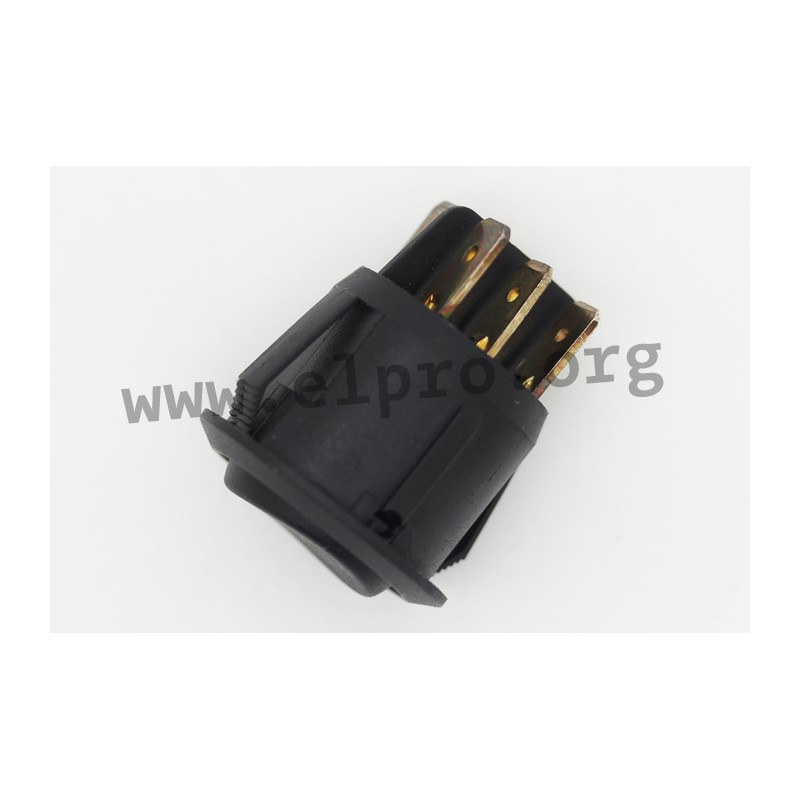

WNX 45

for Ø20.2mm panel cutout, 2-pole version

* operating voltage max.: 250V AC
* switching current, max.: 10A/250V AC
* switching current at inductive load, max.: 4A
* insulation resistance (500V DC): >100MΩ
* materials
shell and rocker: nylon 6.6/UL94V2
illuminated rocker: polycarbonate
terminals: silver-plated
* connector: 4.8x0.8mm
WNX 45

WNX 45

13396 WNX 45 R13-244D-02BB R13-244D-02BB for Ø20.2mm panel cutout, 2-pole version. * operating voltage max.: 250V AC* switching current, max.: 10A/250V AC* switching current at inductive load, max.: 4A* insulation resistance (500V DC): >100MΩ* materialsshell and rocker: nylon 6.6/UL94V2illuminated rocker: polycarbonateterminals: silver-plated* connector: 4.8x0.8mm

Specifications

manufacturer
Manufacturer's name R13-244D-02BB
Switch positions 2x ON-OFF-ON
Case colour black
Rocker black
Illuminated -
Rocker imprint -
Switching current [A] 10
Panel cut-out [mm] Ø 20,2

Unit price

1,15 €

Stock: 0
Next incoming goods:
CW 15/2025
1000 units

Further delivery:
CW 16/2025

Minimum order quantity 10 units or
multiples of 10.
