> Passive elements>Switches/keys>Rocker switch>Shin Chin rocker switches, round, IP65, for Ø20,2mm panel cut-out, 1-pole, R13-112 series>R13-112B8W-02BG0A-L1

Manufacturers

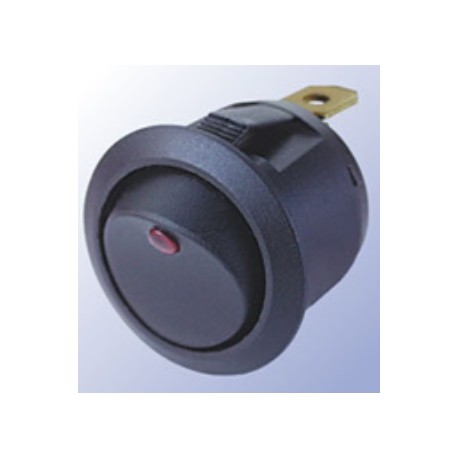

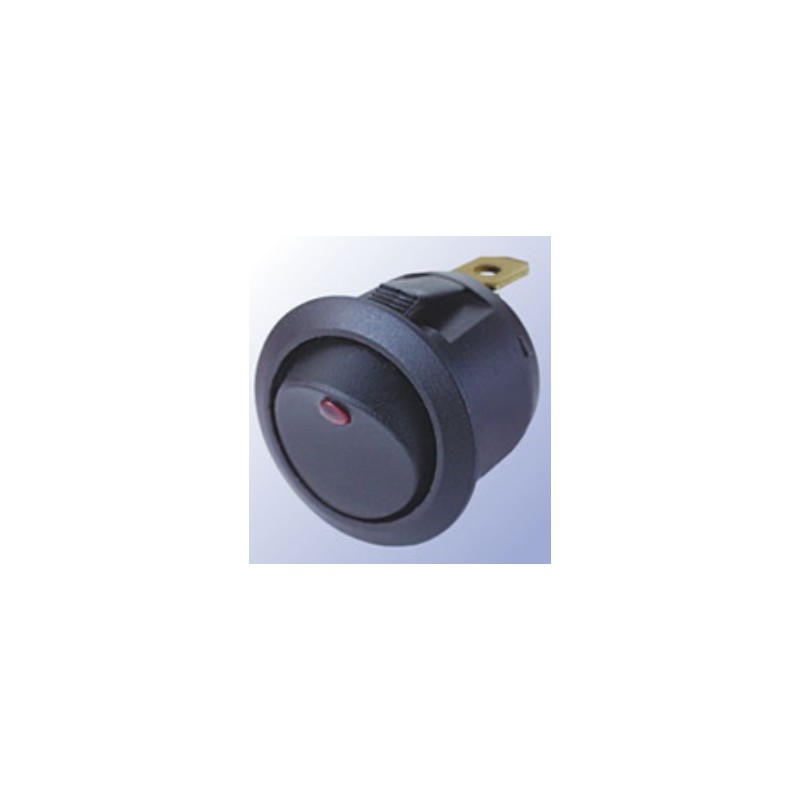

R13-112B8W-02BG0A-L1

for Ø20,2mm panel cut-out series R13-112

* operating voltage, max.: 12V/250V AC
* switching current, max.: 10A (4)/250V AC
* IP65
* ambient temperature, max.: 85°C
* insulation resistance (500V DC): 100MΩ
* material shell and rocker: nylon 6.6/UL94-V2
* material illuminated rocker: polycarbonate
* terminals: silver-plated
* connector: 4,8x0,8mm

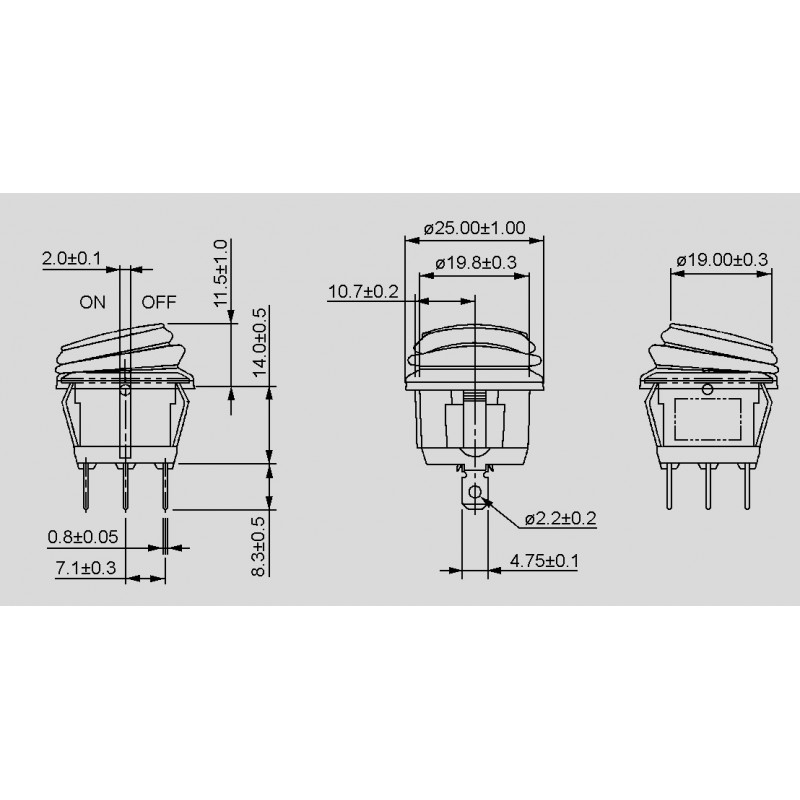

dimensions

R13-112B8W-02BG0A-L1

39528 R13-112B8W-02BG0A-L1 R13-112B8W-02BG0A-L1 for Ø20,2mm panel cut-out series R13-112. * operating voltage, max.: 12V/250V AC* switching current, max.: 10A (4)/250V AC* IP65* ambient temperature, max.: 85°C* insulation resistance (500V DC): 100MΩ* material shell and rocker: nylon 6.6/UL94-V2* material illuminated rocker: polycarbonate* terminals: silver-plated* connector: 4,8x0,8mm

Specifications

manufacturer
Manufacturer's name R13-112B8W-0...
Switch positions SPST
Rocker imprint -
Rocker green
Casing design black
Illumination 12V
Switching current [A] 10
Panel cut-out [mm] Ø 20,2
Data Sheet

Unit price

1,89 €

Stock: 200
Further delivery:
CW 19/2025

Minimum order quantity 10 units or
multiples of 10.
