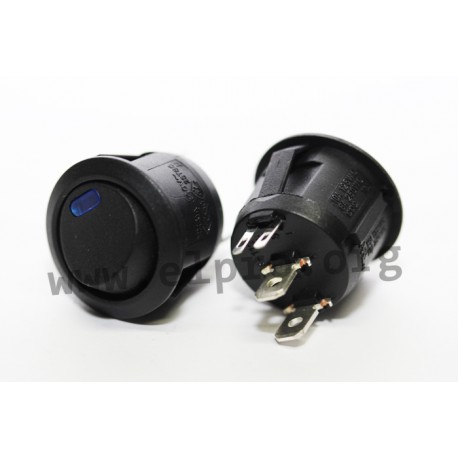

WNX 41

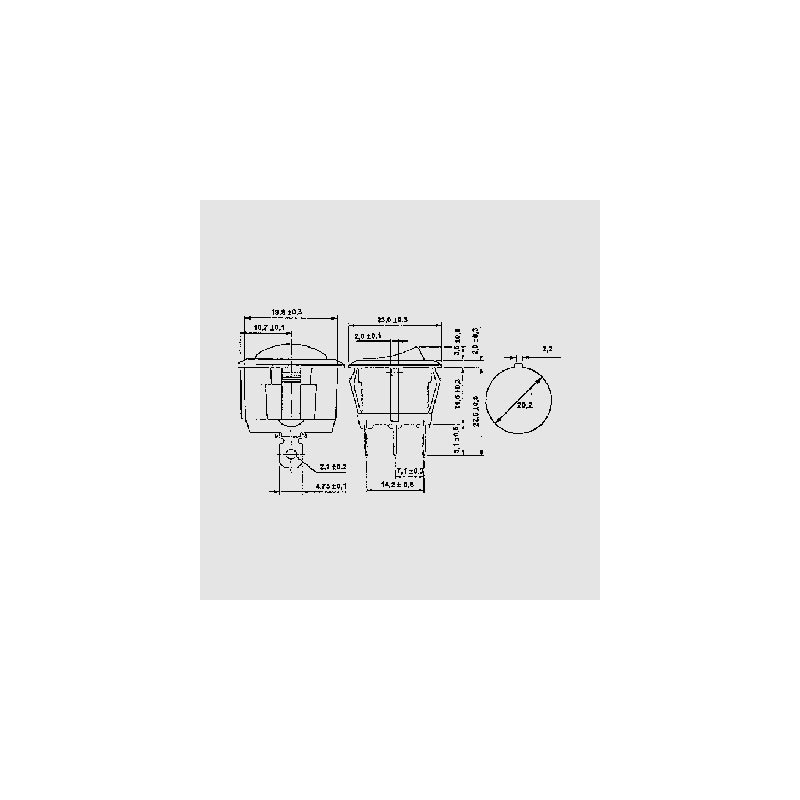

for Ø20.2mm panel cutout

* operating voltage, max.: 250V AC
* switching current, max.: 10A (4)/250V AC
* insulation resistance (500V DC): 100MΩ
* LED Voltage range
red/green: 2...2.2V DC
blue: 3.6...4V DC
* materials
shell and rocker: nylon 6.6/UL94-V2
illuminated rocker: polycarbonate
terminals: silver-plated
* connector: 4.8x0.8mm
WNX 41

WNX 41

13392 WNX 41 R13-112L-02-BBO R13-112L-02-BBO for Ø20.2mm panel cutout. * operating voltage, max.: 250V AC* switching current, max.: 10A (4)/250V AC* insulation resistance (500V DC): 100MΩ* LED Voltage rangered/green: 2...2.2V DCblue: 3.6...4V DC* materialsshell and rocker: nylon 6.6/UL94-V2illuminated rocker: polycarbonateterminals: silver-plated* connector: 4.8x0.8mm

Specifications

manufacturer
Manufacturer's name R13-112L-02-BBO
Switch positions ON - OFF
Case colour black
Rocker black
Illuminated LED blau
Rocker imprint -
Switching current [A] 6
Panel cut-out [mm] Ø 20,2

Unit price

2,79 €

Stock: 200
Next incoming goods:
CW 51/2024
400 units

Further delivery:
CW 24/2025

Minimum order quantity 10 units or
multiples of 10.
