DRH3P60A18

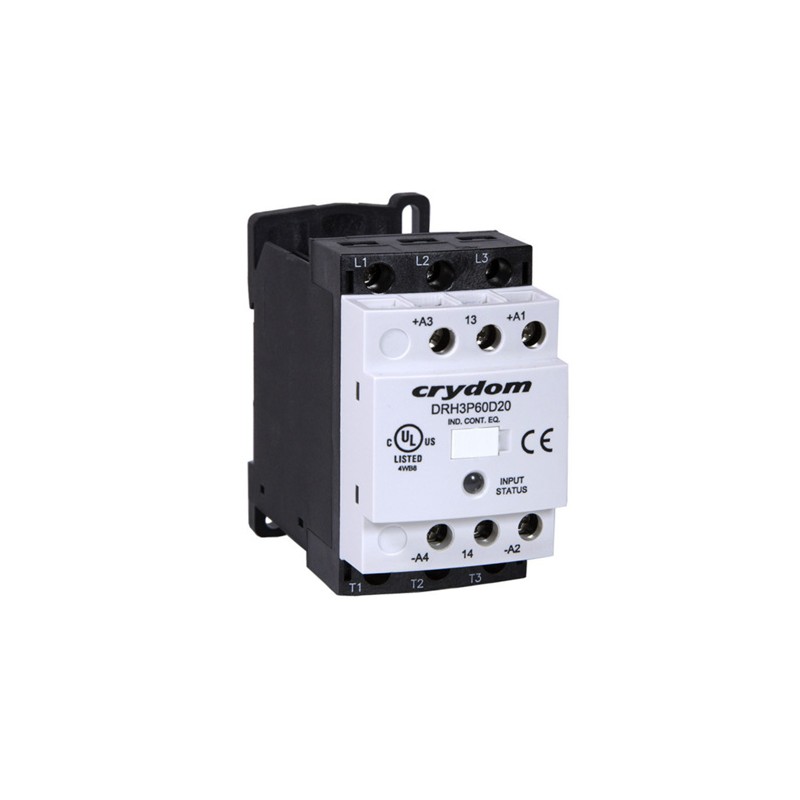

Sensata/Crydom electronic solid state relais series DRH3P60_

These electronic solid state relais are suitable for switching voltage and have a thyristor output. Their housing can be mounted direktly onto the DIN-rail, and they are equipped with zero crossing circuits. We offer the following types of this Sensata/Crydom series: DRH3P60A18 and DRH3P60D20.

  • isolation voltage: 3,75k V
  • operating temperature: -10 to +70°C

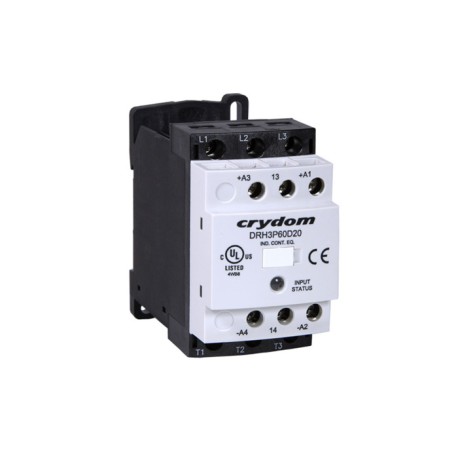

DRH3P60A18, Sensata/Crydom electronic solid state relais for switching voltage, thyristor output, DRH3P60_ series

DRH3P60A18

247999 DRH3P60A18 DRH3P60A18 Sensata/Crydom electronic solid state relais series DRH3P60_. These electronic solid state relais are suitable for switching voltage and have a thyristor output. Their housing can be mounted direktly onto the DIN-rail, and they are equipped with zero crossing circuits. We offer the following types of this Sensata/Crydom series: DRH3P60A18 and DRH3P60D20. isolation voltage: 3,75k V operating temperature: -10 to +70°C

Specifications

manufacturer
Manufacturer's name DRH3P60A18
Max. off-state output voltage [V] 1200
Control voltage [V] 90...280
Load voltage [V] 48...600
Data Sheet

Unit price

190,89 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
