SLT96-12VLC-UN

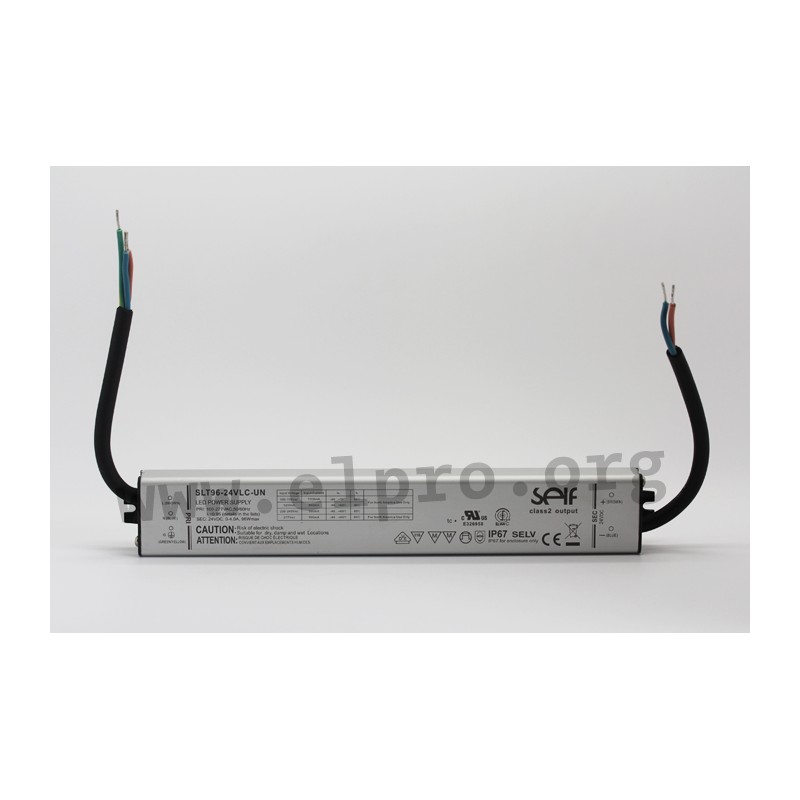

Self LED driver series SLT96-VLC-UN

LED drivers in a metal housing (IP67) with 96W, a constant voltage and protection class I. These devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLT96-12VLC-UN and SLT96-24VLC-UN.

  • single output
  • output: 96W
  • input voltage: 100 to 277V AC
  • maximal input inrush current: 75A
  • no-load power: <0,5W
  • service life: 100.000h (Tc = 75°C)
  • operating temperature: -40 to +60°C
  • dimensions: 262x40x23mm
  • weight: 500g

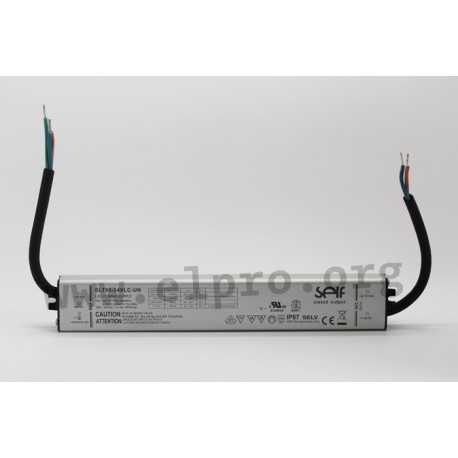

Self SLT96-_VLC-UN series

SLT96-12VLC-UN

110876 SLT96-12VLC-UN SLT96-12VLC-UN Self LED driver series SLT96-VLC-UN. LED drivers in a metal housing (IP67) with 96W, a constant voltage and protection class I. These devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with&nbsp;EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self&nbsp;series:&nbsp;SLT96-12VLC-UN and SLT96-24VLC-UN. single output output: 96W input voltage: 100 to 277V AC maximal input inrush current: 75A no-load power: &lt;0,5W service life: 100.000h (Tc&nbsp;= 75&deg;C) operating temperature: -40 to +60&deg;C dimensions: 262x40x23mm weight: 500g

Specifications

manufacturer
Manufacturer's name SLT96-12VLC-UN
Output voltage [V] 12
Efficiency [%] 92
Output current [A] 0...8
Output power [W] 96
Ripple [mVp-p] 500
Data Sheet

Unit price

36,99 €

Volume discounts

Quantity Unit price
100 + 33,79 €
50 + 35,29 €

Stock: 258
Further delivery:
CW 16/2025
