SLT80-24VLG-E

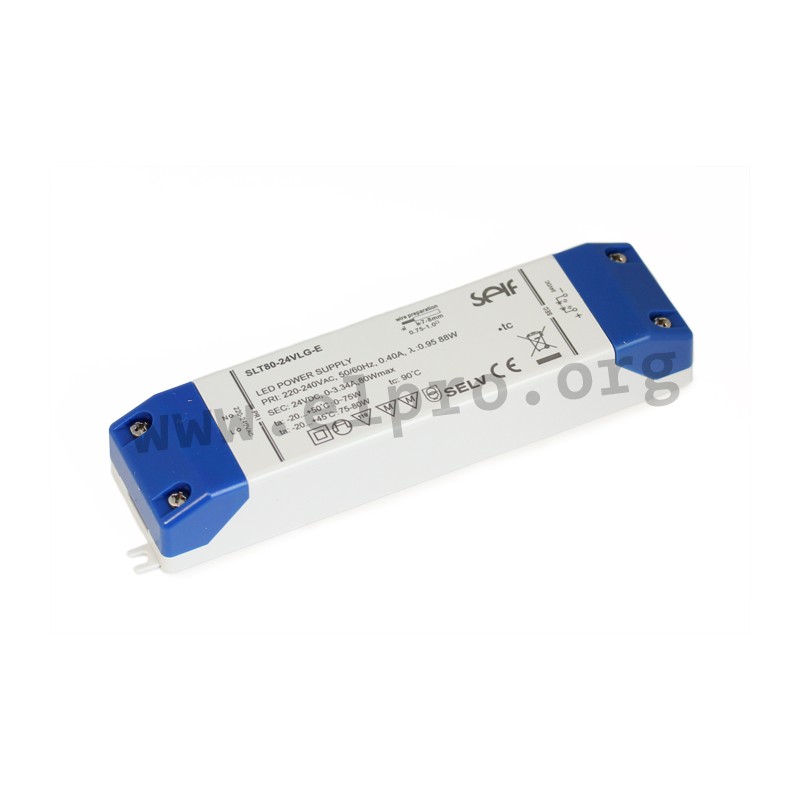

Self LED driver series SLT80-24VLG-E

LED drivers in a plastic housing (IP20) with 80W, a constant voltage, a low no-load power (<0,5W) and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the type SLT80-24VLG-E of this Self series.

  • single output
  • output: 80W
  • input voltage: 198 to 264V AC (50/60Hz), 220 to 240V DC
  • maximal input inrush current: 35A
  • service life: 50.000h (Tc = 40°C)
  • operating temperature: -20 to +40°C
  • dimensions: 181x45x30mm
  • weight: 280g

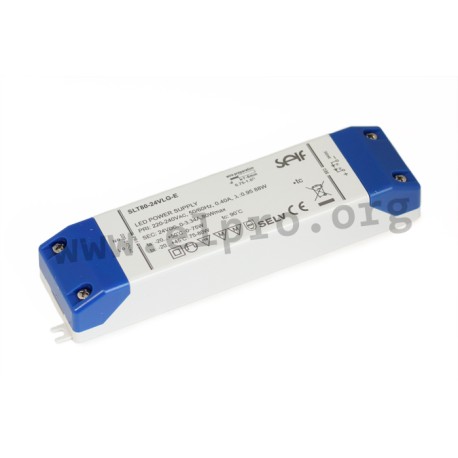

SLT80-24VLG-E, Self LED drivers, 80W, IP20, constant voltage, SLT80-24VLG-E series

SLT80-24VLG-E

242211 SLT80-24VLG-E SLT80-24VLG-E Self LED driver series SLT80-24VLG-E. LED drivers in a plastic housing (IP20) with 80W, a constant voltage, a low no-load power (&lt;0,5W) and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the type SLT80-24VLG-E of this Self series. single output output: 80W input voltage: 198 to 264V AC (50/60Hz), 220 to 240V DC maximal input inrush current: 35A service life: 50.000h (Tc = 40°C) operating temperature: -20 to +40°C dimensions: 181x45x30mm weight: 280g

Specifications

manufacturer
Manufacturer's name SLT80-24VLG-E
Output voltage [V] 24
Efficiency [%] 89
Output current range [A] 0...3,34
Output power [W] 80
Ripple [mVp-p] 600
Data Sheet

Unit price

25,49 €

Volume discounts

Quantity Unit price
100 + 22,39 €
50 + 23,39 €

Stock: 163
Further delivery:
CW 11/2025
