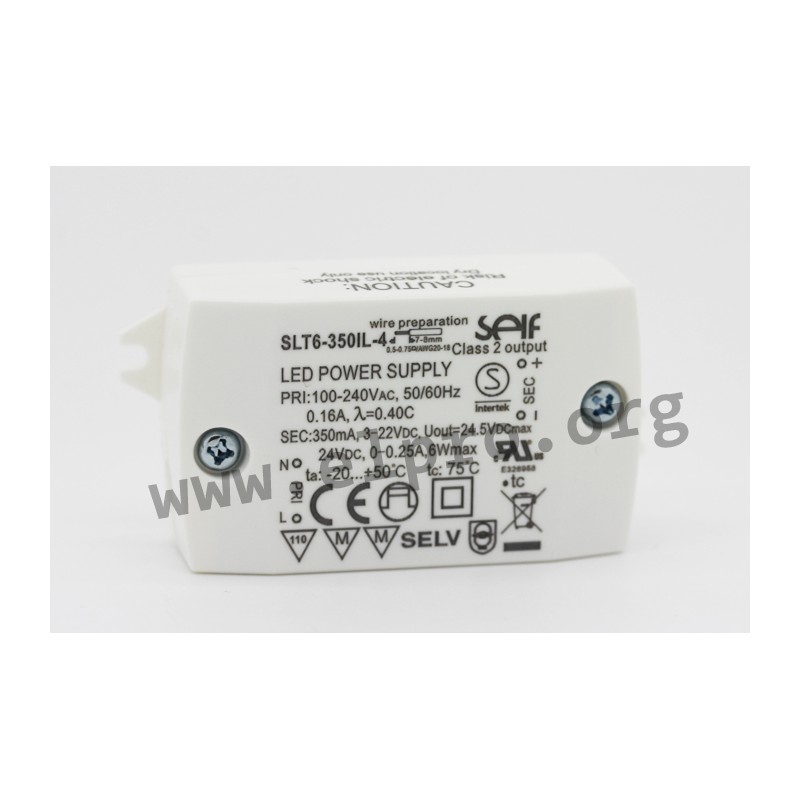

SLT6-350IL-4

Self LED driver series SLT6-IL-4

LED drivers in a plastic housing (IP20) with 6W, protection class II, a constant current and a constant voltage. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overvoltage, overtemperature as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, UL1310 as well as UL8750. We offer the following types of this Self series: SLT6-350IL-4, SLT6-500IL-4 and SLT6-700IL-4.

  • single output
  • output: 6W
  • input voltage: 100 to 240V AC
  • maximal input inrush current: 40A
  • no-load power: <0,3W
  • operating temperature: -20 to +50°C
  • service life: 35.000h (Tc = 75°C)
  • dimensions: 68x35x20mm
  • weight: 37,5g
SLT6-350IL-4

SLT6-350IL-4

111330 SLT6-350IL-4 SLT6-350IL-4 Self LED driver series SLT6-IL-4. LED drivers in a plastic housing (IP20) with 6W, protection class II, a constant current and a constant voltage. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overvoltage, overtemperature as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1, EN61347-2-13, UL1310 as well as UL8750. We offer the following types of this Self series:&nbsp;SLT6-350IL-4, SLT6-500IL-4 and SLT6-700IL-4. single output output: 6W input voltage: 100 to 240V AC maximal input inrush current: 40A no-load power: &lt;0,3W operating temperature: -20 to +50&deg;C service life: 35.000h (Tc&nbsp;= 75&deg;C) dimensions: 68x35x20mm weight: 37,5g

Specifications

manufacturer
Manufacturer's name SLT6-350IL-4
Output voltage [V] 3...22
Ripple [mAp-p] 50
Efficiency [%] 76,5
Output power [W] 6
Output current [mA] 350
Data Sheet

Unit price

7,19 €

Volume discounts

Quantity Unit price
100 + 6,09 €
50 + 6,39 €

Stock: 0
Next incoming goods:
CW 04/2025
572 units

Further delivery:
CW 16/2025
