> Power supplies>Power supplies>Switching power supplies for illumination, LED>Self LED drivers, 30W, IP20, constant voltage, SLT30-VFG series>SLT30-12VFG

Manufacturers

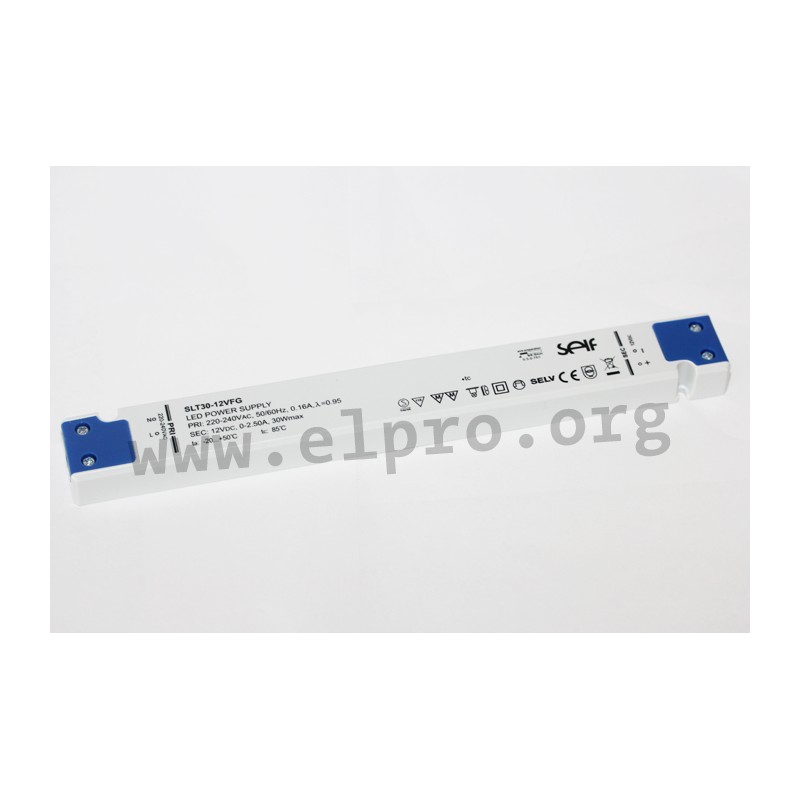

SLT30-12VFG

Self LED driver series SLT30-VFG

Flickerfree LED drivers in a plastic housing (IP20) with 30W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a low no-load power and comply with EN61347-1, EN61347-2-13, EN61000-3-2 as well as EN55015. We offer the following types of this Self series: SLT30-12VFG and SLT30-24VFG.

  • single output
  • output: 30W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 18A
  • no-load power: <0,5W
  • service life: 35.000h (Tc = 85°C)
  • operating temperature: -20 to +40°C
  • dimensions: 246x30x16mm
  • weight SLT30-12VFG: 135g
  • weight SLT30-24VFG: 125g
SLT30-12VFG

SLT30-12VFG

109132 SLT30-12VFG SLT30-12VFG Self LED driver series SLT30-VFG. Flickerfree LED drivers in a plastic housing (IP20) with 30W, a constant voltage and&nbsp;protection class II. These SELV compliant devices&nbsp;are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a low no-load power and comply with&nbsp;EN61347-1, EN61347-2-13, EN61000-3-2 as well as EN55015. We offer the following types of this Self series:&nbsp;SLT30-12VFG and SLT30-24VFG. single output output: 30W input voltage: 220 to 240V AC maximal input inrush current: 18A no-load power: &lt;0,5W service life: 35.000h (Tc = 85&deg;C) operating temperature: -20 to +40&deg;C dimensions: 246x30x16mm weight SLT30-12VFG: 135g weight SLT30-24VFG: 125g

Specifications

manufacturer
Manufacturer's name SLT30-12VFG
Output voltage [V] 12
Efficiency [%] 83,5
Output current [A] 0...1,25
Output power [W] 30
Ripple [mVp-p] 90
Data Sheet

Unit price

15,19 €

Volume discounts

Quantity Unit price
100 + 12,89 €
50 + 13,49 €

Stock: 154
Next incoming goods:
CW 48/2024
450 units

Further delivery:
CW 11/2025
