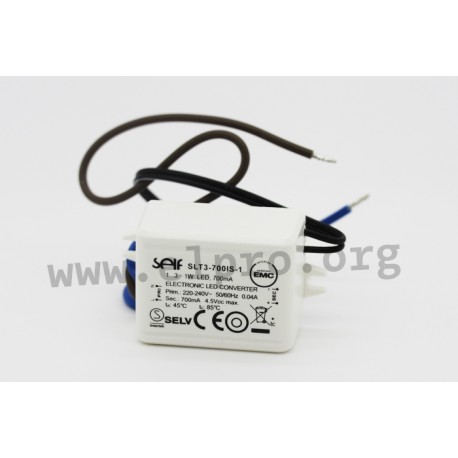

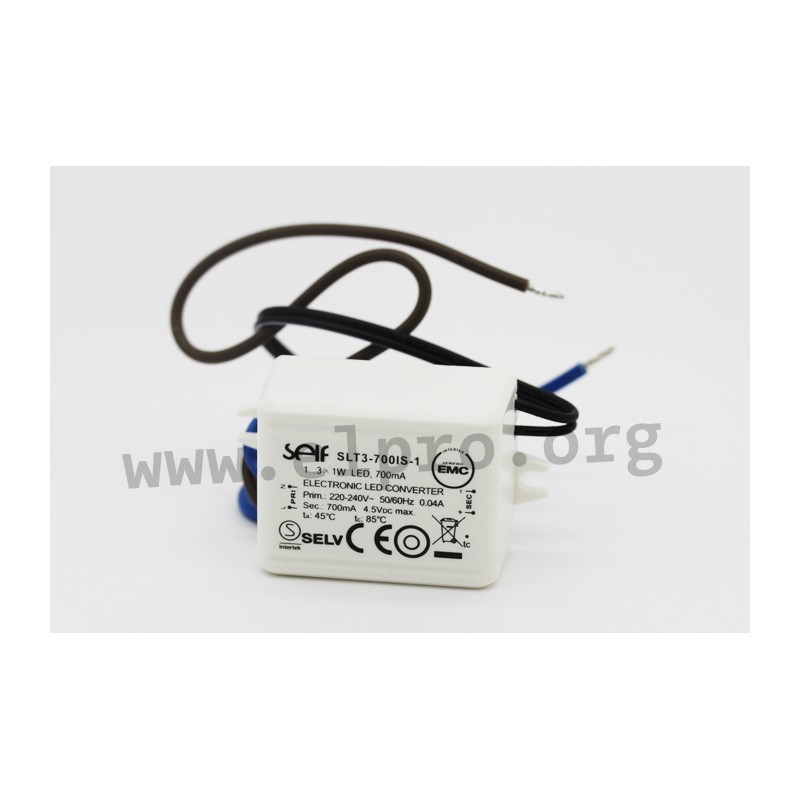

SLT3-700IS-1

Self LED driver series SLT3-IS-1

LED drivers in a plastic housing (IP20) with 3W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN55015, EN61347-2-13 as well as EN61347-1. We offer the following types of this Self series: SLT3-350IS-1 and SLT3-700IS-1.

  • single output
  • output: 3W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 18A
  • no-load power: <0,5W
  • service life SLT3-350IS-1: 30.000h (Tc = 70°C)
  • service life SLT3-700IS-1: 30.000h (Tc = 85°C)
  • operating temperature: -20 to +45°C
  • dimensions: 50x30x20mm
  • weight: 30g
SLT3-700IS-1

SLT3-700IS-1

109144 SLT3-700IS-1 SLT3-700IS-1 Self LED driver series SLT3-IS-1. LED drivers in a plastic housing (IP20) with 3W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with&nbsp;EN55015, EN61347-2-13 as well as EN61347-1. We offer the following types of this Self series:&nbsp;SLT3-350IS-1 and SLT3-700IS-1. single output output: 3W input voltage: 220 to 240V AC maximal input inrush current: 18A no-load power: &lt;0,5W service life SLT3-350IS-1: 30.000h (Tc = 70&deg;C) service life SLT3-700IS-1: 30.000h (Tc = 85&deg;C) operating temperature: -20 to +45&deg;C dimensions: 50x30x20mm weight: 30g

Specifications

manufacturer
Manufacturer's name SLT3-700IS-1
Output voltage [V] 2...4,2
Ripple [mAp-p] 200
Efficiency [%] 67
Output power [W] 3
Output current [mA] 700
Data Sheet
