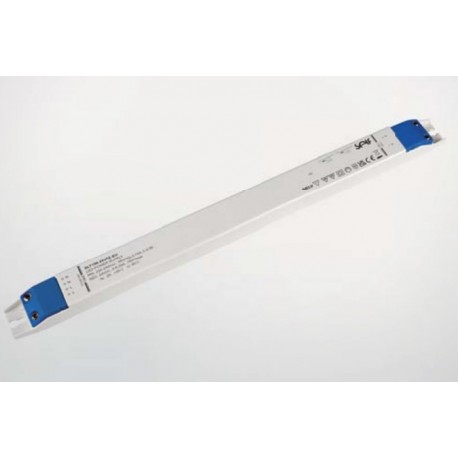

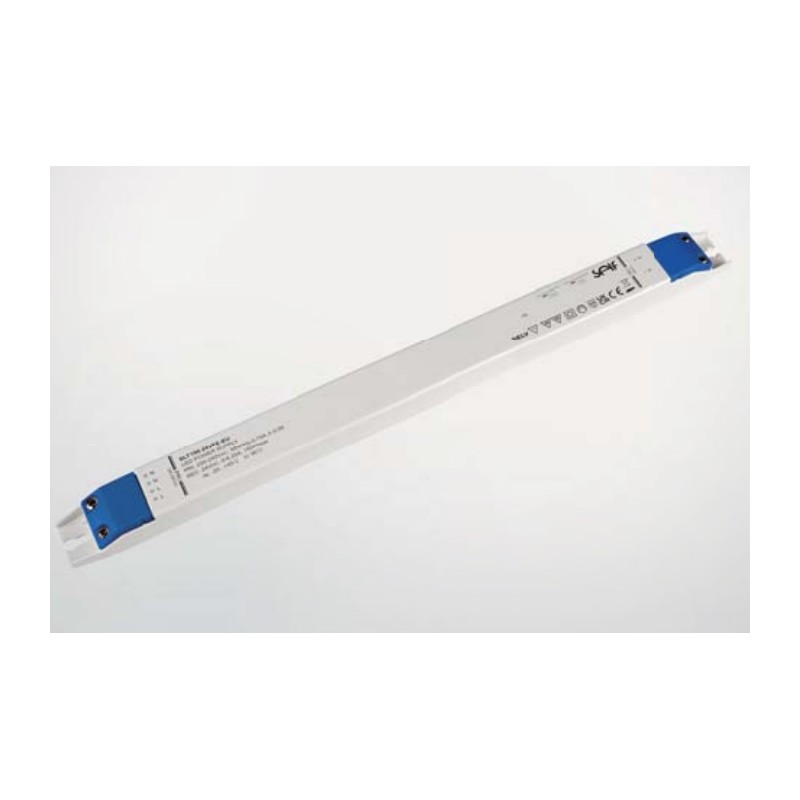

SLT200-48VFE-EU

Self LED driver series SLT200-VFE-EU

LED drivers in a plastic housing (IP20) with 200W, a constant voltage, protection class II and a low height (22mm). These SELV compliant devices have a low no-load power (<0,5W) and are protected against overload as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLT200-24VFE-EU and SLT200-48VFE-EU.

  • single output
  • output: 200W
  • input voltage: 198 to 264V AC (50/60Hz), 220 to 280V DC
  • maximal input inrush current: 80A
  • service life: 50.000h
  • operating temperature: -20 to +45°C
  • dimensions: 402x30x22mm
  • weight: 400g
SLT200-48VFE-EU, Self LED drivers, 200W, IP20, constant voltage, SLT200-VFE-EU series

SLT200-48VFE-EU

242210 SLT200-48VFE-EU SLT200-48VFE-EU Self LED driver series SLT200-VFE-EU. LED drivers in a plastic housing (IP20) with 200W, a constant voltage, protection class II and a low height (22mm). These SELV compliant devices have a low no-load power (&lt;0,5W) and are protected against overload as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLT200-24VFE-EU and SLT200-48VFE-EU. single output output: 200W input voltage: 198 to 264V AC (50/60Hz), 220 to 280V DC maximal input inrush current: 80A service life: 50.000h operating temperature: -20 to +45°C dimensions: 402x30x22mm weight: 400g

Specifications

manufacturer
Manufacturer's name SLT200-48VFE-EU
Output voltage [V] 48
Efficiency [%] 93,5
Output current range [A] 0...4,16
Output power [W] 200
Ripple [mVp-p] 600
Data Sheet

Unit price

46,99 €

Volume discounts

Quantity Unit price
100 + 42,89 €
50 + 44,79 €

Stock: 28
Next incoming goods:
CW 04/2025
10 units

Further delivery:
CW 16/2025
